YASKAWA V1000 Series Installation & Start-Up Manual

4.4 Basic Parameter Adjustments
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 139
Start-Up Programming & Operation
4

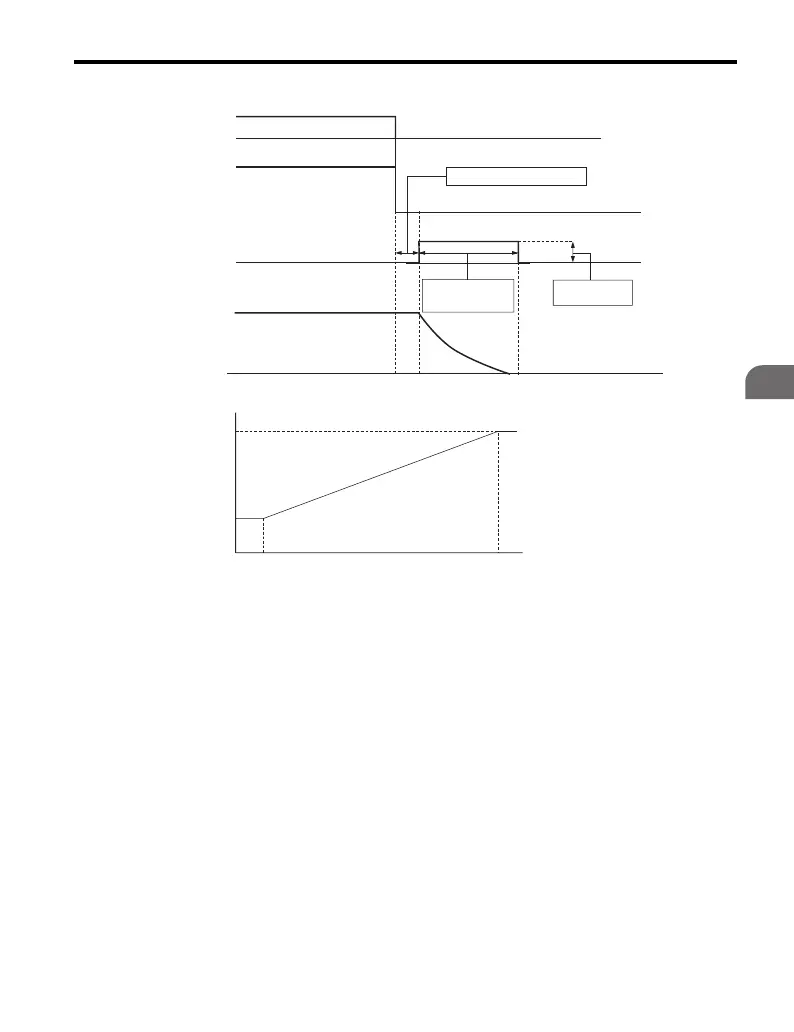

Figure 4.19
Figure 4.19 DC Injection Braking to Stop
Note: Extend the baseblock time (L2-03) if overcurrent (OC) occurs when the stop
command is input.
Run Command
Output Frequency
ON OFF
DC Injection Braking
Time at Stop
(b2-04)
Minimum Baseblock Time ( L2-03)
DC Braking
Current (b2-02)
DC Injection Braking
Motor Speed
Output frequency when
stop command was entered
100%
(Max Output Frequency)
10%
DC Injection Braking Time
b2-0410
b2-04

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
