4.4 Basic Parameter Adjustments
140 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
■ Coast to Stop with Timer (b1-03 = 3)
When b1-03 = 3, a stop command will interrupt drive output and the motor will
coast to stop. The drive will not accept the next run command until time t has
passed. Time t is determined by the output frequency at the moment the stop
command was entered and the deceleration time set to the drive according to
Figure 4.20.

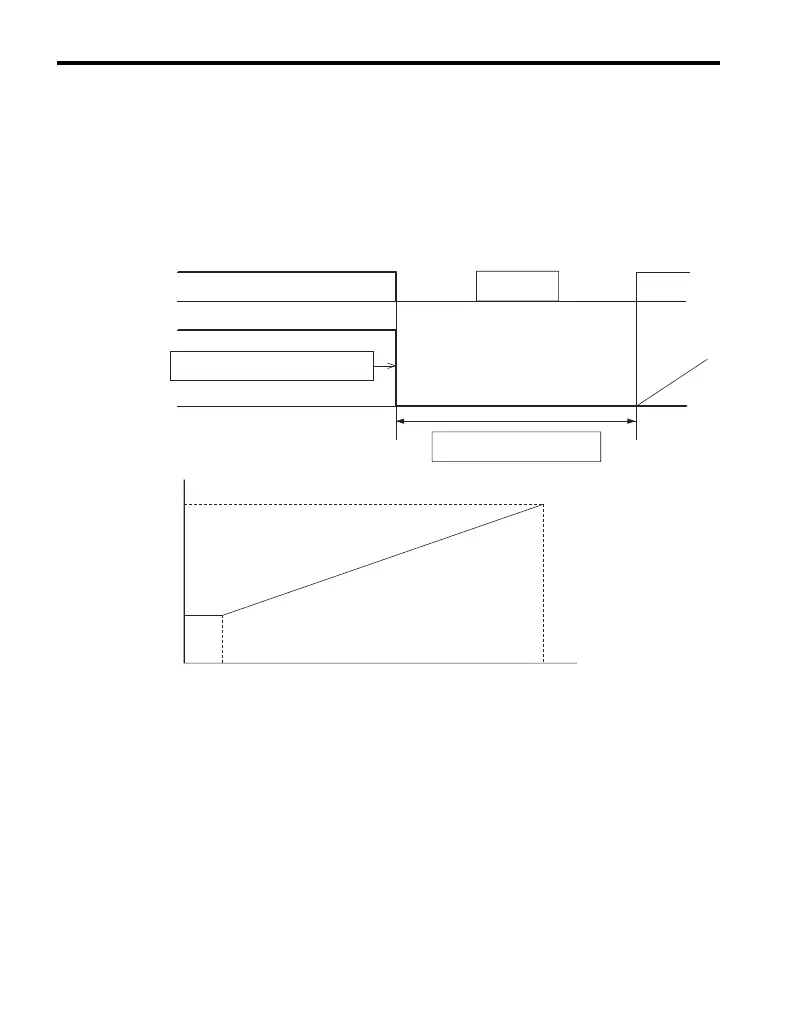

Figure 4. 20
Figure 4.20 Coast to Stop with Timer
Drive output voltage interrupted
Operation Wait Time t
Run Command
Output Frequency
ON ON ONOFF OFF
Minimum Output Frequency
100㧑
(Max Output Frequency)
Output frequency when
stop command was entered
Operation wait time t
Deceleration time
(C1-02, etc.)
Minimum
Baseblock Time
㧔L2-03㧕

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
