4.5 Test Run
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 171
Start-Up Programming &
Operation
4
4. Ensure the motor is rotating in the correct direction and no faults or
alarms occur.
⇒
5.
s
Press to increase the frequency reference. Increase the
frequency in 10 Hz increments verifying smooth operation results at
all speeds. For each frequency monitor the drive output current
(U1-03) through the LED operator to confirm the current is well
below the motor rated current.
Example: 6 Hz → 50 Hz/60 Hz
Note: Refer to Auto-Tuning Errors on page 201 for help with
errors that occur while Auto-Tuning the drive.
6.
The drive should operate normally.
Press to stop the motor.
RUN flashes until the motor comes to a complete stop.
⇒

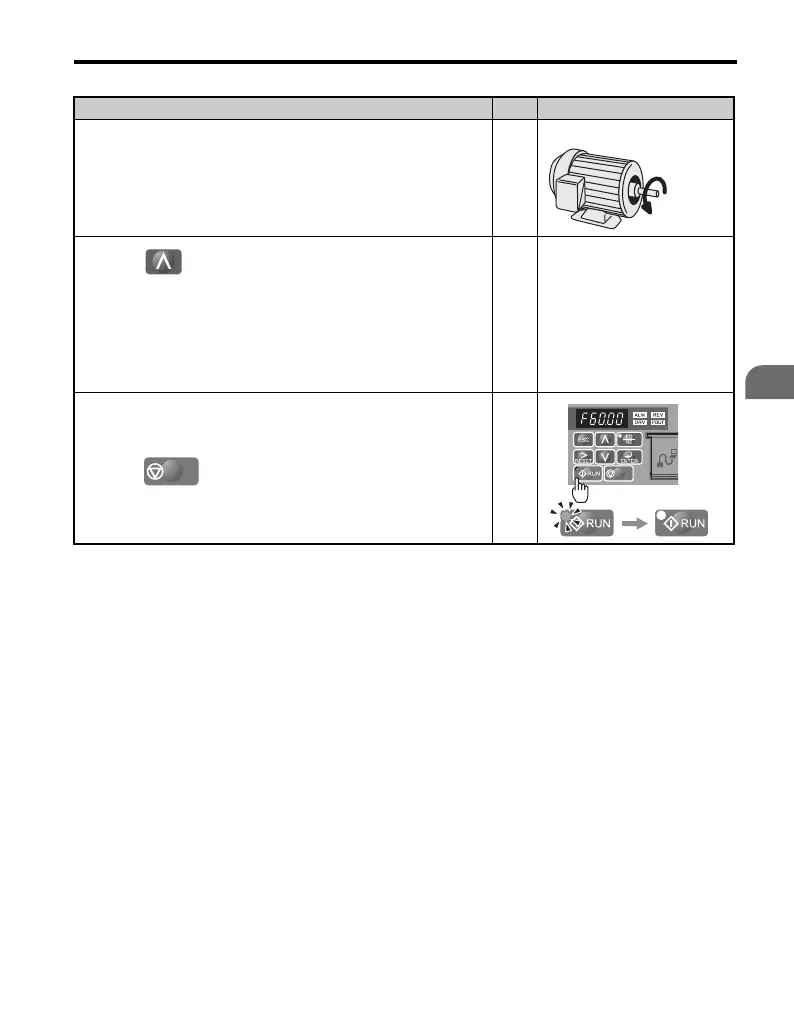

Step Display/Result
Motor
Forward
STOP
STOP
