5.4 Drive Alarms, Faults, and Errors
200 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
■ Operation Errors
If parameter settings conflict with each another or do not match hardware settings
(such as with an option card), operation errors will result. Table 5. 7 illustrates the
LED operator display for operation errors.

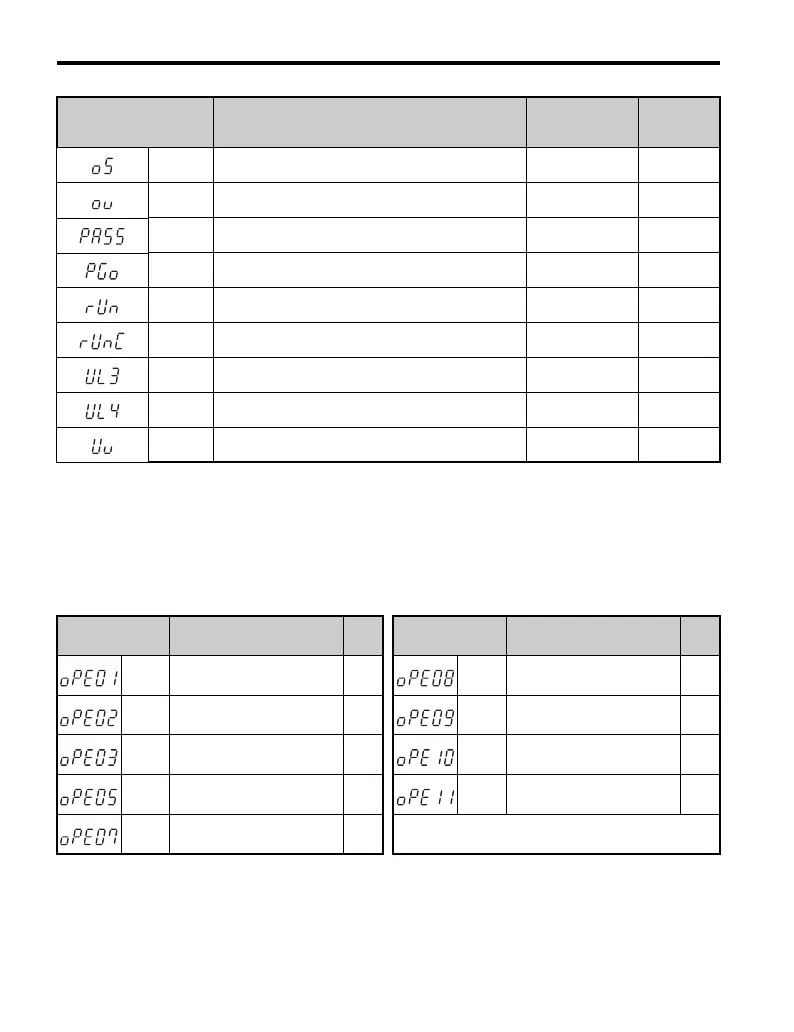

Table 5.7 Operation Error Displays
oS Overspeed (for Simple V/f with PG) YES 233
ov Overvoltage YES 233
PASS MEMOBUS/Modbus Test Mode Complete No output 234
PGo PG Disconnect (for Simple V/f with PG) YES 234
rUn During Run 2, Motor Switch Command Input YES 234
rUnC Run Command Reset YES 234
UL3 Undertorque 1 YES 234
UL4 Undertorque 2 YES 235
Uv Undervoltage YES 235
LED Operator
Display
Name Page
LED Operator
Display
Name Page
oPE01 Drive kVA Setting Error 236 oPE08 Parameter Selection Error 238
oPE02
Parameter Setting Range
Error
236 oPE09 PID Control Selection Error 239
oPE03
Multi-Function Input Setting
Error
236 oPE10 V/f Data Setting Error 239
oPE05
Run Command Selection
Error
238 oPE11
Carrier Frequency Setting
Error
239
oPE07
Multi-Function Analog Input
Selection Error
238
LED Operator Display Name
Minor Fault
Output
(H2- = 10)
Page

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
