YASKAWA V1000 Series

7.4 Installing Peripheral Devices
304 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
Three-Phase 200 V / 400 V Class
Figure 7.11

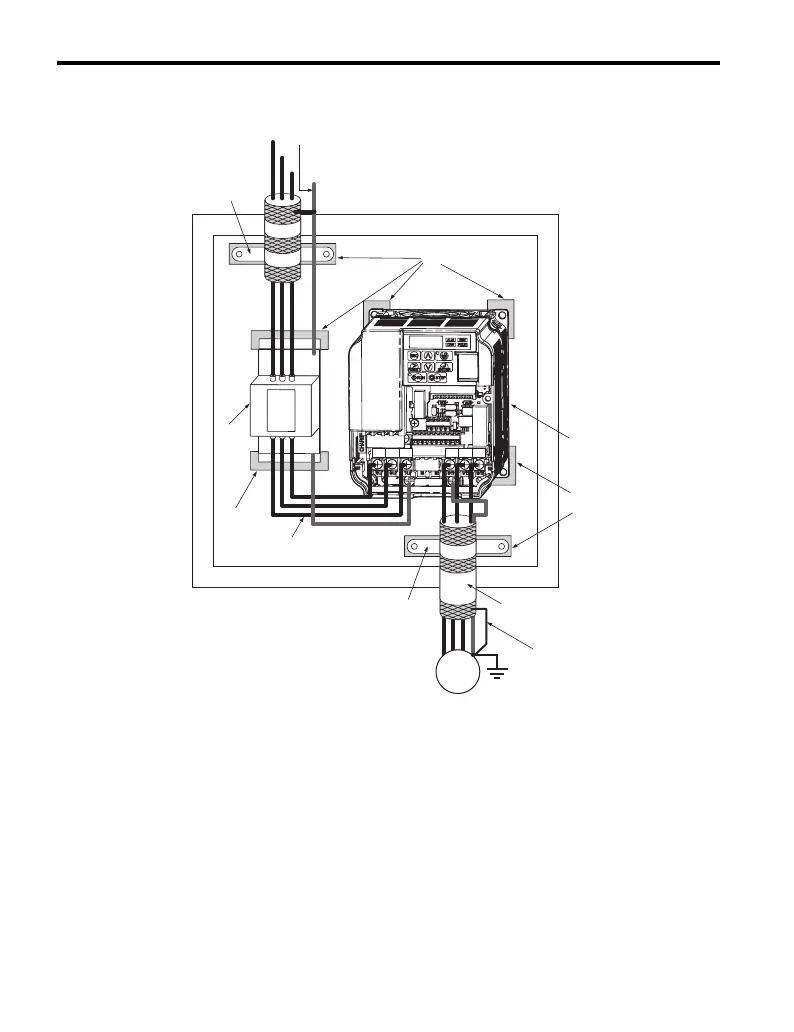

Figure 7.11 EMC Filter and Drive Installation for CE Compliance
(Three-Phase 200 V / 400 V Class)
A – Ground the cable shield F – Motor cable (braided shield
cable, max. 20 m)
B – Enclosure panel G – Motor
C – Metal plate H – Cable clamp
D – Grounding surface (remove
any paint or sealant)
I – Max. distance between drive
and noise filter XX cm
E – Drive J – EMC noise filter
C
D
N
J
F
L
K
E
M
B
G
I
A
H
L3
L3
L2
L2
L1
L1
L3 L2 L1
E
L3
L2
L1
PE
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3
