YASKAWA V1000 Series Installation & Start-Up Manual

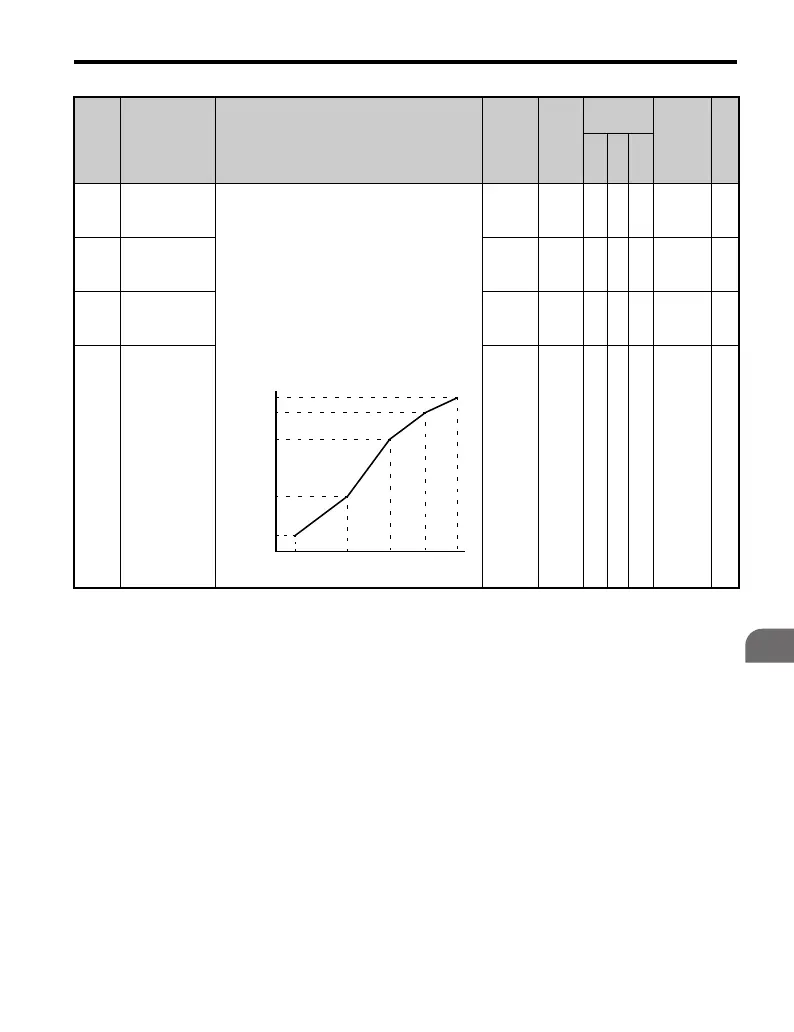

B.2 Parameter Table
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 357
Parameter List
B
E1-04
Max Output
Frequency
(FMAX)
These parameters are only applicable when
V/f Pattern Selection is set to Custom
(E1-03 = F). To set linear V/f characteristics,
set the same values for E1-07 and E1-09. In
this case, the setting for E1-08 will be
disregarded. Ensure that the four frequencies
are set according to these rules or OPE10
fault will occur:
E1-04(FMAX) ≥ E1-06(FA)
> E1-07 (FB) ≥ E1-09 (FMIN)
40.0 to
400.0
<21>
60 Hz
<1>
SSS 303 144
E1-05
Max Voltage
(VMAX)
0.0 to
255.0
<24>
200 V
<1>
SSS 304 144
E1-06
Base
Frequency
(FA)
0.0 to
400.0
<21>
60 Hz
<1>
SSS 305 144
E1-07
Mid Output
Frequency
(FB)
0.0 to
400.0
3.0 Hz
<1>
AAA 306 —
No. Name Description Range Def.
Control
Mode
Addr.
Hex
Pg.
V/f
O
L
V
P
M
VACrms Out(V)
Frequency (Hz)
E1-09 E1-07 E1-06 E1-11 E1-04
E1-05
E1-12
E1-13
E1-08
E1-10

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
