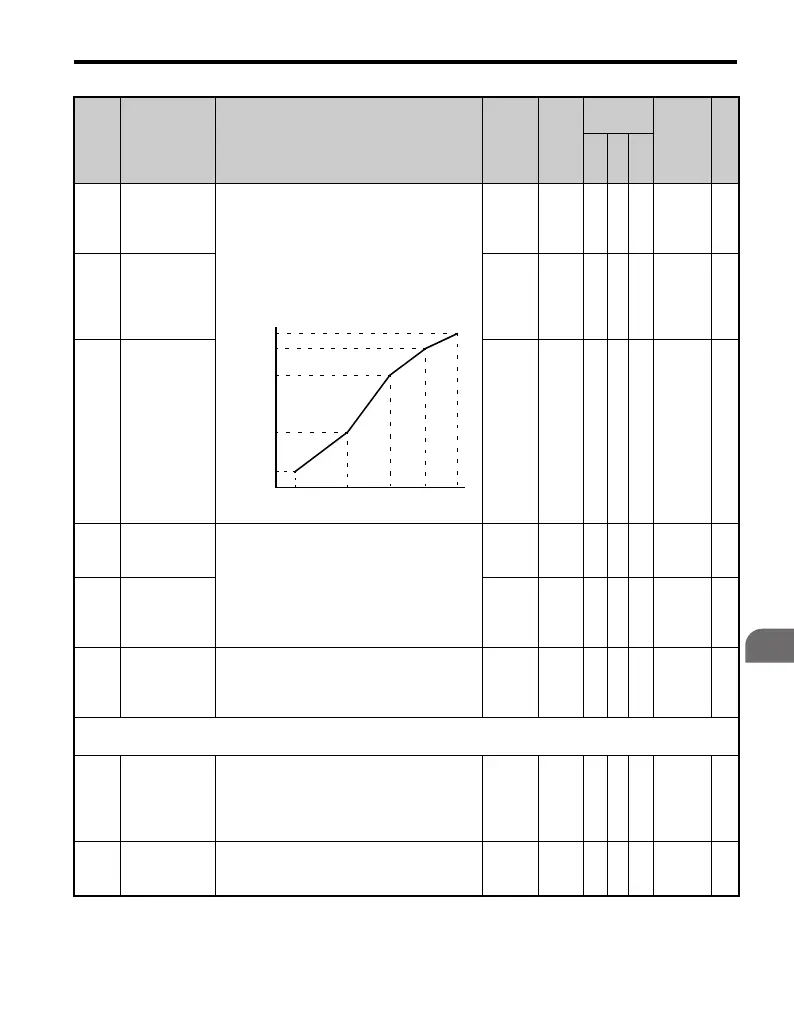

B.2 Parameter Table
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 361
Parameter List
B
E3-08
Motor 2 Mid
Output
Frequency
Voltage (VC)
To set linear V/f characteristics, set the same
values for E3-07 and E3-09. In this case, the
setting for E3-08 will be disregarded. Ensure
that the four frequencies are set according to
these rules or OPE10 fault will occur:
E3-04(FMAX) ≥ E3-06(FA)
> E3-07 (FB) > E3-09 (FMIN)
0.0 to
255.0
<24>
16.0 V
<2>
AA− 31E —
E3-09
Motor 2
Minimum
Output
Frequency
(FMIN)
0.0 to
400.0
1.5 Hz
<2>
AA− 31F —
E3-10
Motor 2
Minimum
Output
Frequency
Voltage
(VMIN)
0.0 to
255.0
<24>
9.0 V
<2>
AA− 320 —
E3-11
<26>
Motor 2 Mid
Output
Frequency 2
Used only for fine-tuning the V/f ratio within
the rated output range.
This parameter does not typically require
adjustment.
0.0 to
400.0
0.0 Hz A A − 345 —
E3-12
<26>
Motor 2 Mid
Output
Frequency
Voltage 2
0.0 to
255.0
<24>
0.0
Va c
AA− 346 —
E3-13
<28>
Motor 2 Base
Voltage
(VBASE)
Used only for fine-tuning the V/f ratio within
the rated output range.
This parameter does not typically require
adjustment.
0.0 to
255.0
<24>
0.0
Va c
AS− 347 117
E4: Motor 2 Parameters
Use E4 parameters to control a second motor operating on the same drive.
E4-01
Motor 2 Rated
Current
Sets the motor 2 name plate full load current
in amperes (A). This value is automatically
set during Auto-Tuning.
10 to
200% of
drive
rated
current
<12> AA− 321 —
E4-02
Motor 2 Rated
Slip
Sets the motor 2 name plate full load current
in amperes (A). This value is automatically
set during Auto-Tuning.
0.00 to
20.00
<12> AA− 322 —
No. Name Description Range Def.
Control
Mode
Addr.
Hex
Pg.
V/f
O
L
V
P
M
VACrms Out(V)
Frequency (Hz)
E3-09 E3-07 E3-06 E3-11 E3-04
E3-05
E3-12
E3-13
E3-08
E3-10
