YASKAWA V1000 Series Installation & Start-Up Manual

2.2 Mechanical Installation
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 47
Mechanical Installation
2

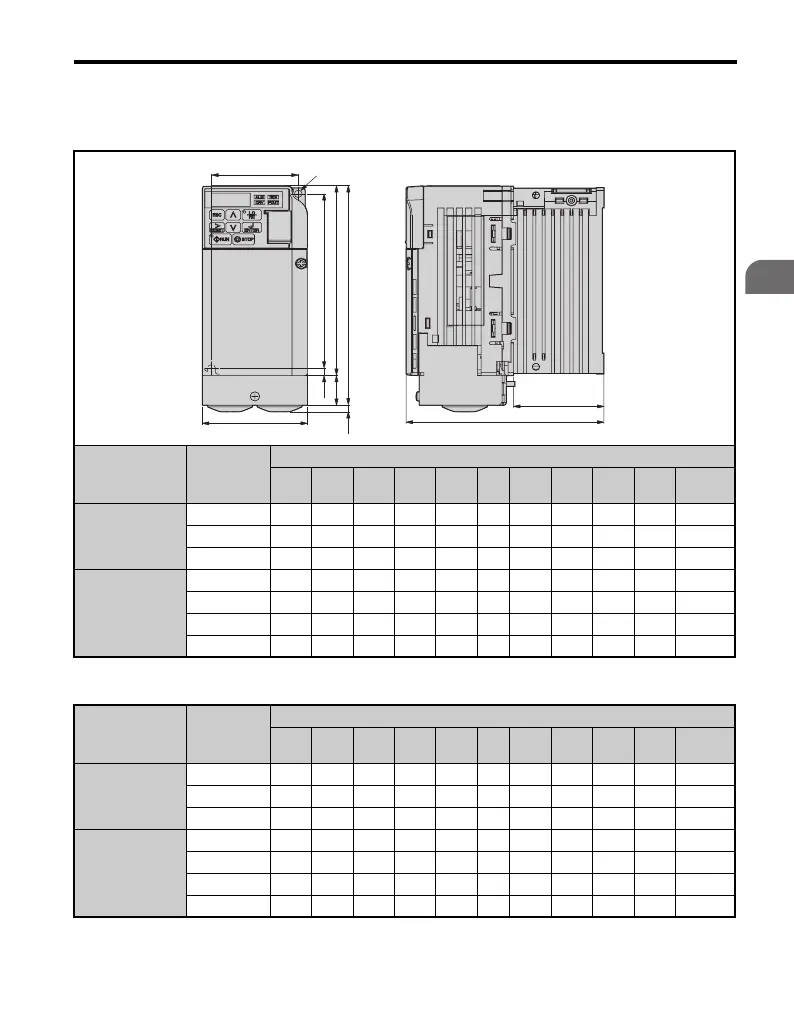

■ NEMA Type 1 Drives
Table 2.9 IP20/NEMA Type 1 (without an EMC filter; metric)
Table 2.10 IP20/NEMA Type 1 (without an EMC filter; U.S. Units)
Voltage Class
Model
CIMR-V
Dimensions (mm)
W1 H2 W H1 D H5 D1 H H4 H3
Weight
(kg)
Single-Phase
200 V Class
BA0001F 56 118 68 129.5 76 5 6.5 149.5 20 4 07
BA0002F 56 118 68 129.5 76 5 6.5 149.5 20 4 0.8
BA0003F 56 118 68 129.5 118 5 39 149.5 20 4 1.1
Three-Phase
200 V Class
2A0001F 56 118 68 129.5 76 5 6.5 149.5 20 4 1.7
2A0002F 56 118 68 129.5 76 5 6.5 149.5 20 4 1.7
2A0004F 56 118 68 129.5 108 5 39 149.5 20 4 1.0
2A0006F 56 118 68 129.5 128 5 59 149.5 20 4 1.2
Voltage Class
Model
CIMR-V
Dimensions (in)
W1 H2 W H1 D H5 D1 H H4 H3
Weight
(lb.)
Single-Phase
200 V Class
BA0001F 2.20 4.65 2.68 5.10 2.99 0.20 0.26 5.89 0.79 0.16 0.3
BA0002F 2.20 4.65 2.68 5.10 2.99 0.20 0.26 5.89 0.79 0.16 0.4
BA0003F 2.20 4.65 2.68 5.10 4.65 0.20 1.54 5.89 0.79 0.16 0.5
Three-Phase
200 V Class
2A0001F 2.20 4.65 2.68 5.10 2.99 0.20 0.26 5.89 0.79 0.16 0.8
2A0002F 2.20 4.65 2.68 5.10 2.99 0.20 0.26 5.89 0.79 0.16 0.8
2A0004F 2.20 4.65 2.68 5.10 4.25 0.20 1.54 5.89 0.79 0.16 0.5
2A0006F 2.20 4.65 2.68 5.10 5.04 0.20 2.32 5.89 0.79 0.16 0.5
W
W1
H1H4
H5 H2
HH3
D1
D
2-M4

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
