YASKAWA V1000 Series Installation & Start-Up Manual

2.2 Mechanical Installation
48 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)

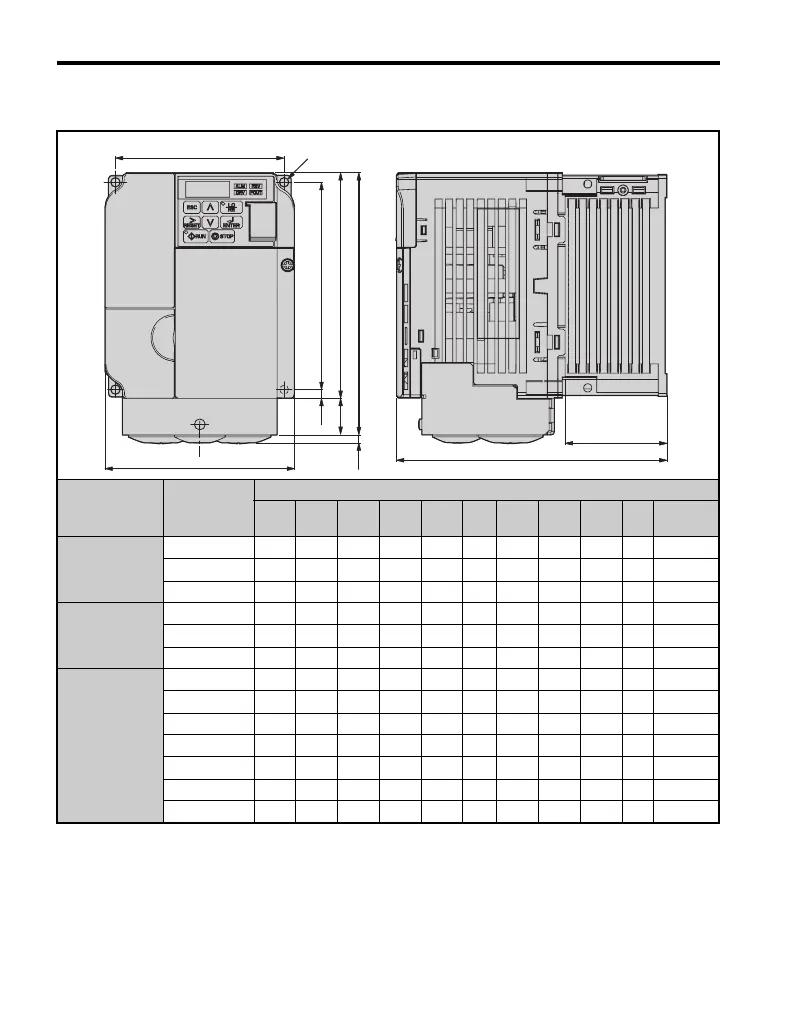

Table 2.11 IP20/NEMA Type 1 (without an EMC filter; metric)
Voltage Class
Model
CIMR-V
Dimensions (mm)
W1 H2 W H1 D H5 D1 H H4 H3
Weight
(kg)
Single-Phase
200 V Class
BA0006F 96 118 108 129.5 137.5 5 58 149.5 20 4 1.7
BA0010F 96 118 108 129.5 154 5 58 149.5 20 4 1.7
BA0012F 128 118 140 133 163 5 65 153 20 4.8 2.4
Three-Phase
200 V Class
2A0010F 96 118 108 129.5 129 5 58 149.5 20 4 1.5
2A0012F 96 118 108 129.5 137.5 5 58 149.5 20 4 1.6
2A0020F 128 118 140 133 143 5 65 153 20 4.8 2.4
Three-Phase
400 V Class
4A0001F 96 118 108 129.5 81 5 10 149.5 20 4 1.0
4A0002F 96 118 108 129.5 99 5 28 149.5 20 4 1.2
4A0004F 96 118 108 129.5 137.5 5 58 149.5 20 4 1.6
4A0005F 96 118 108 129.5 154 5 58 149.5 20 4 1.7
4A0007F 96 118 108 129.5 154 5 58 149.5 20 4 1.7
4A0009F 96 118 108 129.5 154 5 58 149.5 20 4 1.7
4A0011F 128 118 140 133 143 5 65 153 20 4.8 2.4
4-M4
W1
W
H5 H2
H4
HH3
D1
D
H1

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
