3.6 Main Circuit Wiring
72 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
■ Ground Wiring
Follow the listed precautions to properly wire the ground for one drive or a series of
drives.
WARNING! Electrical Shock Hazard. Always use a ground wire that complies with technical
standards on electrical equipment and minimize the length of the ground wire. Improper
equipment grounding may cause dangerous electrical potentials on equipment chassis, which
could result in death or serious injury.
WARNING! Electrical Shock Hazard. Be sure to ground the drive ground terminal. (200 V
Class: Ground to 100 W or less, 400 V Class: Ground to 10 W or less). Improper equipment
grounding could result in death or serious injury by contacting ungrounded electrical
equipment.
NOTICE: Do not share the ground wire with other devices such as welding machines or large-
current electrical equipment. Improper equipment grounding could result in drive or equipment
malfunction due to electrical interference.
NOTICE: When using more than one drive, ground multiple drives according to instructions.
Improper equipment grounding could result in abnormal operation of drive or equipment.
Refer to Figure 3.15 when using more than one drive. Do not loop the ground wire.

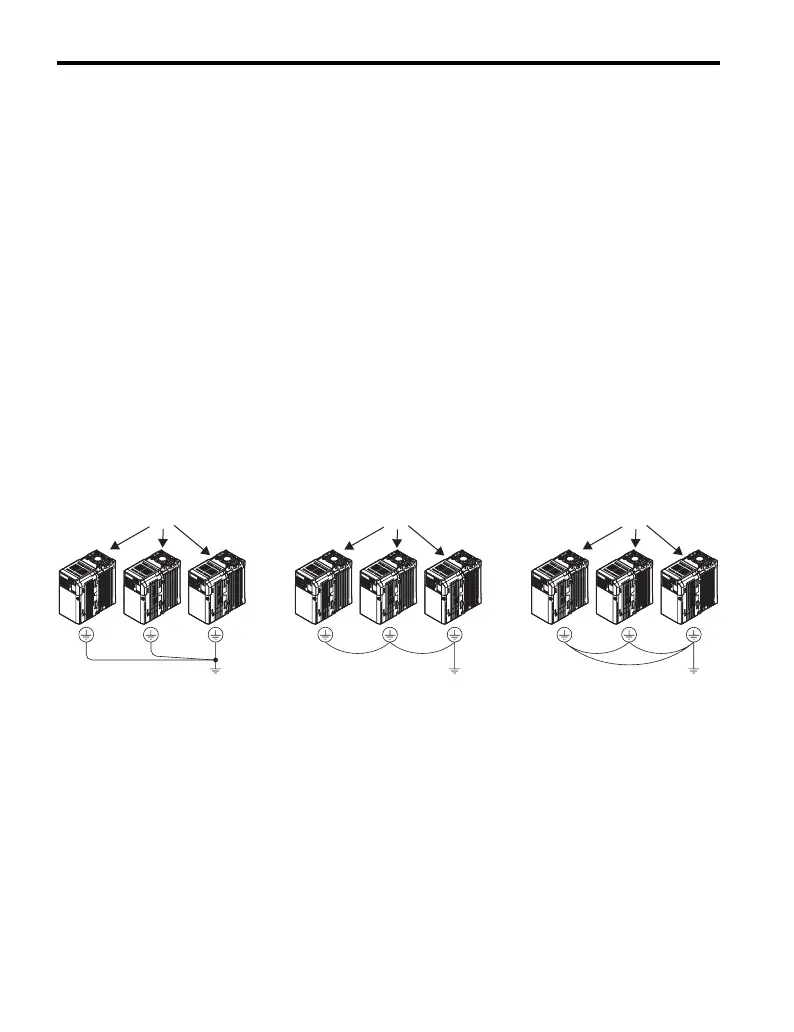

Figure 3. 15
Figure 3.15 Multiple Drive Wiring
A – Correct B – Incorrect
A
B
A

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
