2 Installation and Commissioning, IRC5
2.9.8. Upgrading and installation of 2X Euromap interface (Option 671-4)
3HAC021313-001 Revision: K132
© Copyright 2004-2008 ABB. All rights reserved.

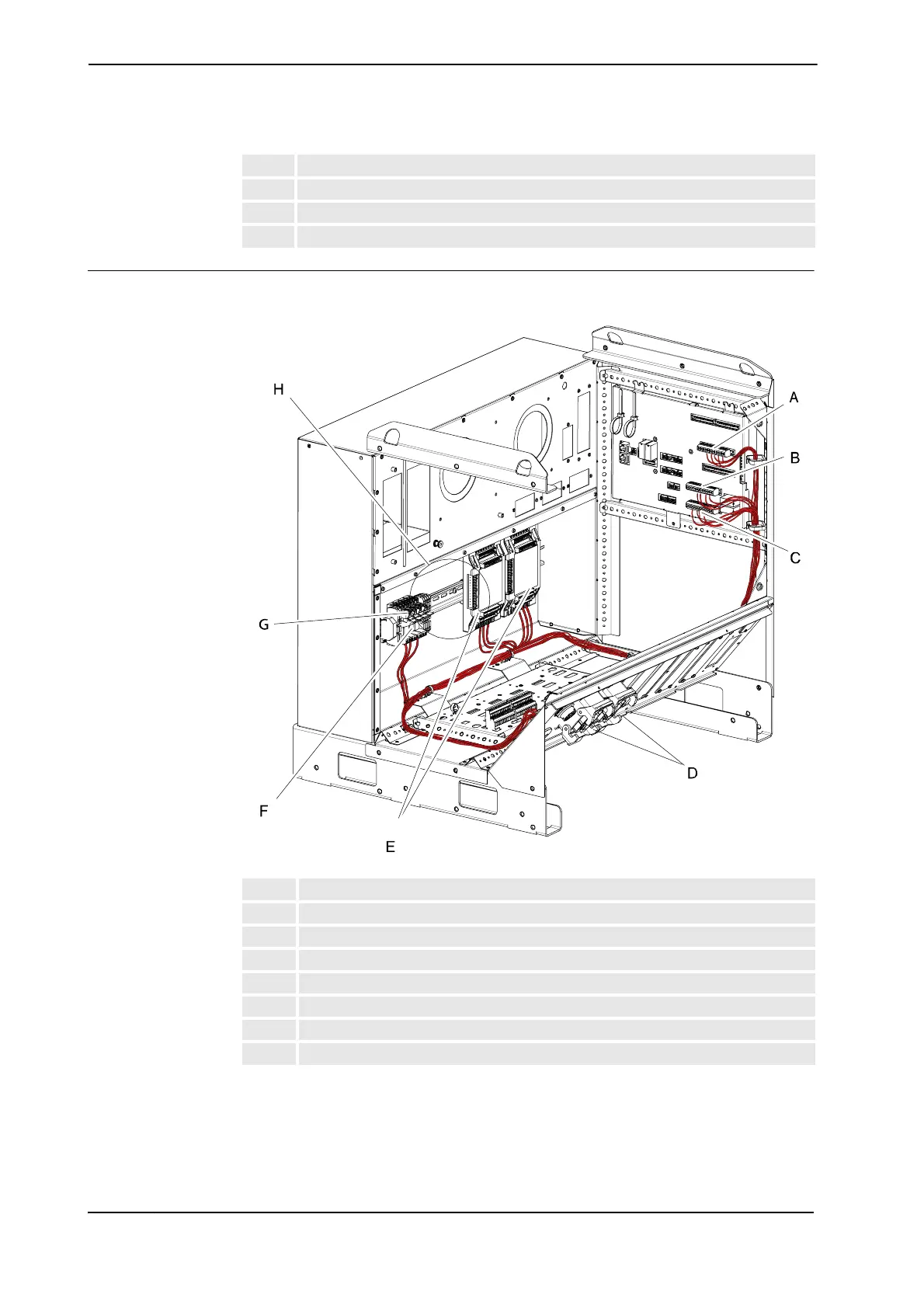

Location of Euromap 2X interfaces in the Dual Cabinet
xx0800000215
F Cable protection
G Euromap adapter
H X13x and X14z connector
J Placement of customer safety relay
A Connector A21.X5, on panel board
B Connector A21.X1, on panel board
C Connector A21.X2, on panel board
D X13x and X14z connector
E 2X Euromap 67: Digital 24 VDC I/O
F XT31
G Connector XS13, relay 24K1 and relay 24K2
H Placement of customer safety relay
Continued
