4 Repair activities, controller IRC5
4.28. Replacement of drive system fans
3HAC021313-001 Revision: K300
© Copyright 2004-2008 ABB. All rights reserved.
4.28. Replacement of drive system fans
Location

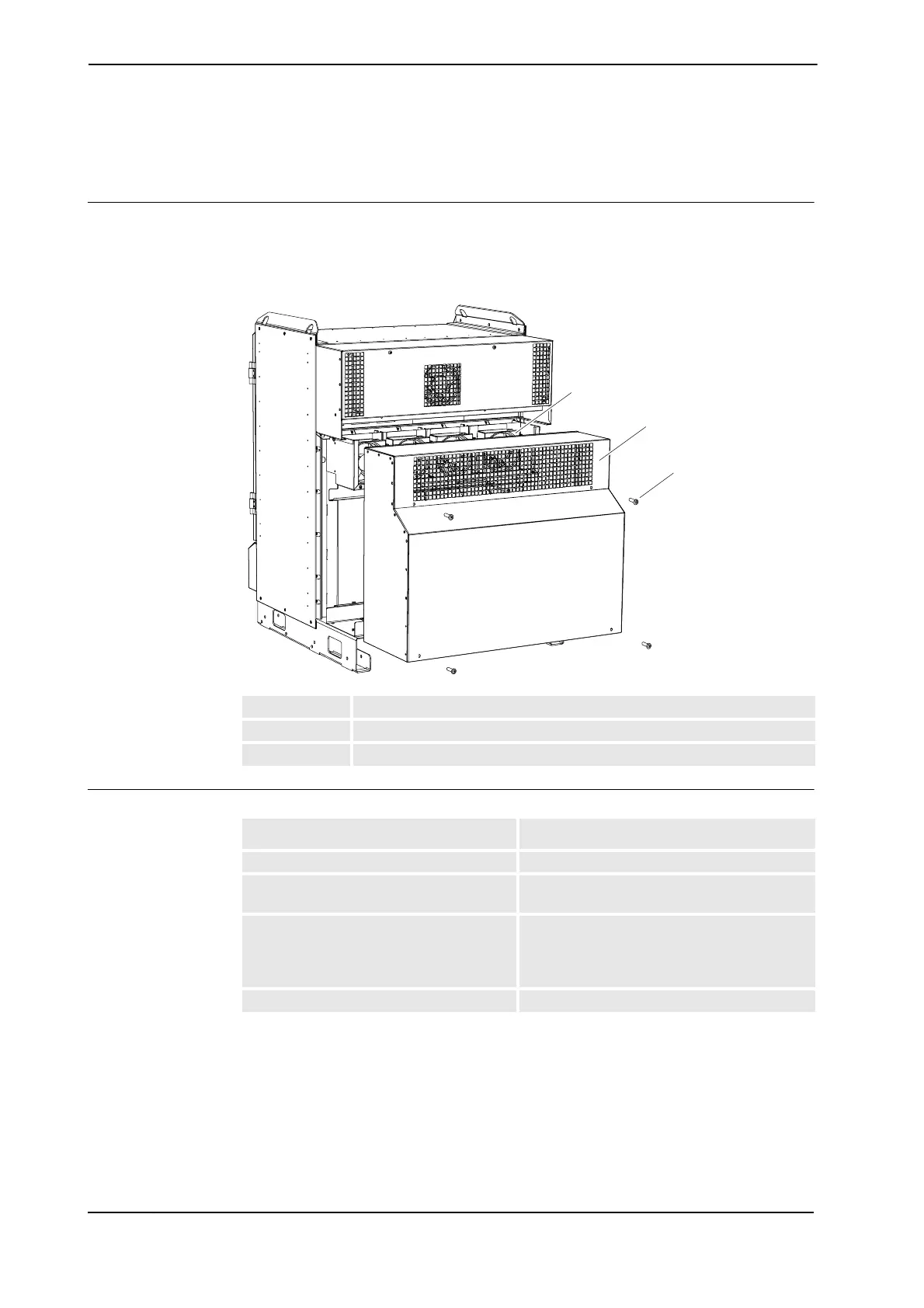

The illustration below shows the drive system fans in the Single Cabinet Controller.
In the Dual Cabinet Controller the drive system fans are located in the back of the Drive
Module.
xx0500002011
Required equipment
A Fan (4 pcs)
B Cover
C Attachment screw (4 pcs)
A
B
Equipment Note
Fan with receptacle See Miscellaneous parts on page 326.
Standard toolkit The contents are defined in section Standard
toolkit.
Other tools and procedures may be
required. see references to these
procedures in the step-by-step instructions
below.
These procedures include references to the
tools required.
Circuit diagram See Circuit Diagram on page 341.
Continues on next page
