2 Installation and Commissioning, IRC5

2.5.4. Connection to serial channel connector

3HAC021313-001 Revision: K56

Location DSQC639

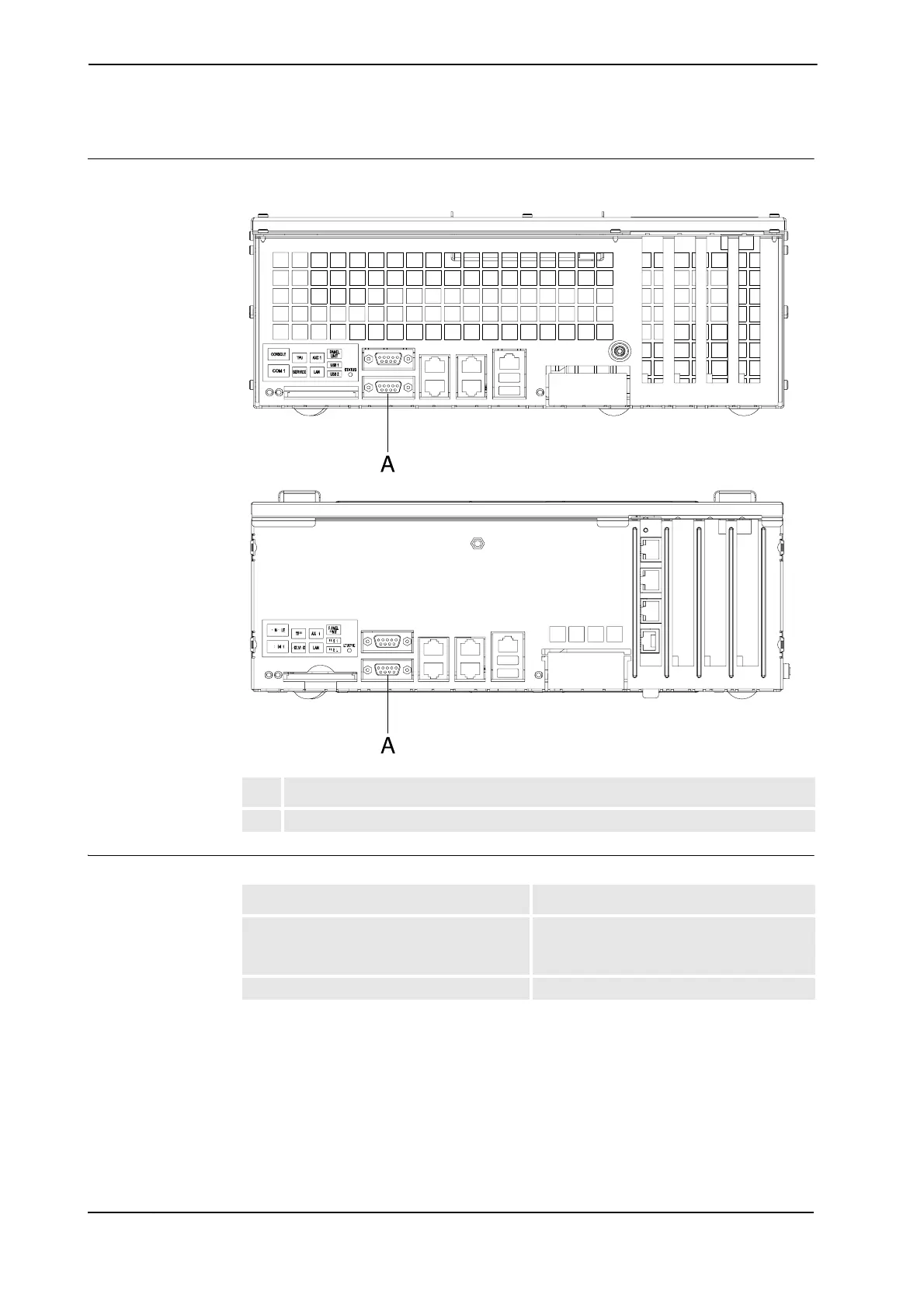

The serial channel connector is placed on the computer unit as shown below.

xx0600002892

Required equipment

Description

A COM1

Equipment Note

RS-232/422 converter DSQC 615

See Computer unit DSQC 639 parts on page

325 for spare part number.

Circuit diagram See Circuit Diagram on page 341

Continued

Continues on next page
