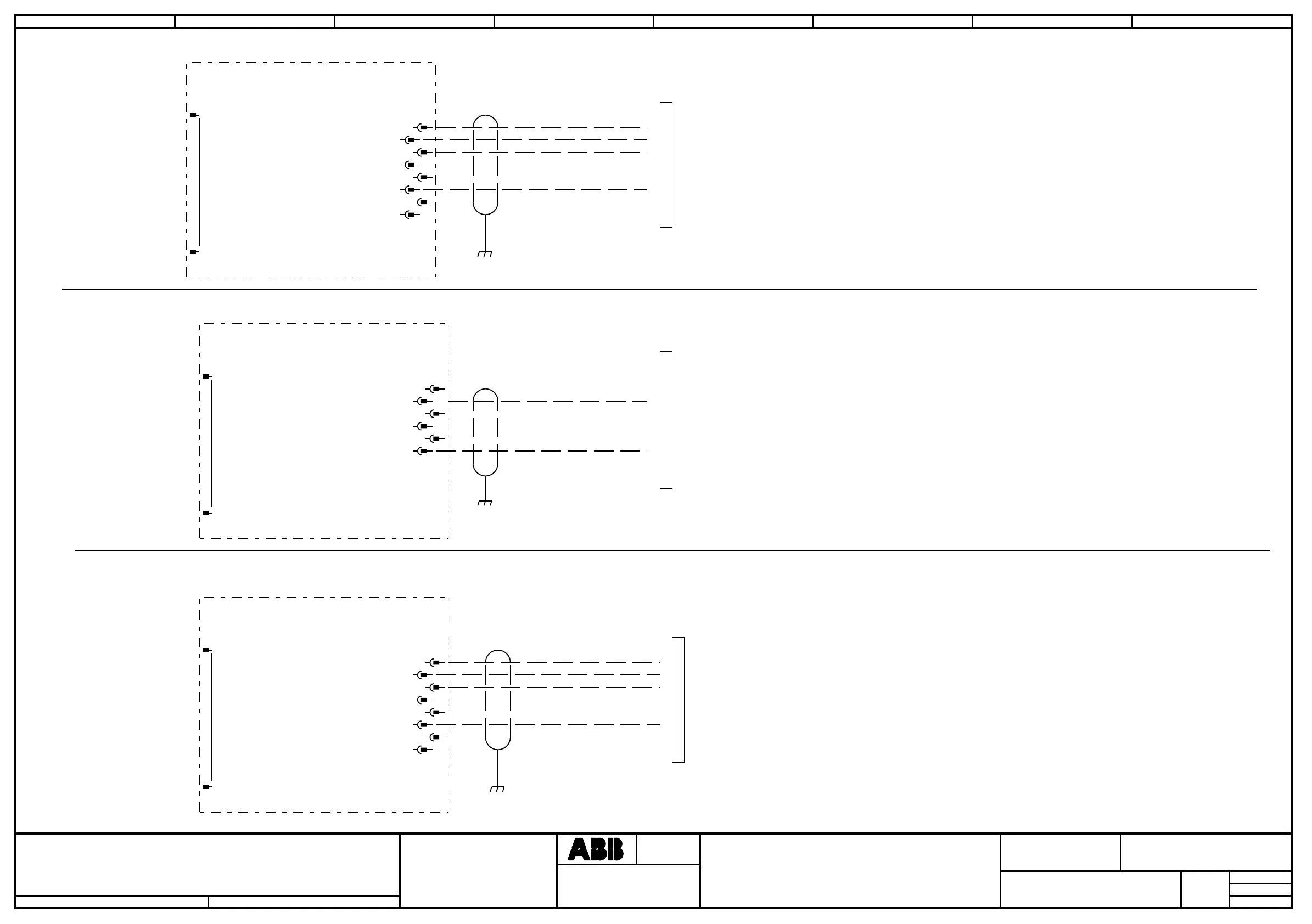

FIELDBUS ADAPTER:
ETHERNET/IP, PROFIBUS and
PROFINET IO
Location:
Plant:
=
+
+
Sublocation:
CAB
CM
Document no.
Next
Rev. Ind
03
Lab/Office:
Status:
CONTROL SYS. IRC5 M2004 DESIGN 06
Approved
2008-07-17
1 2 3 4 5 6 7 8
-A38.1
ETHERNET/IP Fieldbus adapter DSQC 669
-Z1
CompactCom
RX-
-X1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
-A38.2
PROFIBUS Fieldbus adapter DSQC 667
CompactCom
4
4
6
6
8
8
-X1
1
1
3
3
5
5
OPTION & HARNESS TO CUSTOMER I/OSLAVE SHIELD
RXD/TXD-p
CONTROL-P
GND
+5VDC
RXD/TXD-N
TX+
TX-
RX+
OPTION & HARNESS TO CUSTOMER I/O
-Z1
-A38.3
PROFINET IO Fieldbus adapter DSQC 688
-Z1
CompactCom
TX+
TX-
RX+
RX-
2
2
4
4
6
6
8
8
-X1
1
1
3
3
5
5
7
7
OPTION & HARNESS TO CUSTOMER I/O
