2 Installation and Commissioning, IRC5
2.4.4. Mounting the FlexPendant holder
433HAC021313-001 Revision: K
© Copyright 2004-2008 ABB. All rights reserved.
2.4.4. Mounting the FlexPendant holder
Location

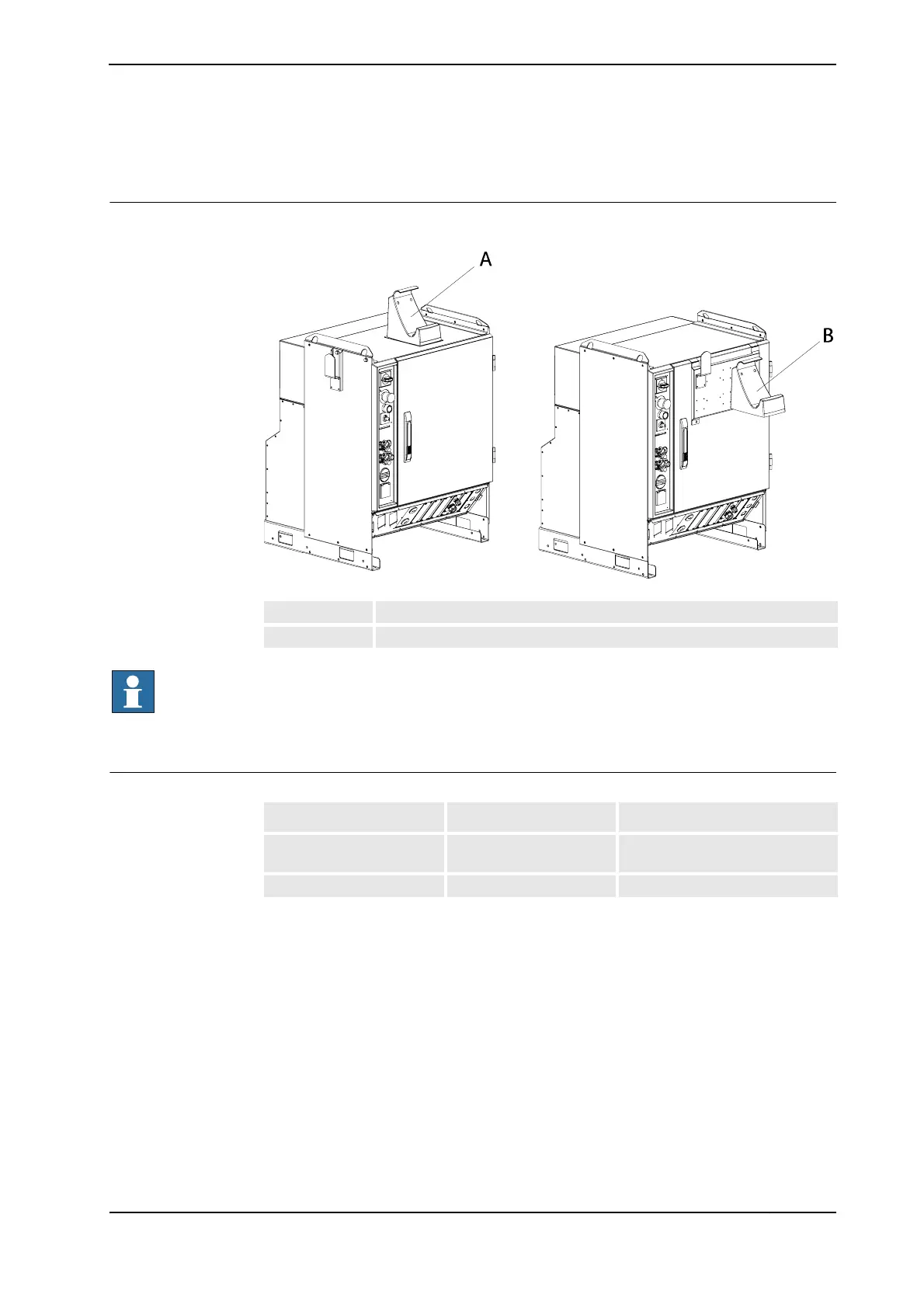

The placement of the FlexPendant holder is shown in the illustration below.
xx0500002542
NOTE!
In order to avoid drop of the FlexPendant from high levels, the location of the FlexPendant
holder on top of the control cabinet is recommended only with one single cabinet. Otherwise
according to location on the control cabinet door.
Required equipment
A FlexPendant holder mounted on top of the control cabinet.
B FlexPendant holder mounted on the control cabinet door.
Equipment Art.no Note
Standard tool kit The contents are defined in
section, Standard Toolkit.
FlexPendant holder 3HAC12678-1
Continues on next page
