2.9.4. Installation of I/O, Gateways and encoder interface units, IRC5

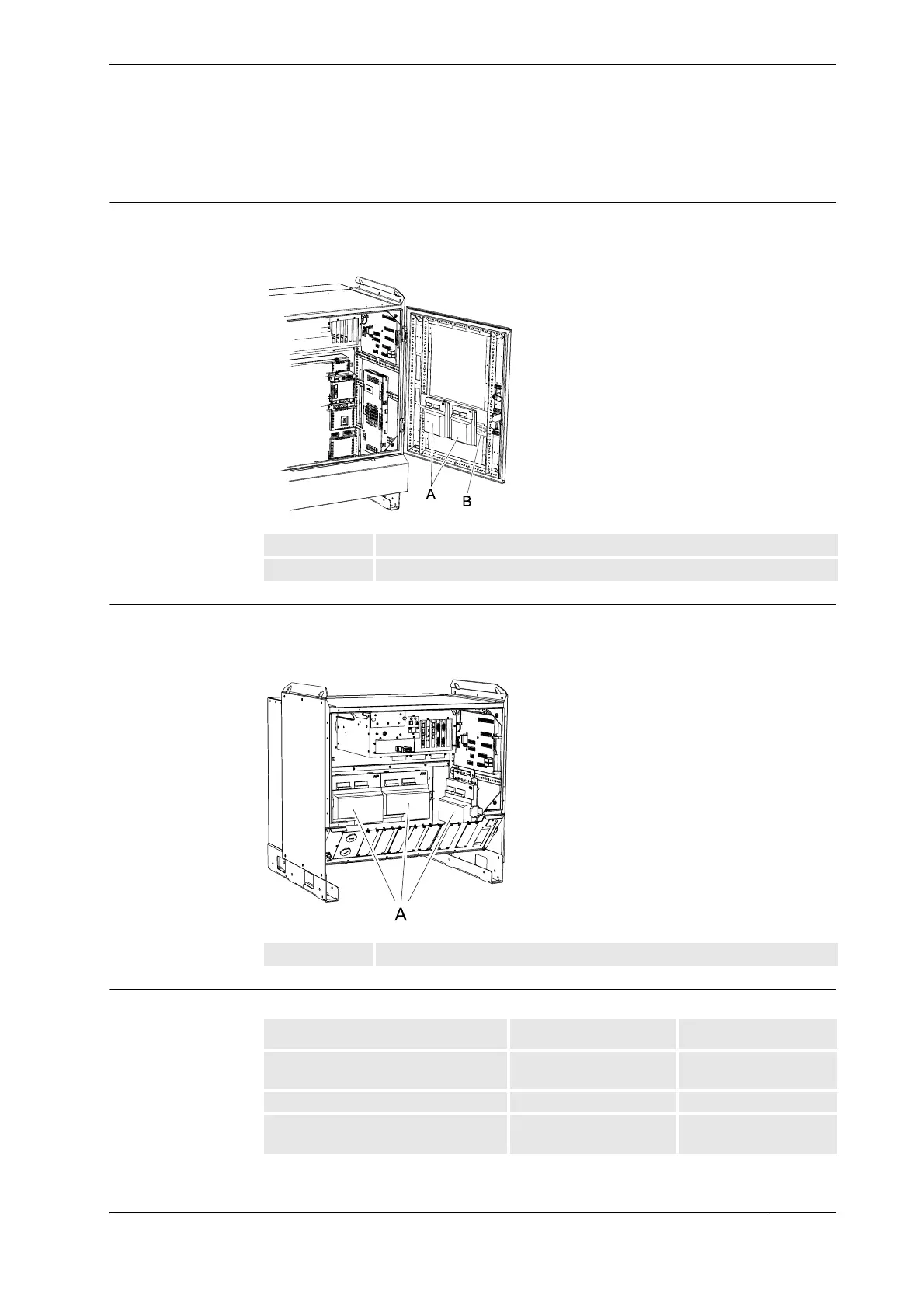

Location in Single Cabinet Controller
The location for the I/O units, Gateway or encoder interface units to be installed are shown
in the illustration below.
xx0500001859
Location in Dual Cabinet Controller
The location of I/O units, Gateways or encoder interface units in the Dual Cabinet Controller
is shown in the illustration below.
xx0600002684
Required equipment
A I/O units, Gateways or encoder interface units
B Mounting rail
A I/O units, Gateways or encoder interface units
Equipment Art. no. Note
I/O units, Gateways or encoder
interface units
Specified in Definition of
I/O units, IRC5.
Application manual - DeviceNet 3HAC020676-001
Circuit Diagram See Circuit Diagram on
page 341
