4 Repair activities, controller IRC5
4.30. Replacement of brake resistor bleeder
3073HAC021313-001 Revision: K
© Copyright 2004-2008 ABB. All rights reserved.
4.30. Replacement of brake resistor bleeder
Location

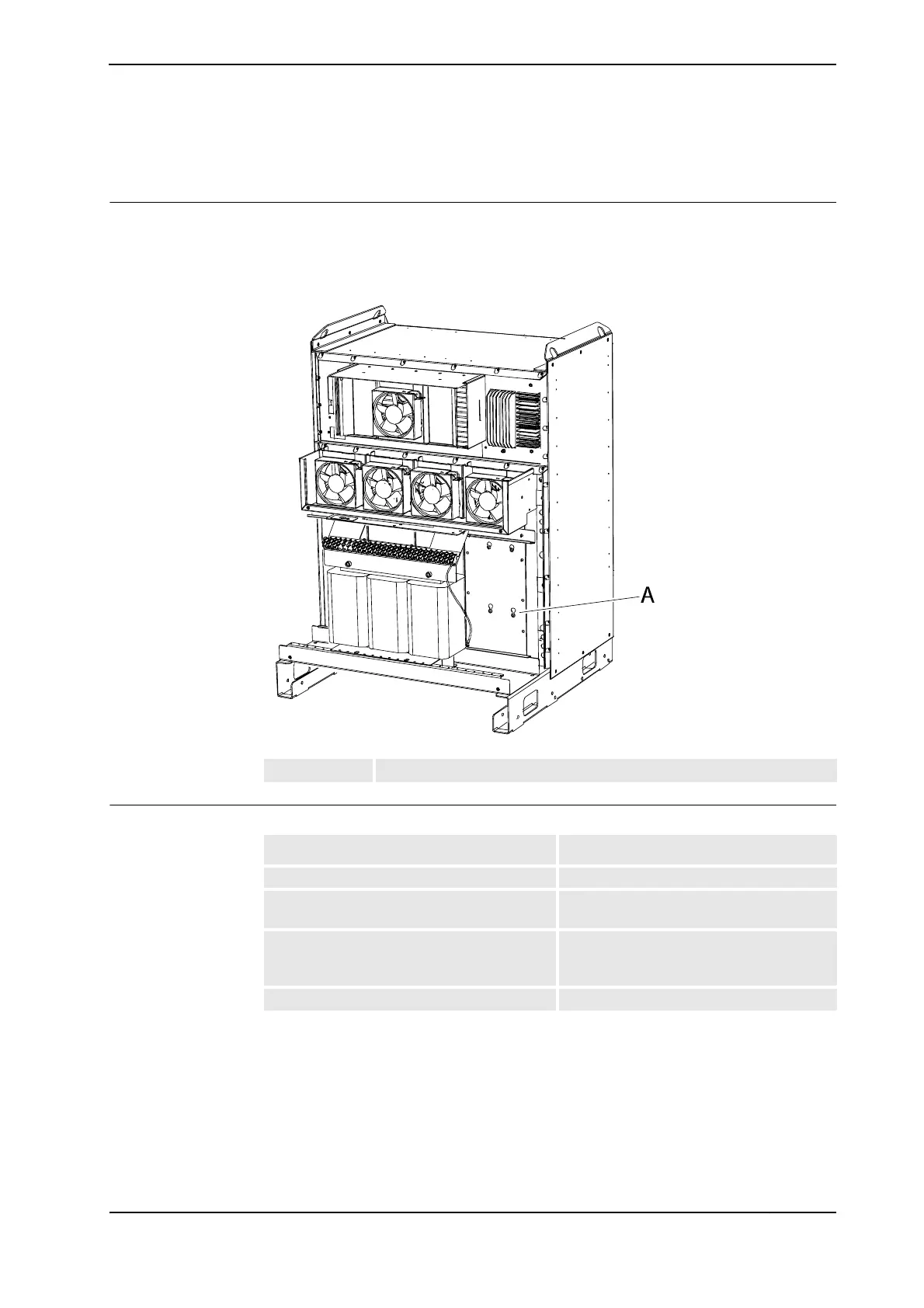

The illustration below shows the location of the brake resistor bleeder (behind the cover) in
the Single Cabinet Controller.
In the Dual Cabinet Controller the brake resistor bleeder is located in the Drive Module.
xx0500002022
Required equipment
A Brake resistor bleeder (behind plate, not visible).
Equipment Note
Brake resistor bleeder See Miscellaneous parts on page 326.
Standard toolkit The contents are defined in section
Standard toolkit
Other tools and procedures may be required.
See references to these procedures in the
step-by-step instructions below.
These procedures include references to the
tools required.
Circuit diagram See Circuit Diagram on page 341.
Continues on next page
