2 Installation and Commissioning, IRC5

2.9.10. Installation of Hot plug

3HAC021313-001 Revision: K150

Test of hot plug button function

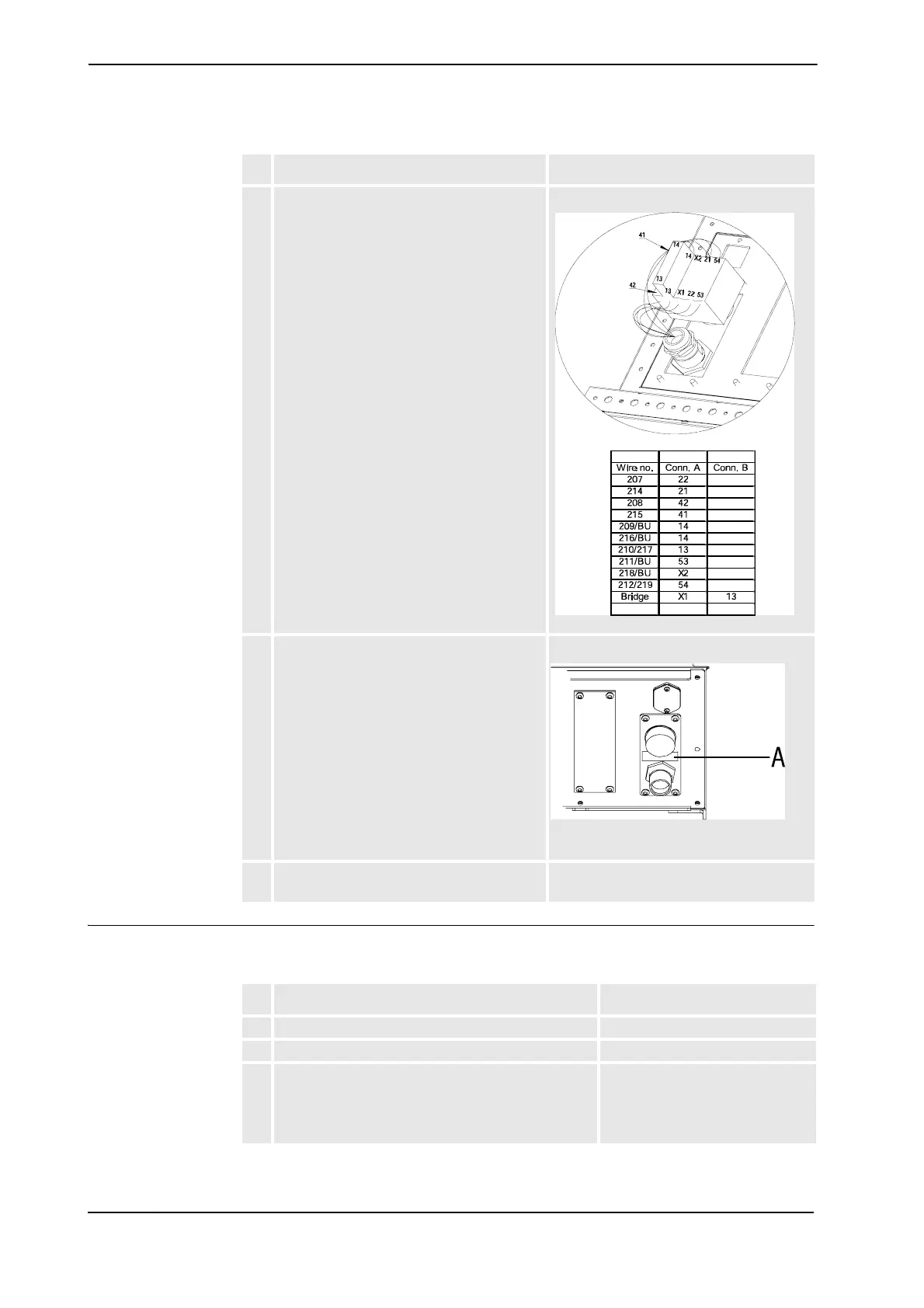

The procedure below details how to test the hot plug button function.

9. Connect the cables to the hot plug button

connector.

xx0600002956

10. Place the warning label below the hot plug

button.

xx0600002955

• A: Warning label

11. Test the hot plug button function. See section Test of hot plug button

function on page 150.

Action Note/Illustration

1. Make sure that the system is in automatic mode.

2. Press the motors on button.

3. Press and hold the hot plug button.

• Verify that the red lamp indicates when

actuated.

• Verify that the system still has motors on.

Continued

Continues on next page
