2 Installation and Commissioning, IRC5
2.9.9. Installation of cooling fan harness axis 1 and 2
3HAC021313-001 Revision: K142
© Copyright 2004-2008 ABB. All rights reserved.
Procedures for Single Cabinet Controller
Following procedure details how to install the harness, cooling - Axis 1 and 2 kit in the Single
Cabinet Controller.

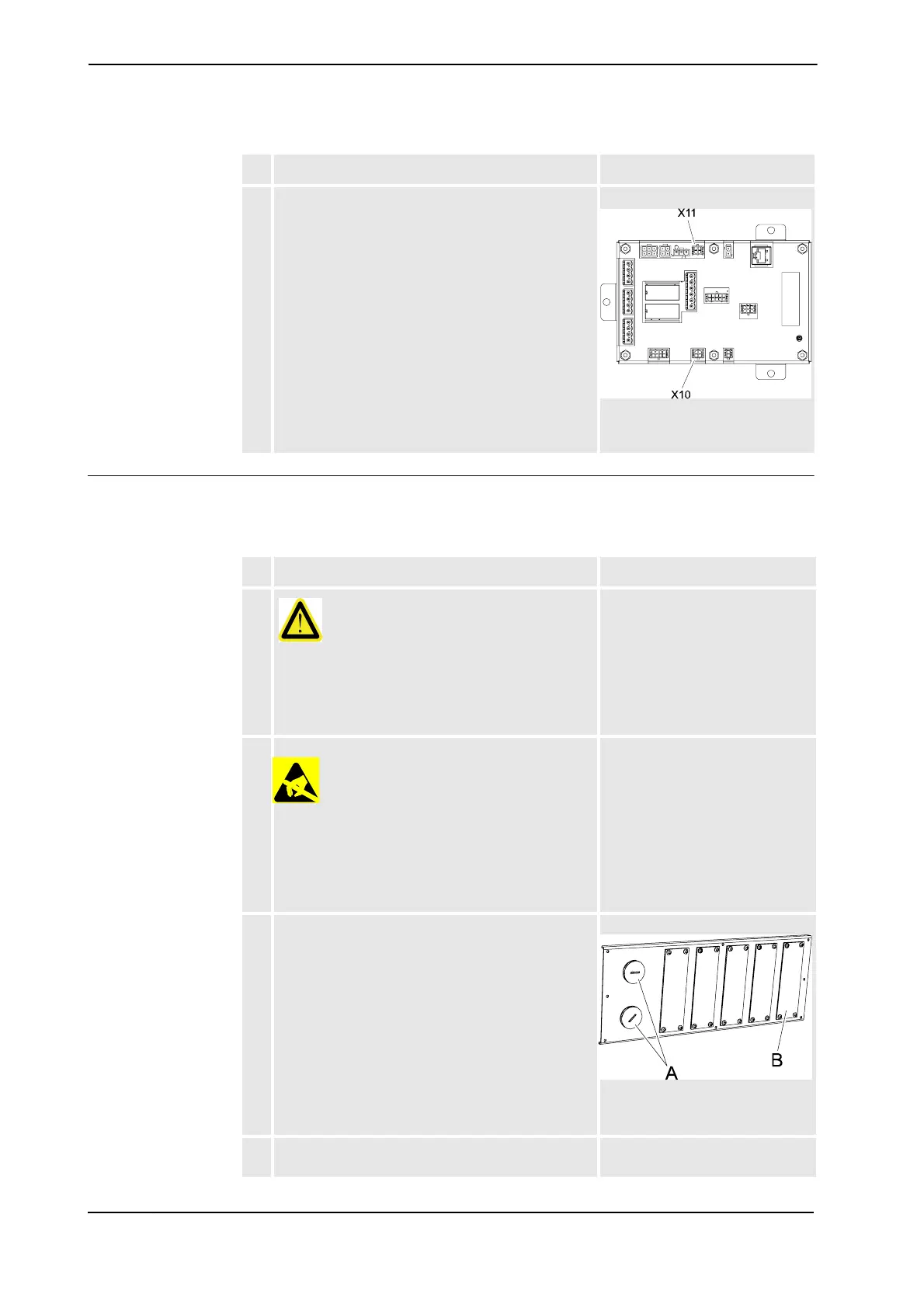

7. Connect the harness connectors to the contactor
interface board.
• A43.X11 to X11
• A43.X10 to X10
xx0500002690
See Locations in Dual Cabinet
Controller on page 139.
Action Note/Illustration
Action Note/Illustration
1.
DANGER!
Before any work inside the cabinet, please observe
the safety information in section DANGER - Make
sure that the main power has been switched off! on
page 28.
2.
esd
WARNING!
The unit is sensitive to ESD, before handling the unit
please observe the safety information in section
WARNING - The unit is sensitive to ESD! on page
29
3. Remove the two sealing plugs.
xx
• A: Sealing plug
• B: Cover plate with gasket
4. Fit the two connectors XS.8 and XS.58 from the
inside.
See Locations in Single Cabinet
Controller on page 140.
Continued
Continues on next page
