ABB IRC5 User Manual

6 Spare Parts
6.1.1. Single Cabinet Controller
3HAC021313-001 Revision: K326
© Copyright 2004-2008 ABB. All rights reserved.
Miscellaneous parts

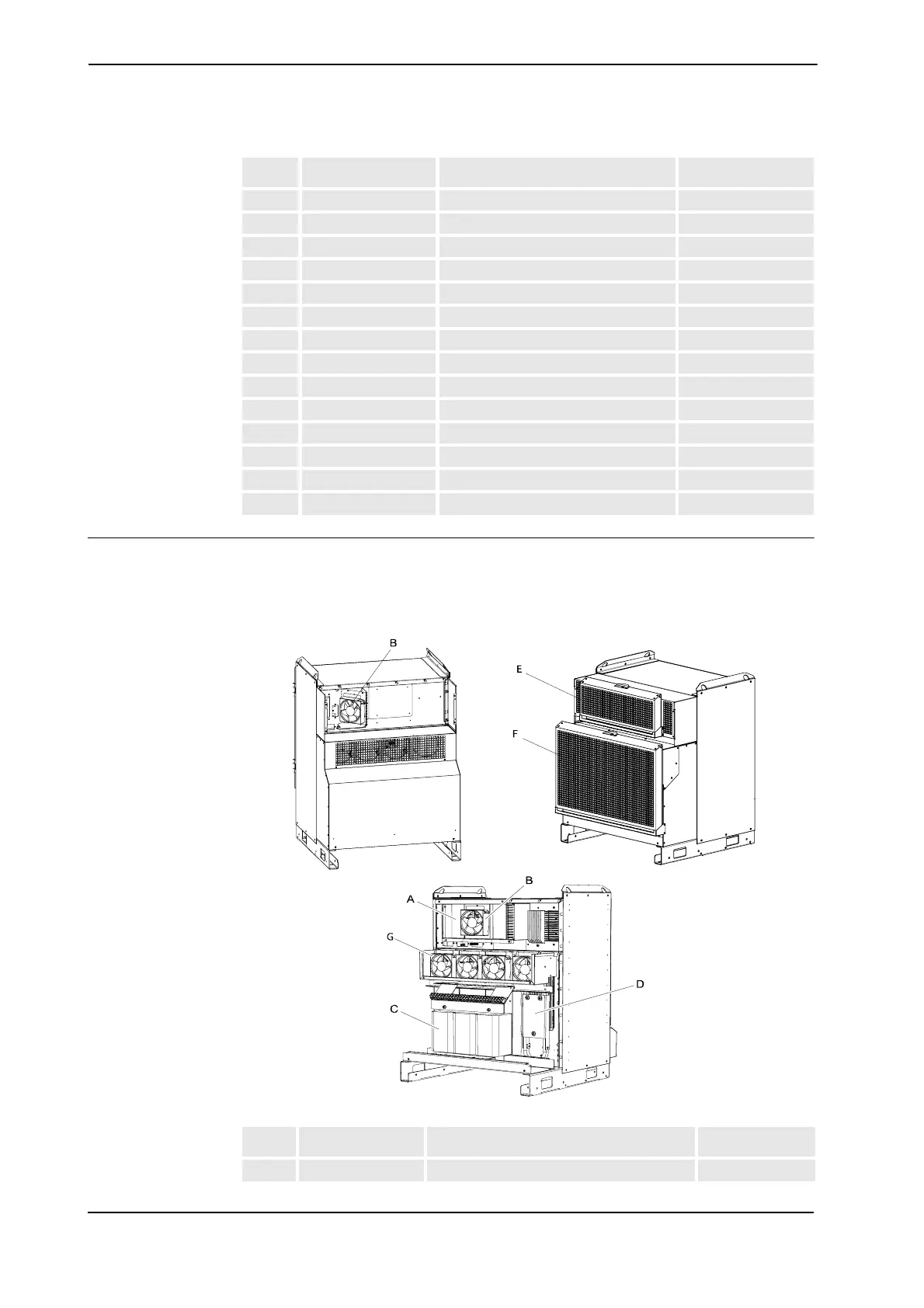

The illustration below shows the placement of the Miscellaneous parts in the recommended
spare part list.
xx0600002683
Spare part no. Description Note
A 3HAC025527-001 Computer unit DSQC 639
B 3HAC025465-001 Compact flash 256MB DSQC 656 256MB
B 3HAC025465-003 Compact flash 2GB DSQC 656 2GB
C 3HAC14944-1 RS-232/422 Converter DSQC 615
E, D, F 3HAC025779-001 DeviceNet Master/Slave Single DSQC 658
E, D, F 3HAC025780-001 DeviceNet Master/Slave Dual DSQC 659
E, D, F 3HAC15639-1 Ethernet card DSQC 612
E, D, F 3HAC11819-1 Interbus Master/Slave copper wire DSQC 529
E, D, F 3HAC5579-1 Interbus Master/Slave optical fibre DSQC 512
E, D, F 3HAC023047-001 Profibus-DP Master/Slave DSQC 637
E, D, F 3HAC030327-001 PROFINET Master/Slave DSQC 678
G 3HAC031670-001 PROFINET Fieldbus Adapter DSQC 688
I 3HAC16751-3 Fan
K 3HAC025097-016 DDR SDRAM 256MB
Spare part no Description Note
C 3HAC024138-001 Transfomer unit 13kVA
Continued
Continues on next page

ABB IRC5 Specifications

General

Type	Industrial Robot Controller
Model	IRC5
Protection Class	IP54
Power Supply	200-600 VAC, 50/60 Hz
Communication Protocols	PROFIBUS, PROFINET, DeviceNet
Programming Language	RAPID
Number of axes	Up to 36
Storage Temperature	-25°C to +55°C
Relative Humidity	95% (non-condensing)
