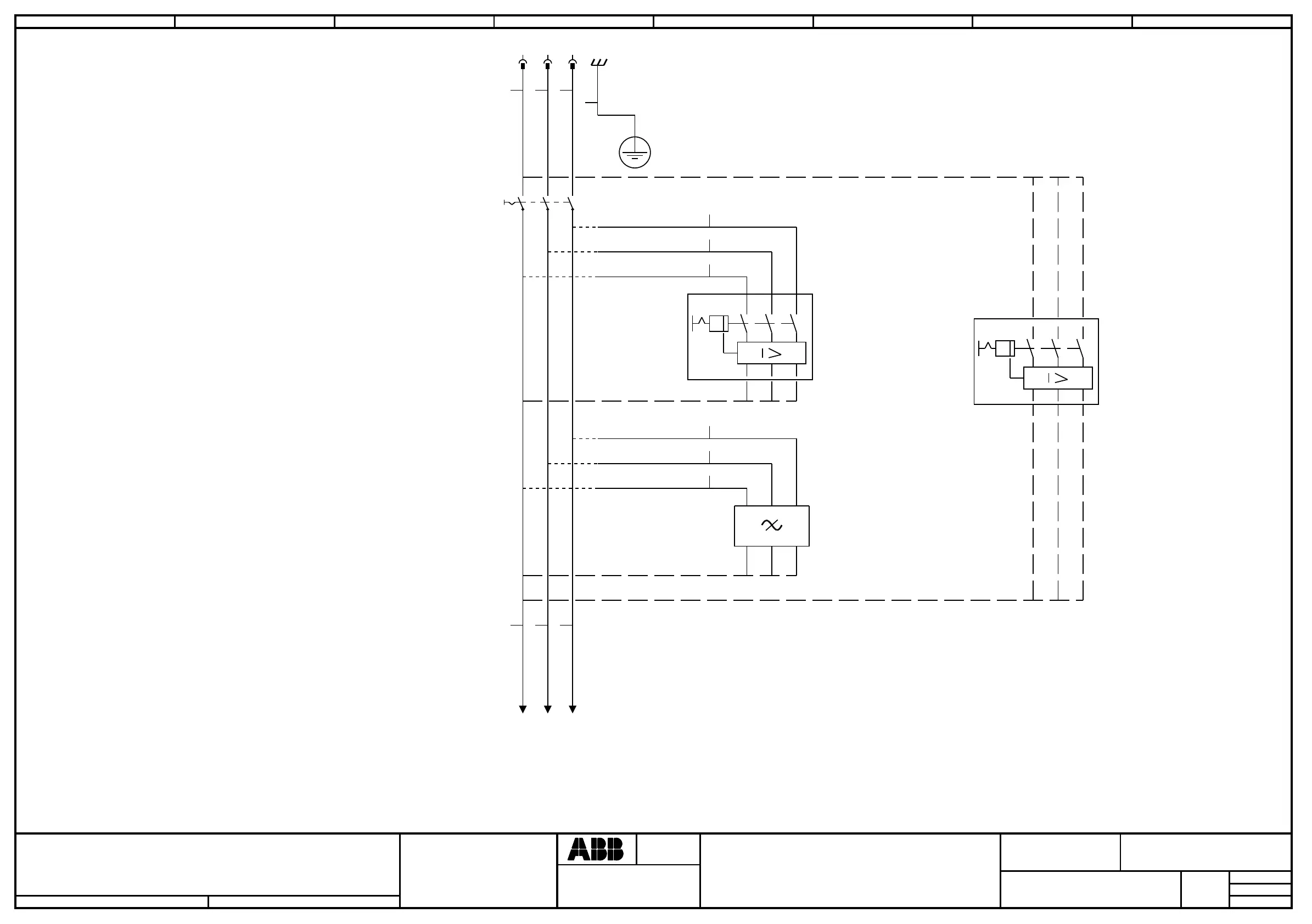

MAINS CONNECTION
Location:
Plant:
=
+
+
Sublocation:
CAB
DM
Document no.
Next
Rev. Ind
03
Lab/Office:
Status:
CONTROL SYS. IRC5 M2004 DESIGN 06
Approved
2008-07-17
1 2 3 4 5 6 7 8
-Q1
1
2
3
4
5
6
-101 AWG10 BK-110 AWG10 BK
-XP0 11
-102 AWG10 BK-111 AWG10 BK
22
/83.3 / L2
-103 AWG10 BK-112 AWG10 BK
33
/83.4 / L3
AWG10 GNYE
TRANSFORMER UNIT
-F6
OPTION:
CIRCUIT BRAKER
1
2
3
4
5
6
OPTION:
MAINS LINE FILTER
-Z1
1
2
3
4
5
6
-Q1
OPTION :
FLANGE DISCONNECT
1
T1
2
T2
3
T3
101 102 103
110 111 112
/83.3 / L1
-107 AWG10 BK
-108 AWG10 BK
-109 AWG10 BK
-104 AWG10 BK
-105 AWG10 BK
-106 AWG10 BK

ABB IRC5 Specifications

General

Type	Industrial Robot Controller
Model	IRC5
Protection Class	IP54
Power Supply	200-600 VAC, 50/60 Hz
Communication Protocols	PROFIBUS, PROFINET, DeviceNet
Programming Language	RAPID
Number of axes	Up to 36
Storage Temperature	-25°C to +55°C
Relative Humidity	95% (non-condensing)
