2 Installation and Commissioning, IRC5
2.5.1. Connectors on controller, IRC5
493HAC021313-001 Revision: K
© Copyright 2004-2008 ABB. All rights reserved.
Dual Cabinet Controller
The following details the connectors on the frontpanel of the Dual Cabinet Controller, that is
the Control Module and the Drive Module.
Control Module

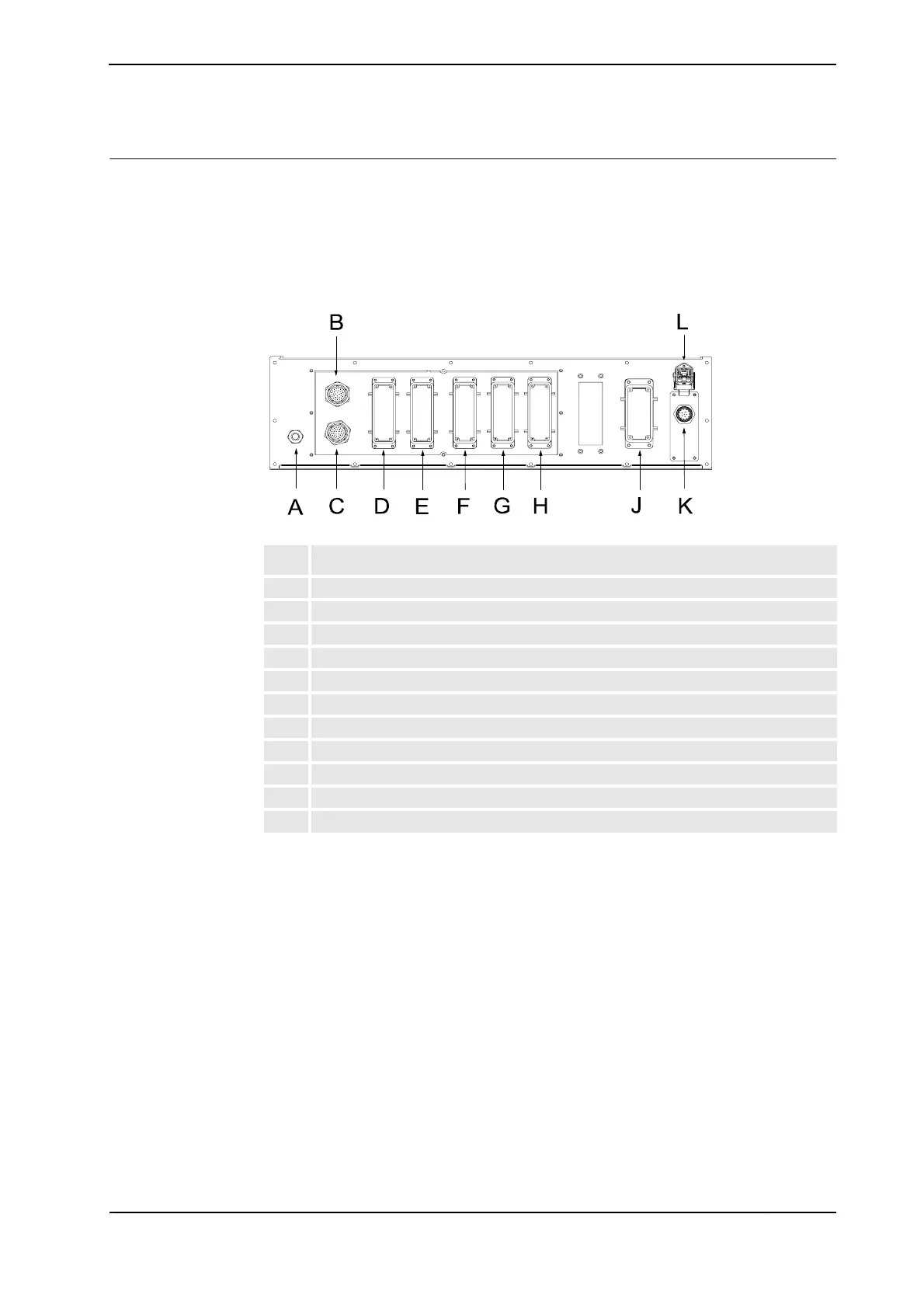

The following details the connectors on the frontpanel of the Control Module.
xx0400000931
Description
A Power connection
B A5.X8: Position switches
C A5.X58: Position switches
D A5.X5: Customer power/signals external connection
E A5.X11: Customer options
F A5.X12: Customer options
G A5.X13: Customer options
H A5.X14: Customer options
J A5.X3: Customer safety signals
K A22.X1: FlexPendant connection
L A5.X28: Network connection
Continued
Continues on next page
