2 Installation and Commissioning, IRC5
2.9.9. Installation of cooling fan harness axis 1 and 2
1413HAC021313-001 Revision: K
© Copyright 2004-2008 ABB. All rights reserved.
Procedures for Dual Cabinet Controller
Following procedure details how to install the harness, cooling - Axis 1 and 2 kit in the Dual
Cabinet Controller.
Action Note/Illustration
1.
DANGER!
Before any work inside the cabinet, please observe
the safety information in section DANGER - Make
sure that the main power has been switched off! on
page 28.
2.
esd
WARNING!
The unit is sensitive to ESD, before handling the unit
please observe the safety information in section
WARNING - The unit is sensitive to ESD! on page
29

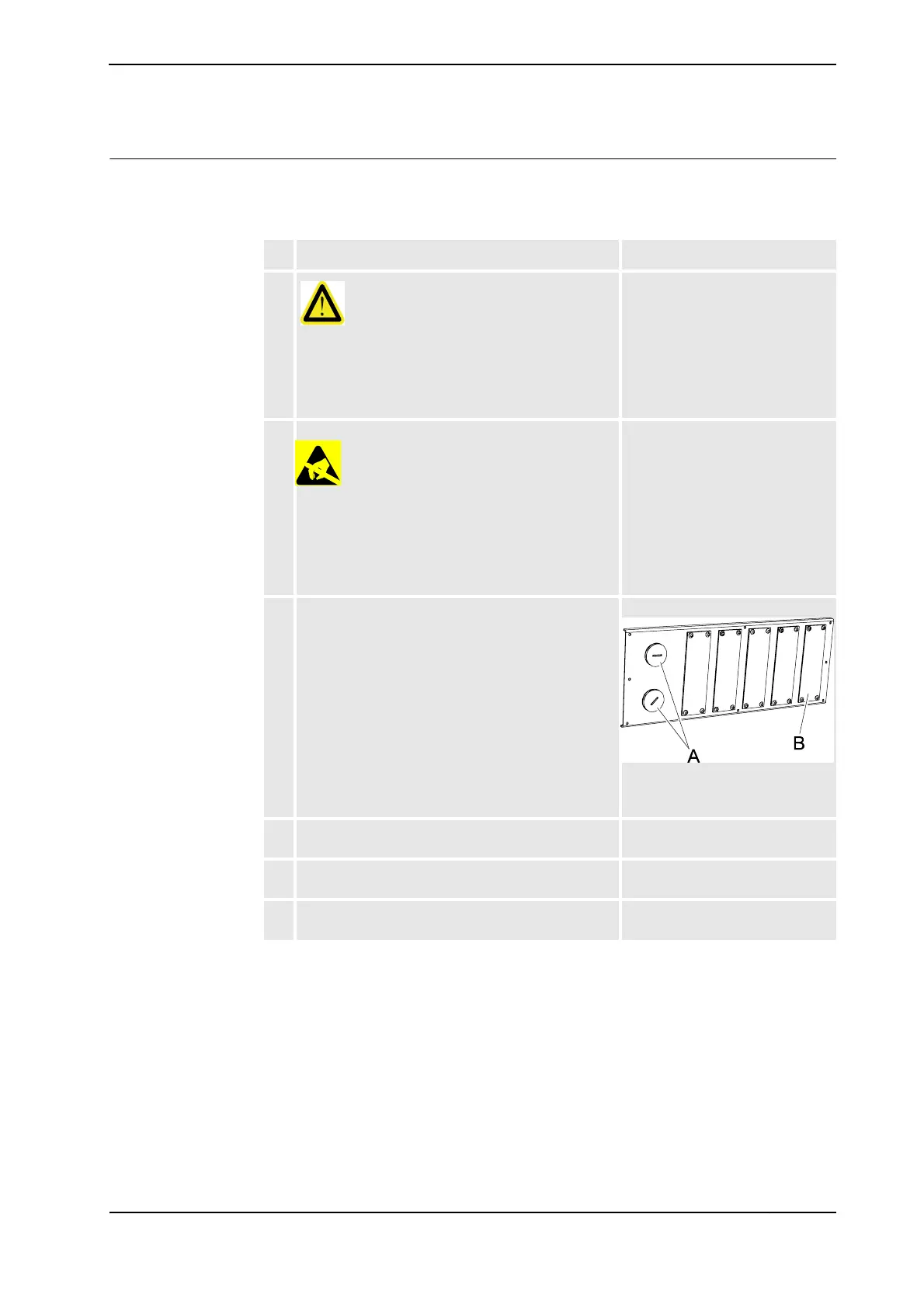

3. Remove the cover plate to an empty slot on the
connection plate.
xx0500002688
• A: Sealing plug
• B: Cover plate with gasket
4. Route the harness through the empty slot. See Locations in Dual Cabinet
Controller on page 139.
5. Fit the cover with cable gland. See Locations in Dual Cabinet
Controller on page 139.
6. Route the harness according to the illustration in
Locations in Dual Cabinet Controller on page 139
Continued
Continues on next page
