4.26. Replacement of Remote Service box
General
A Remote Service box is mounted in the Single Cabinet Controller or in the Control Module
of the Dual Cabinet Controller if option Remote Service is used.
Location

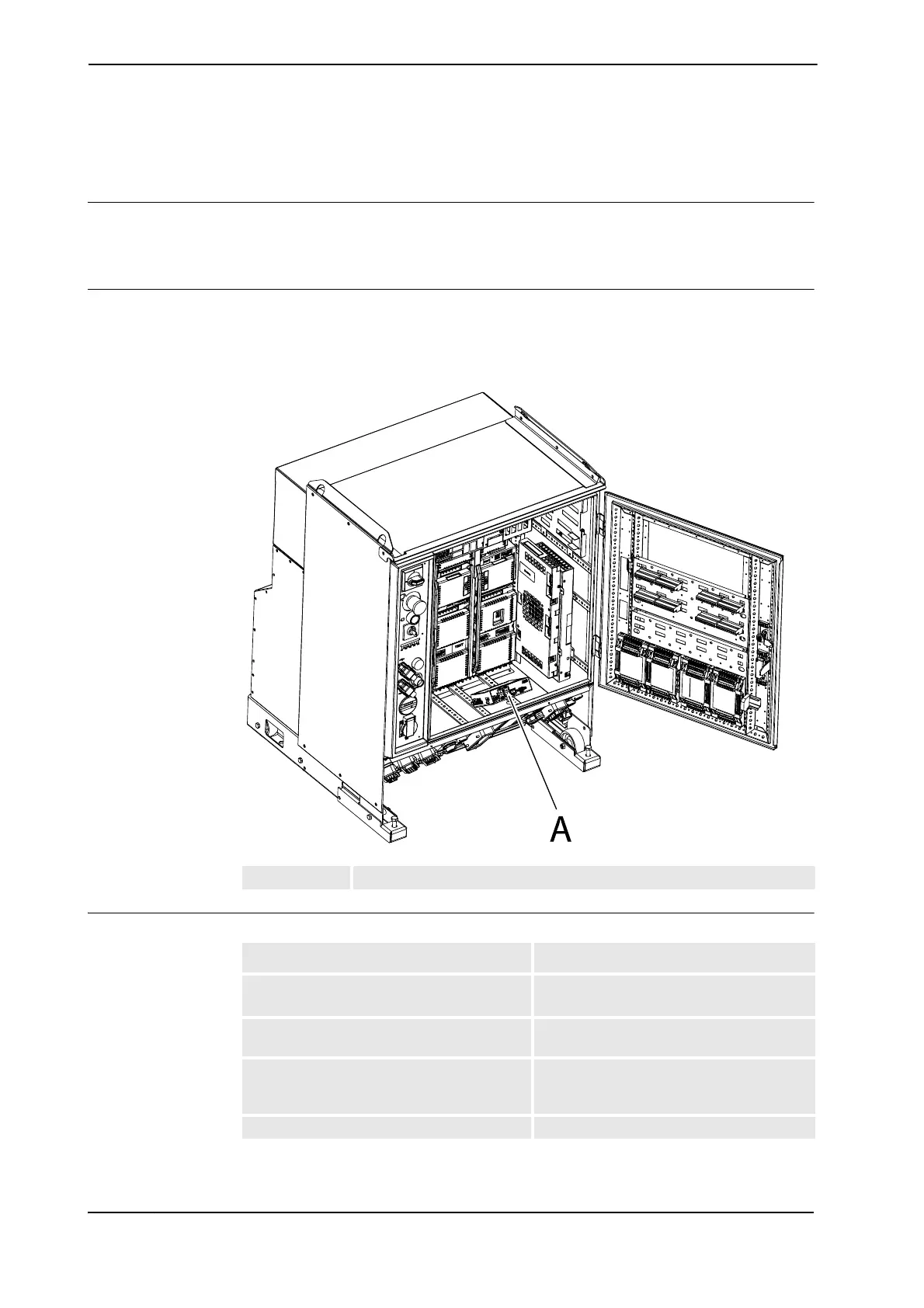

The illustration below shows the Remote Service box in the Single Cabinet Controller.
For Dual Cabinet Controller the Remote Service box is located on the botton in the Control
Module.
xx0800000094
Required equipment
A Remote Service box
Equipment Note
Remote Service box DSQC 680
See Controller system parts on page 321.
Standard toolkit The contents are defined in section Standard
toolkit.
Other tools and procedures may be required.
See references to these procedures in the
step-by-step instructions below.
Circuit diagram See Circuit Diagram on page 341.
