4 Repair activities, controller IRC5
4.26. Replacement of Remote Service box
2953HAC021313-001 Revision: K
© Copyright 2004-2008 ABB. All rights reserved.
Removal
The following procedure details how to remove the Remote Service box.
Refitting
The following procedure details how to refit the Remote Service box.
Action Note/illustration
1.
DANGER!
Before any work inside the cabinet, please
observe the safety information in section
DANGER - Make sure that the main power has
been switched off! on page 28.
2.
WARNING!
The unit is sensitive to ESD, before handling
the unit please observe the safety information
in section The unit is sensitive to ESD! on page
27.
3. Disconnect all connectors from the Remote
Service box.

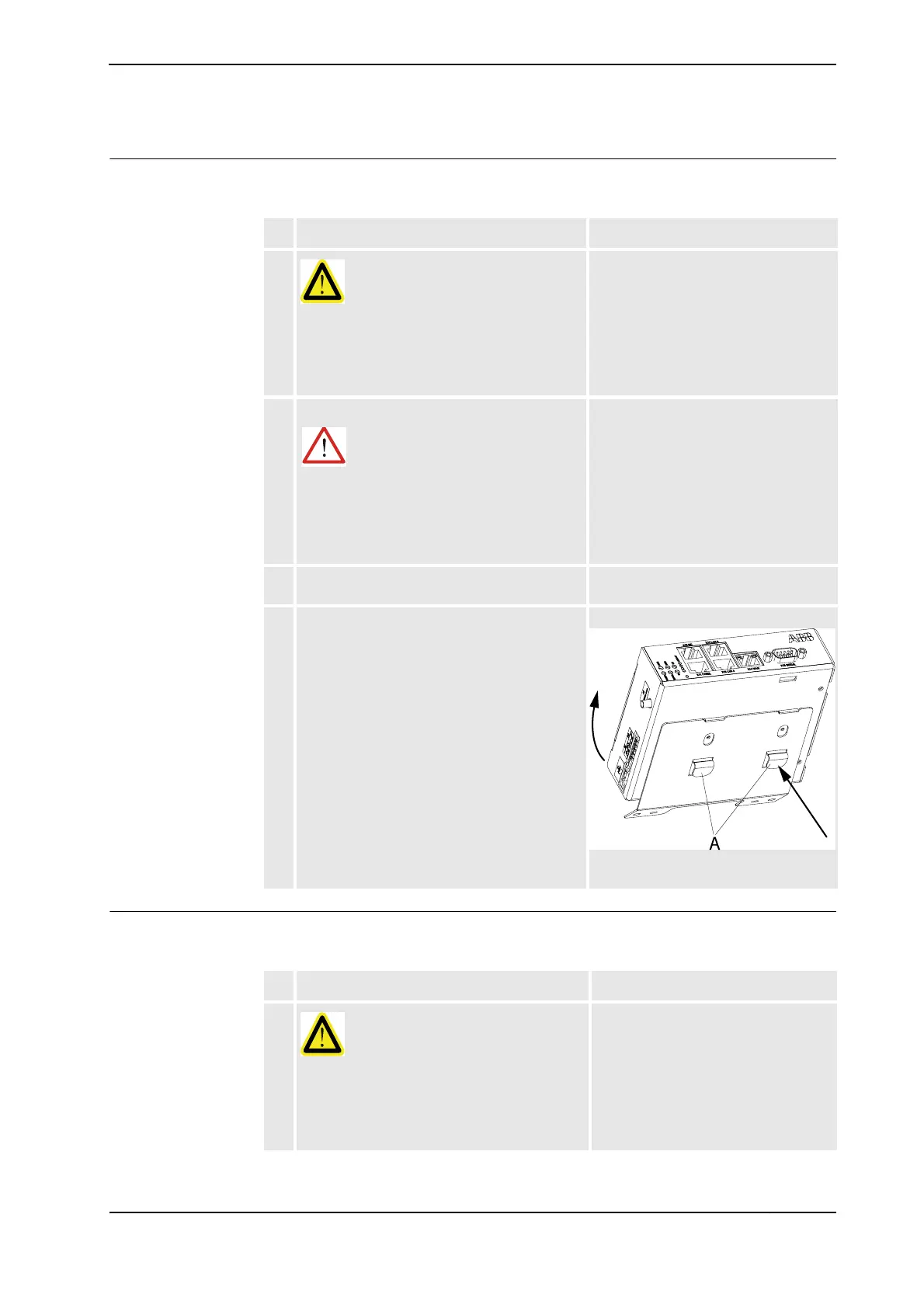

4. Push the spring locks in the arrow direction
and lift the box out.
xx0800000091
• A: Spring lock
Action Note/illustration
1.
DANGER!
Before any work inside the cabinet, please
observe the safety information in section
DANGER - Make sure that the main power has
been switched off! on page 28.
Continued
Continues on next page
