4 Repair activities, controller IRC5
4.4. Replacement of Flange disconnect
2053HAC021313-001 Revision: K
© Copyright 2004-2008 ABB. All rights reserved.
4.4. Replacement of Flange disconnect
Location

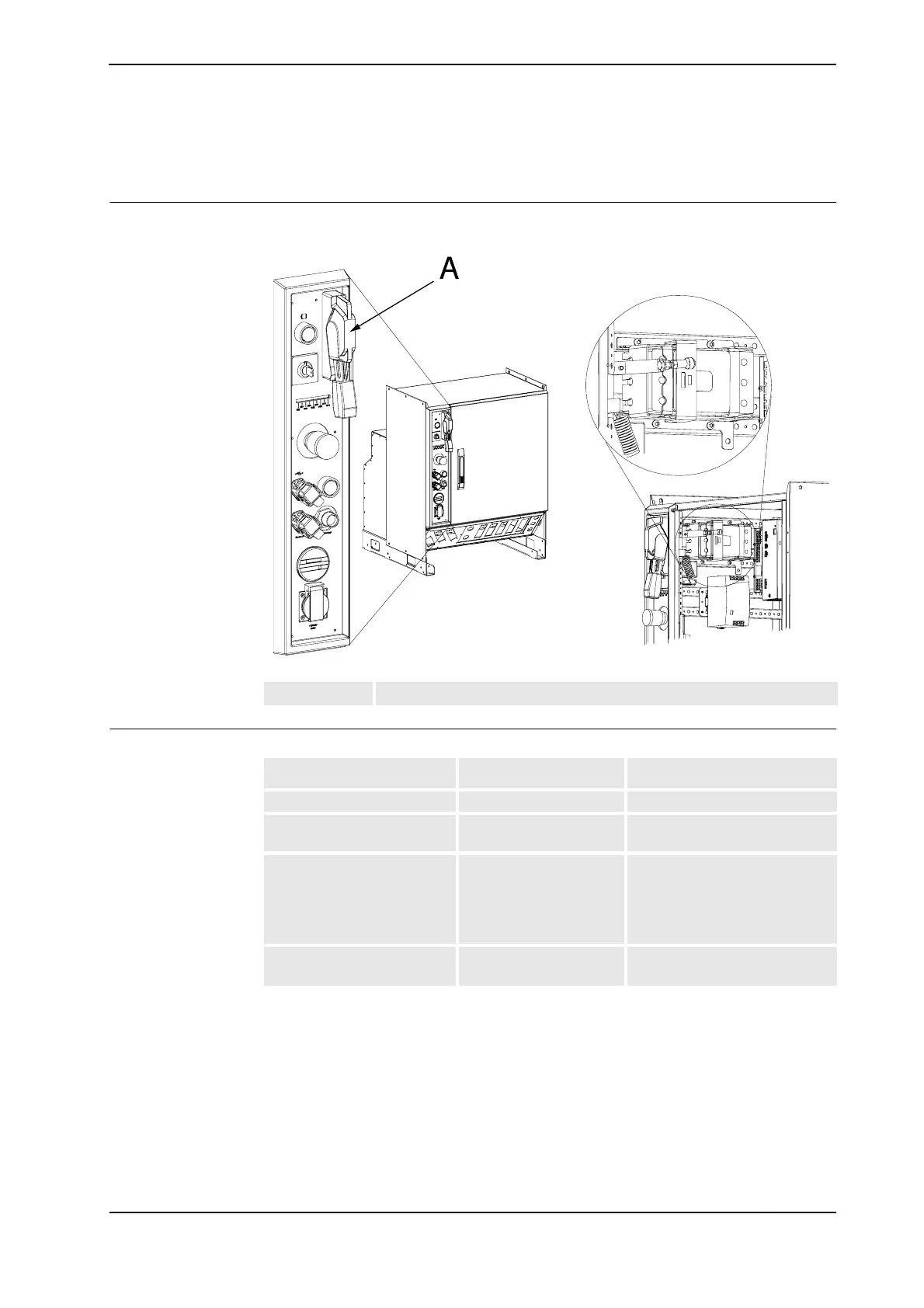

The Flange disconnect unit is located as shown in the illustration below.
xx0600003133
Required equipment
A Flange disconnect
Equipment Art. no. Note
Flange disconnect 3HAC027113-001
Standard toolkit The contents are defined in
section Standard toolkit!
Other tools and procedures
may be required. See
references to these
procedures in the step-by-
step instructions below.
These procedures include
references to the tools needed.
Circuit diagram See Circuit Diagram on page
341.
Continues on next page
