2 Installation and Commissioning, IRC5

2.9.10. Installation of Hot plug

1493HAC021313-001 Revision: K

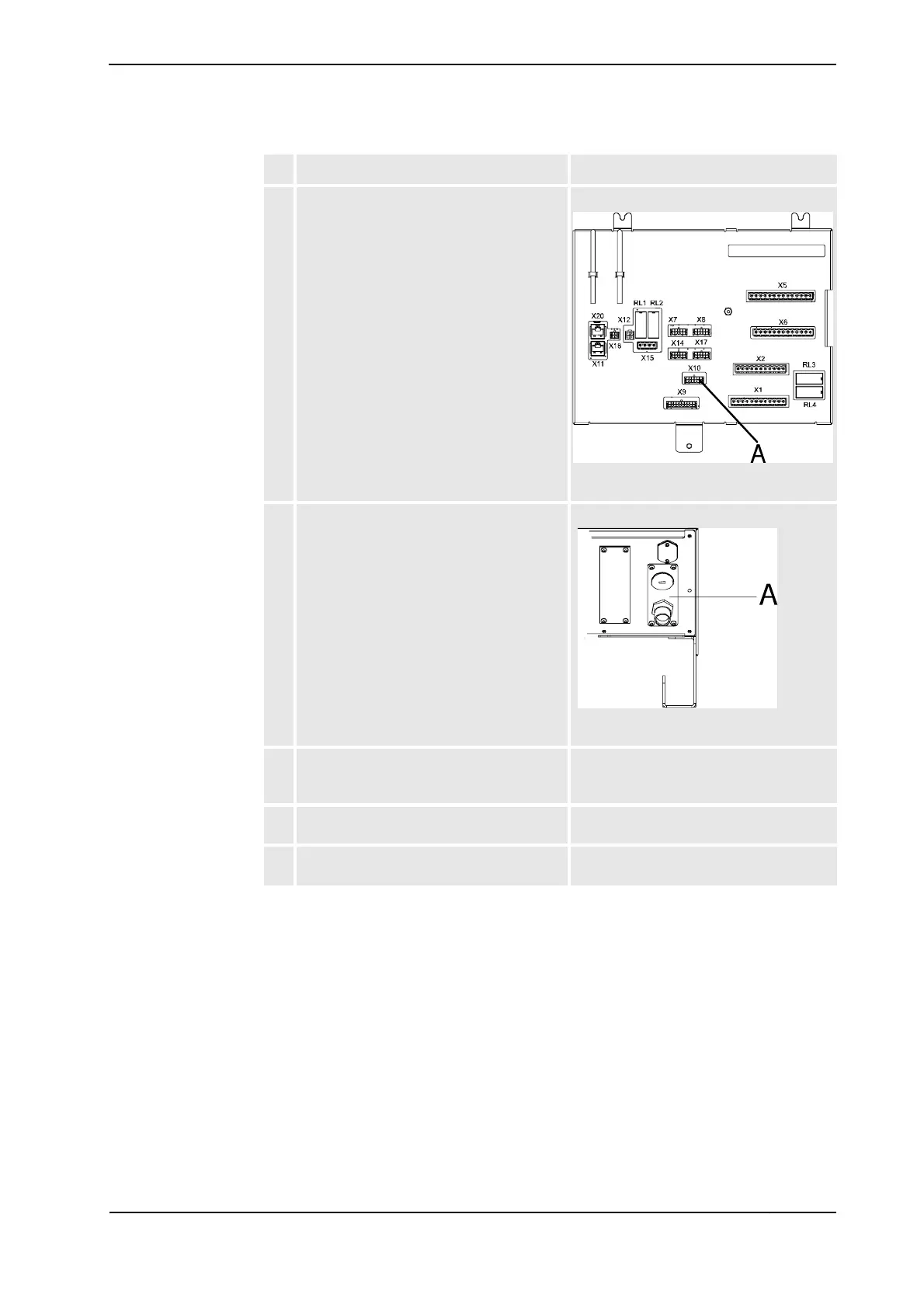

4. Disconnect signal cabling from the panel

board unit.

xx0600002946

• A: Connector X10

5. Remove the cover plate with the

FlexPendant connector and harness.

xx0600002954

•A: Cover plate

6. Fit the new cover plate with FlexPendant

connector and hot plug button with harness

into the empty slot.

7. Connect the ethernet connector for

FlexPendant to the computer unit.

8. Connect the signal connector A21.X10 to

the panel board unit.

Action Note/Illustration

Continued

Continues on next page
