2 Installation and Commissioning, IRC5

2.9.13. Installation of Remote Service

1673HAC021313-001 Revision: K

Procedure

The following procedure details how to connect the Remote Service antenna.

Action Note/illustration

1. Connect the antenna cable to the adapter

cover plate on the controller.

Use tightening torque 0.8 - 1.1 Nm.

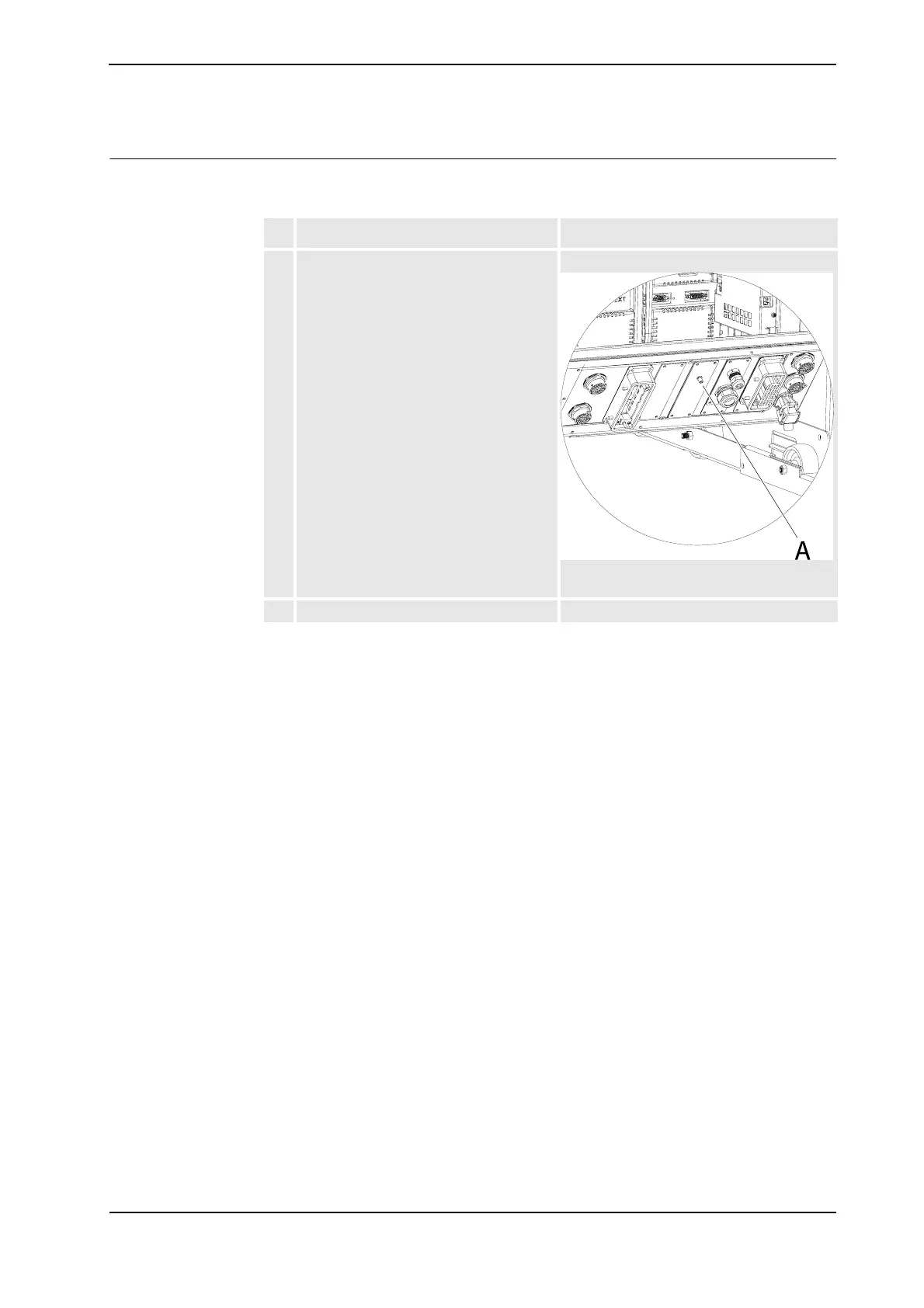

xx0800000095

• A: Antenna connector

2. Place the antenna on top of the controller.

Continued
