4 Repair activities, controller IRC5
4.10. Replacement of computer unit DSQC639
2293HAC021313-001 Revision: K
© Copyright 2004-2008 ABB. All rights reserved.

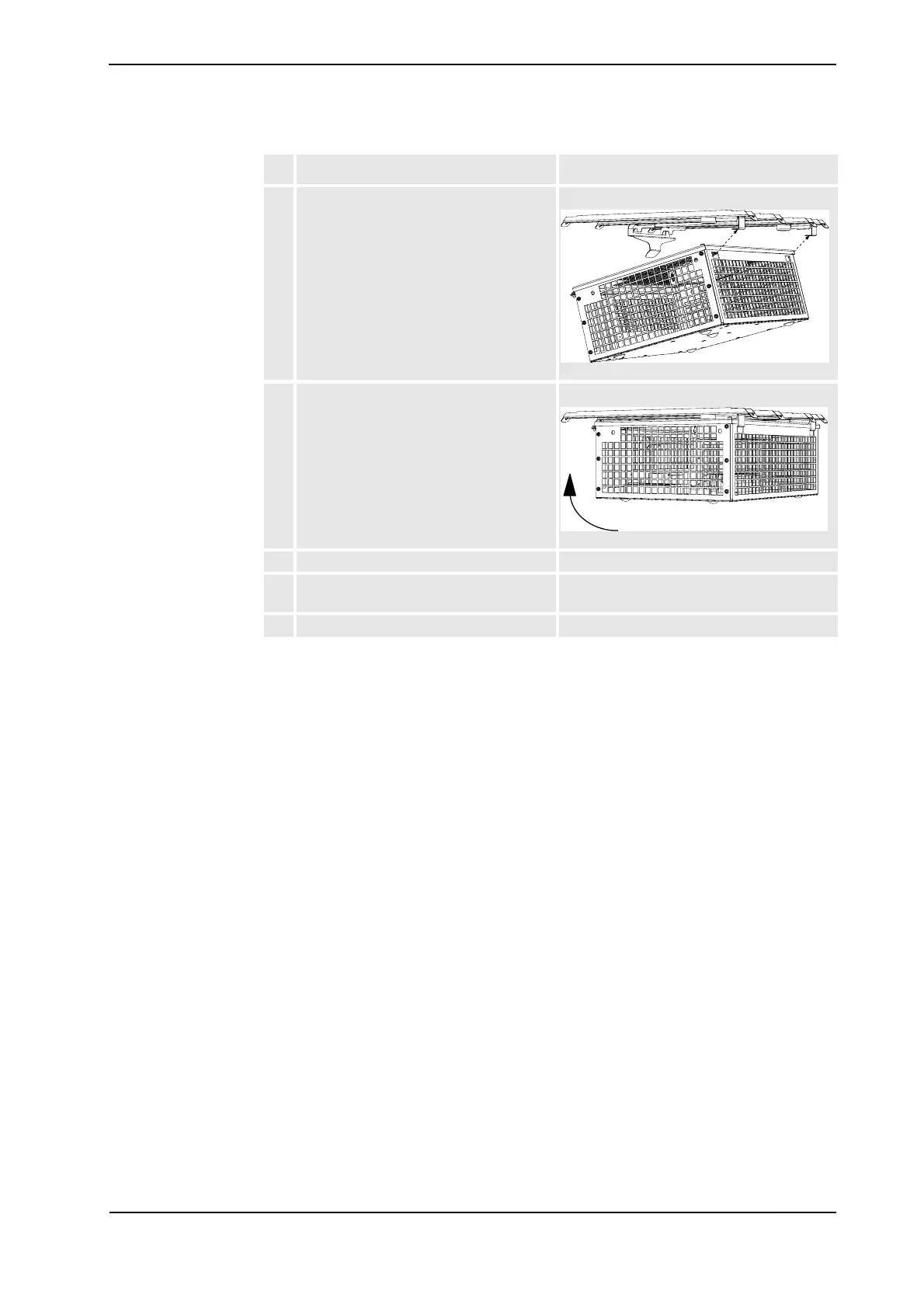

3. Fit the computer unit in position
xx0600002967
4. Push the computer unit up until the spring
lock snaps into position.
xx0600002968
5. Refit the transportation screw.
6. Reconnect all connectors to the computer
unit.
7. Refit the front with the Panel Board Unit.
Action Note/Illustration
Continued
