4 Repair activities, controller IRC5

4.11. Replacement of motherboard in computer unit DSQC623

3HAC021313-001 Revision: K232

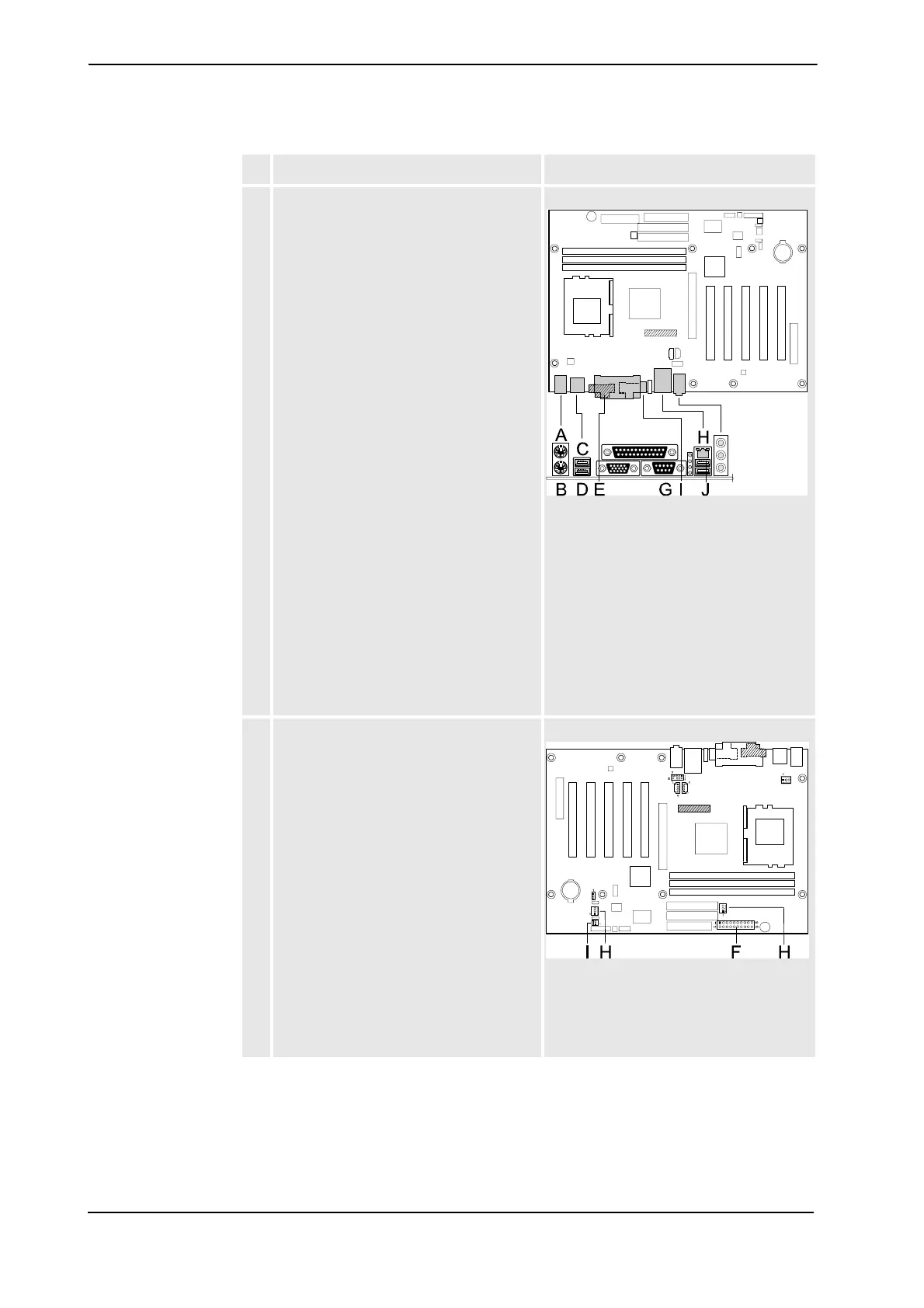

7. Disconnect all connectors from the

computer unit.

xx0300000340

Connectors:

• A: mouse cableNot used!

• B: keyboard cableNot used!

•C: USB 1

•D: USB 3

• E: VGANot used

• G: serial port ANot used

•H: LAN

• I: USB 2Not used

• J: USB 0Not used

8. Disconnect the connectors from the moth-

erboard.

xx0300000341

Connectors:

•F: power

• H: system fan

• I: front panel

Action Note/Illustration

Continued

Continues on next page
