4 Repair activities, controller IRC5
4.16. Replacement of fieldbus adapter in the computer unit DSQC639
2553HAC021313-001 Revision: K
© Copyright 2004-2008 ABB. All rights reserved.
5. Identify the fieldbus adapter. The barcode sticker contains information
on type designation.
6. Disconnect the cable to/from the fieldbus
adapter.
7. Loosen the attachment screws (2 psc) on
front of the fieldbus adapter to release the
fastening mechanism.
NOTE!
Only loosen the attachment screws. Do not
remove them.

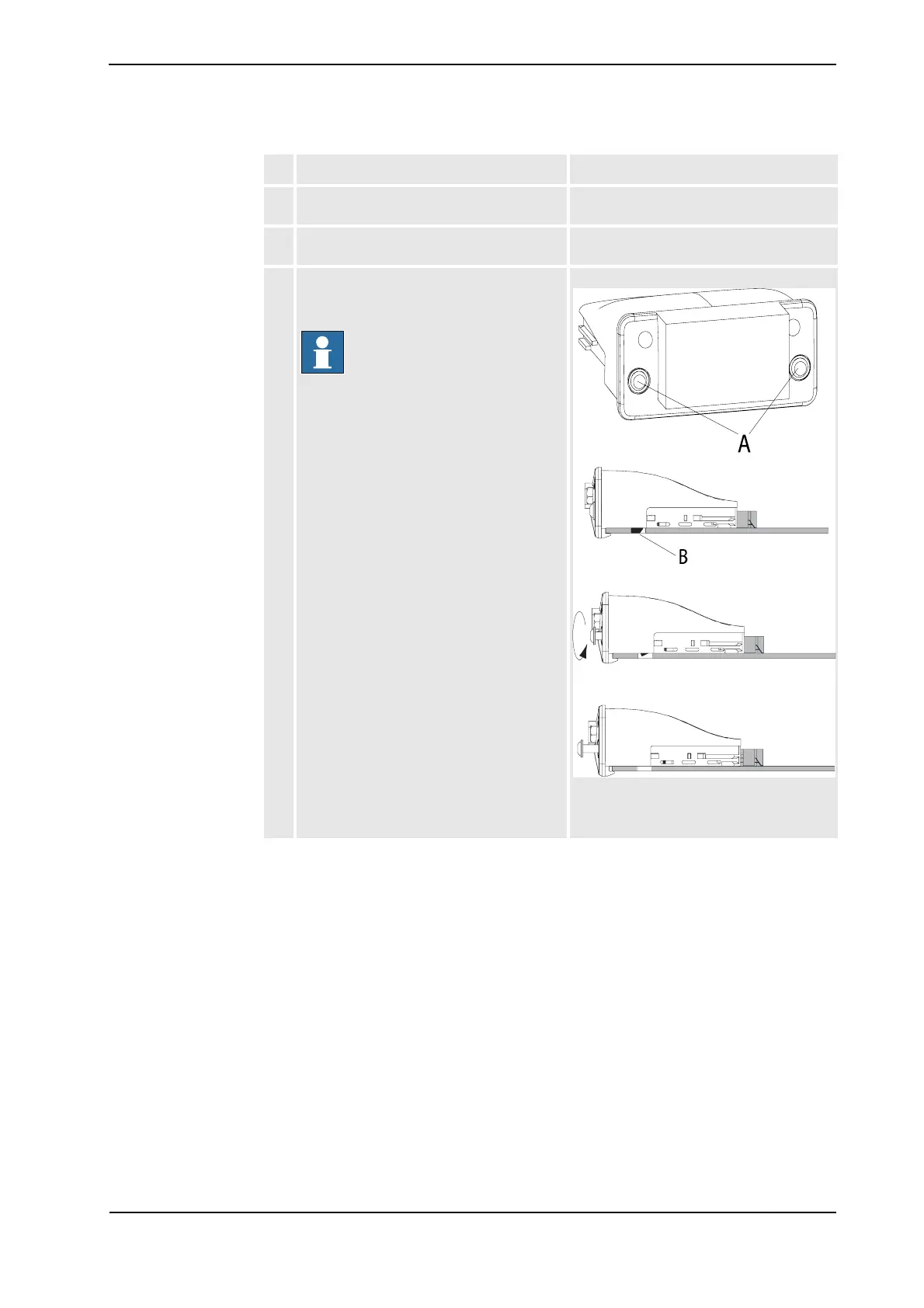

xx0700000193
• A: Attachment screws (2 pcs)
• B: Fastening mechanism
Action Note/Illustration
Continued
Continues on next page
