4 Repair activities, controller IRC5
4.18. Replacement of fan in computer unit DSQC639
2633HAC021313-001 Revision: K
© Copyright 2004-2008 ABB. All rights reserved.
Removal (old design of the computer unit DSQC 639)
The procedure below details how to remove the fan in the computer unit.
Action Note/Illustration
1.
DANGER!
Before any work inside the cabinet, please
observe the safety information in section
DANGER - Make sure that the main power
has been switched off! on page 28.
2.
esd
WARNING!
The unit is sensitive to ESD, before handling
the unit please observe the safety information
in section WARNING - The unit is sensitive to
ESD! on page 29
3. Remove the computer unit. Detailed in section Replacement of
computer unit DSQC639 on page 226.
4. Open the computer unit.
WARNING!
Be careful with the fan cable when opening
and removing the cover plate. The fan cable
must not be stretched.
Detailed in section Replacement of
motherboard in computer unit
DSQC639 on page 235.
5. Disconnect the fan cable from the mother-
board.
6. Remove the attachment screw.

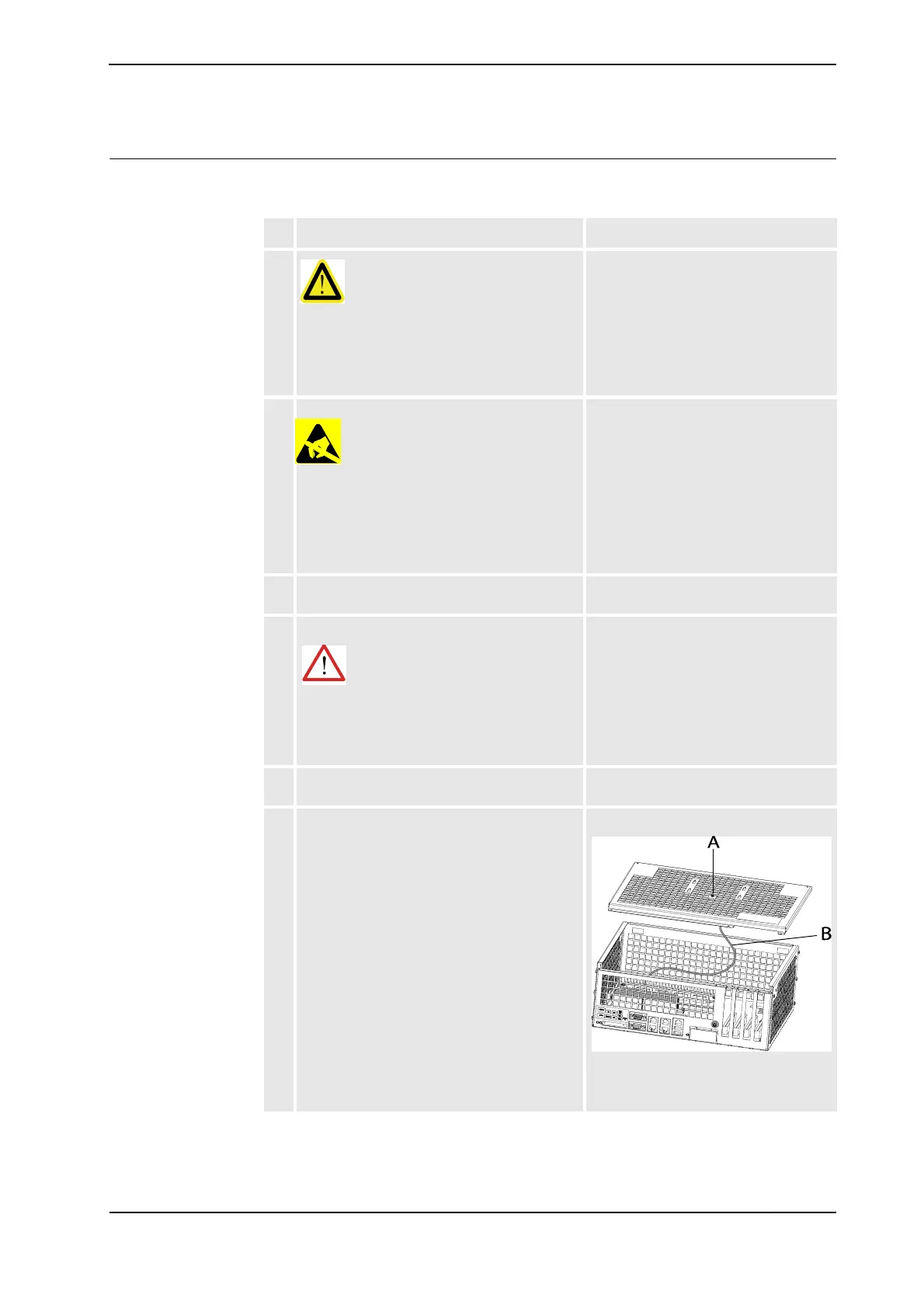

xx0600002919
• A: attachment screw (1 pcs)
• B: fan cable
Continued
