4 Repair activities, controller IRC5
4.20. Replacement of Compact Flash memory in computer unit DSQC639
2733HAC021313-001 Revision: K
© Copyright 2004-2008 ABB. All rights reserved.
Removal
The procedure below details how to remove the Compact Flash memory from the computer
unit.
Compact Flash 2GB DSQC 656 2GB
NOTE! Only use Compact flash memory
supplied by ABB.
Includes ABB Vx-Works boot image
software to correctly reboot the robot
controller.
See Computer unit DSQC 639 parts on
page 325.
Standard toolkit
Other tools and procedures may be required.
See references to these procedures in the step-
by-step instructions below.
Circuit diagram See Circuit Diagram on page 341
Equipment Note
Action Note/Illustration
1.
DANGER!
Before any work inside the cabinet, please
observe the safety information in section
DANGER - Make sure that the main power has
been switched off! on page 28.
2.
esd
WARNING!
The unit is sensitive to ESD, before handling
the unit please observe the safety information
in section WARNING - The unit is sensitive to
ESD! on page 29

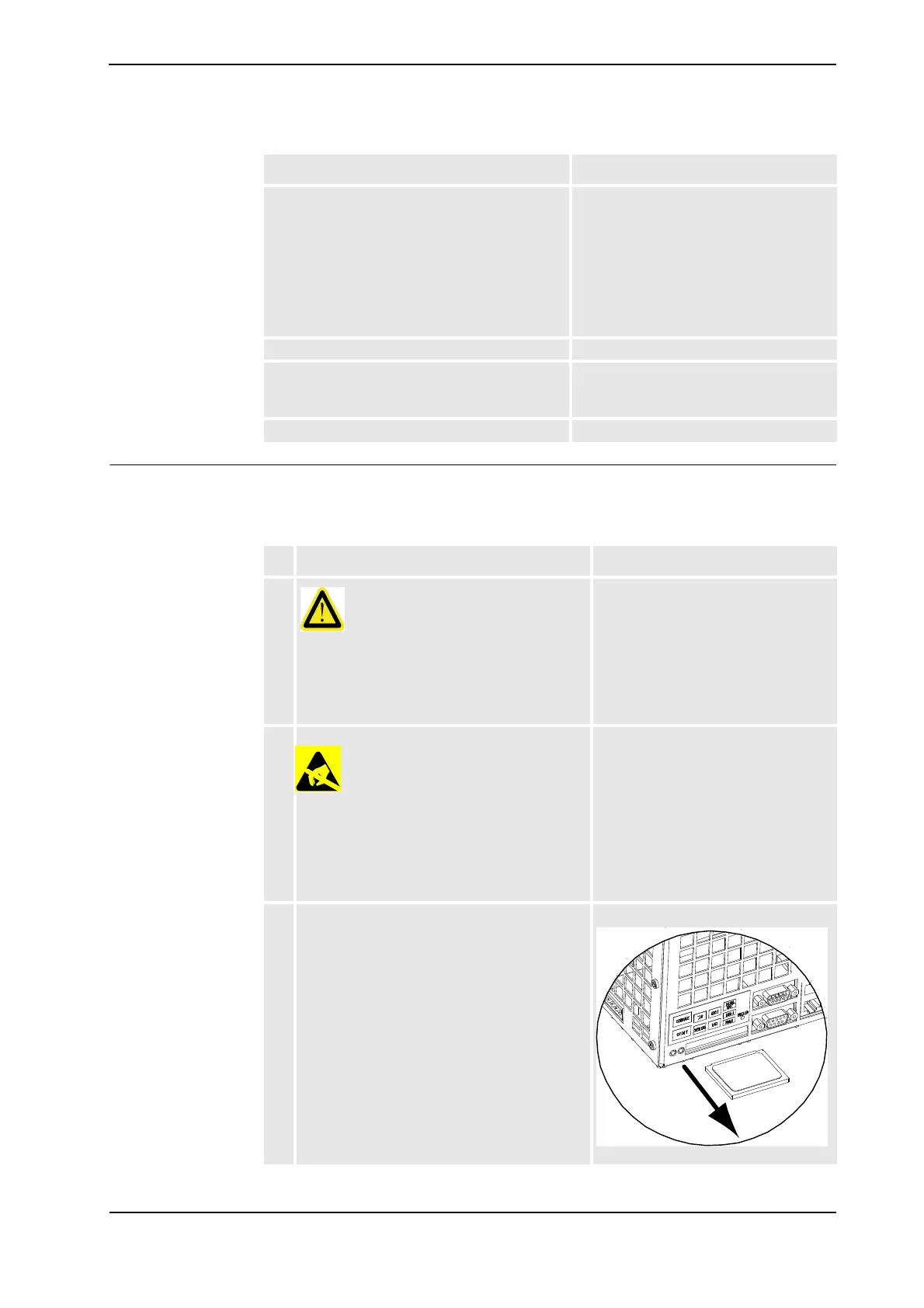

3. Gently, pull the Compact Flash memory out in
arrow direction.
xx0600002923
Continued
