4 Repair activities, controller IRC5
4.23. Replacement of Axis computer
2833HAC021313-001 Revision: K
© Copyright 2004-2008 ABB. All rights reserved.
Refitting
The procedure below details how to refit the axis computer.
2.
esd
WARNING!
The unit is sensitive to ESD, before handling the
unit please observe the safety information in
section WARNING - The unit is sensitive to ESD!
on page 29
3. Disconnect all connectors from the axis
computer.
NOTE!
Make a note of any connections,
4. Remove the attachment screws.

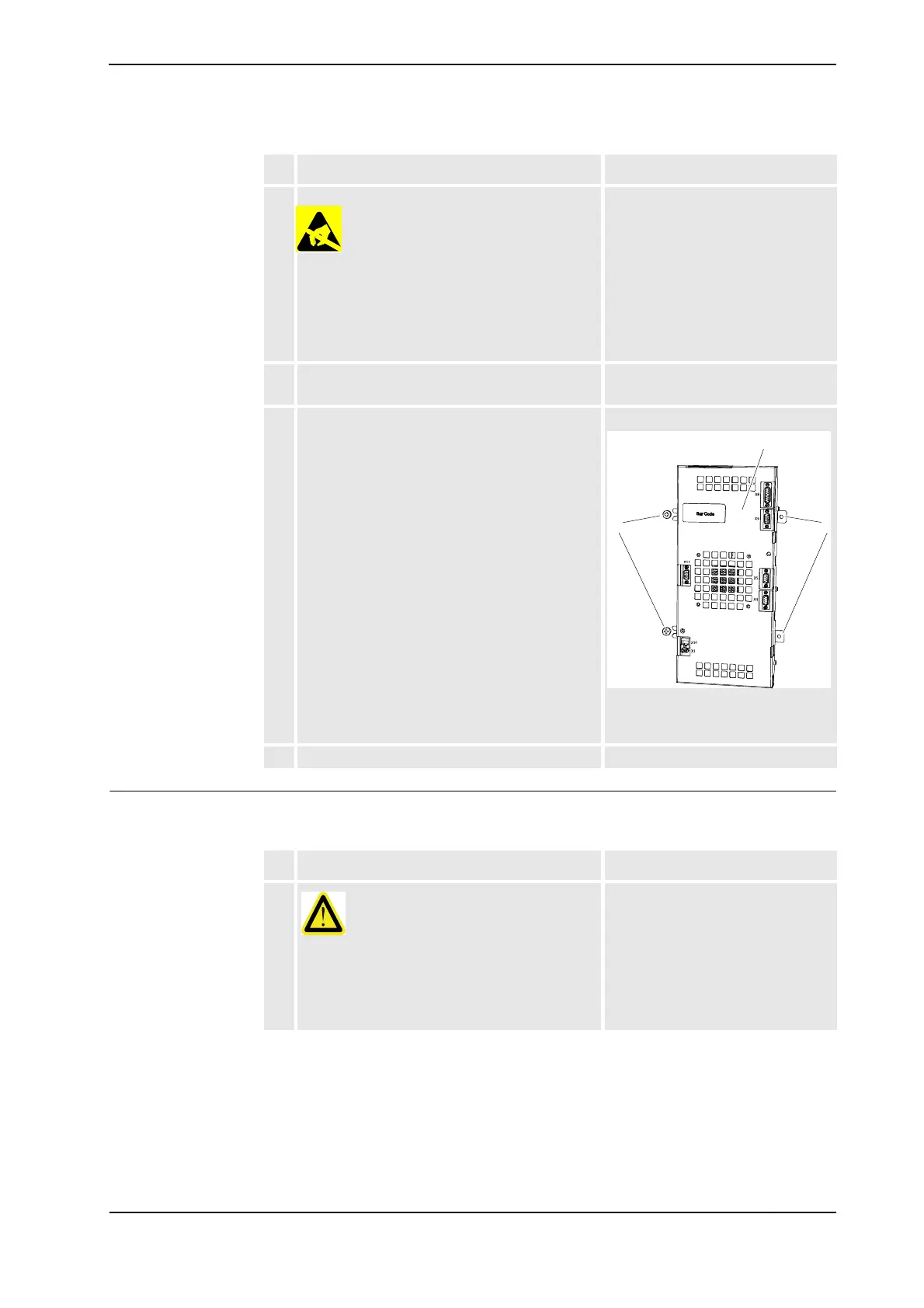

xx0500002002
• A: axis computer
• B: attachment screws
5. Remove the axis computer.
Action Note/Illustration
Action Note/Illustration
1.
DANGER!
Before any work inside the cabinet, please
observe the safety information in section
DANGER - Make sure that the main power has
been switched off! on page 28.
Continued
Continues on next page
