4 Repair activities, controller IRC5
4.24. Replacement of EPS board DSQC 646
3HAC021313-001 Revision: K288
© Copyright 2004-2008 ABB. All rights reserved.

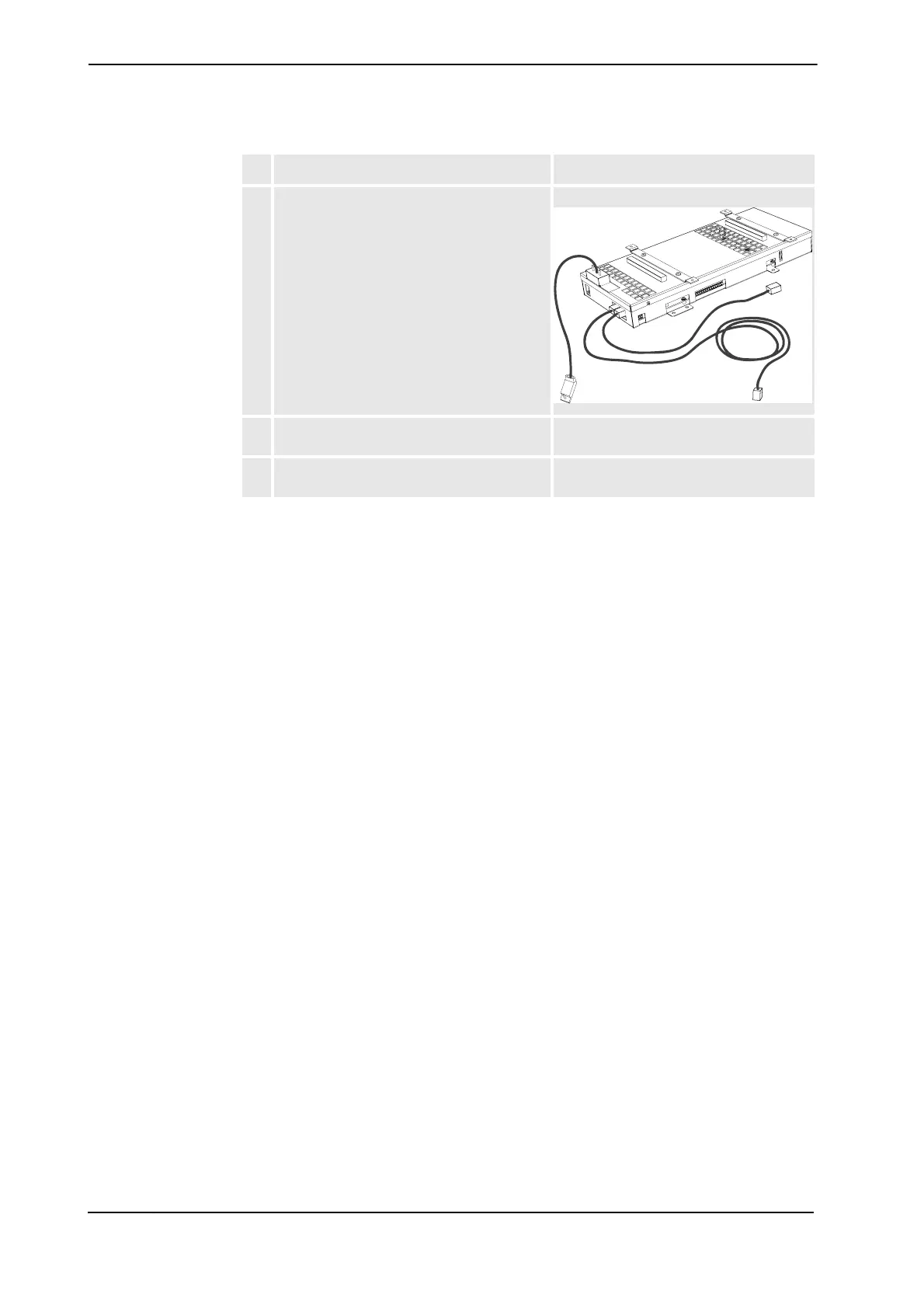

4. Connect the short SMB cable and both
Ethernet cables to the EPS board before
mounting the board. These connections
may be difficult to reach once the board is
mounted.
The two Ethernet connectors on the EPS
board are interchangeable (it does not
matter which is connected to the main
computer and which is connected to the axis
computer).
xx0600003303
5. Refit the EPS board and the axis computer
(see Removal on page 285).
6. Refit all the cables (see Removal on page
285).
Action Note/illustration
Continued
