4 Repair activities, controller IRC5
4.28. Replacement of drive system fans
3HAC021313-001 Revision: K302
© Copyright 2004-2008 ABB. All rights reserved.
2. Reconnect the connector to the fan.
3. Refit the fan by placing the attachments in
the back of the fan housing in the grooves.

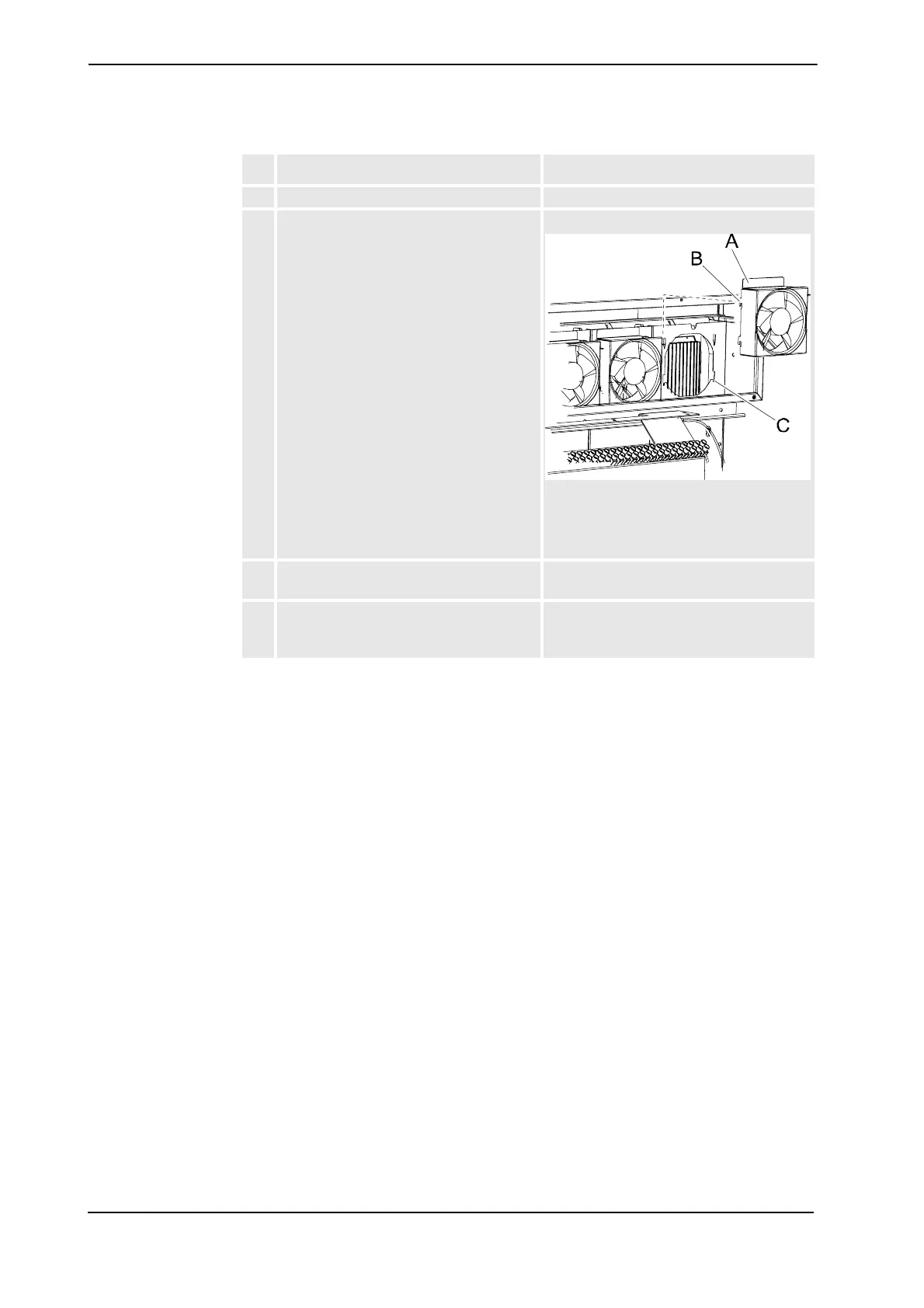

xx0500002015
•A: fan
• B: attachments
•C: grooves
4. Refit the cover and the attachment
screws.
5. Refit the moist dust filter magazine.
(Option)
How to refit the moist dust filter magazine
is detailed in section Replacement of moist
dust filter on page 173.
Action Note/illustration
Continued

ABB IRC5 Specifications

General

Type	Industrial Robot Controller
Model	IRC5
Protection Class	IP54
Power Supply	200-600 VAC, 50/60 Hz
Communication Protocols	PROFIBUS, PROFINET, DeviceNet
Programming Language	RAPID
Number of axes	Up to 36
Storage Temperature	-25°C to +55°C
Relative Humidity	95% (non-condensing)
