2 Installation and Commissioning, IRC5

2.5.5. Connecting power supply to the Single Cabinet Controller

593HAC021313-001 Revision: K

2. Fit the cable trough the cable gland and

tighten.

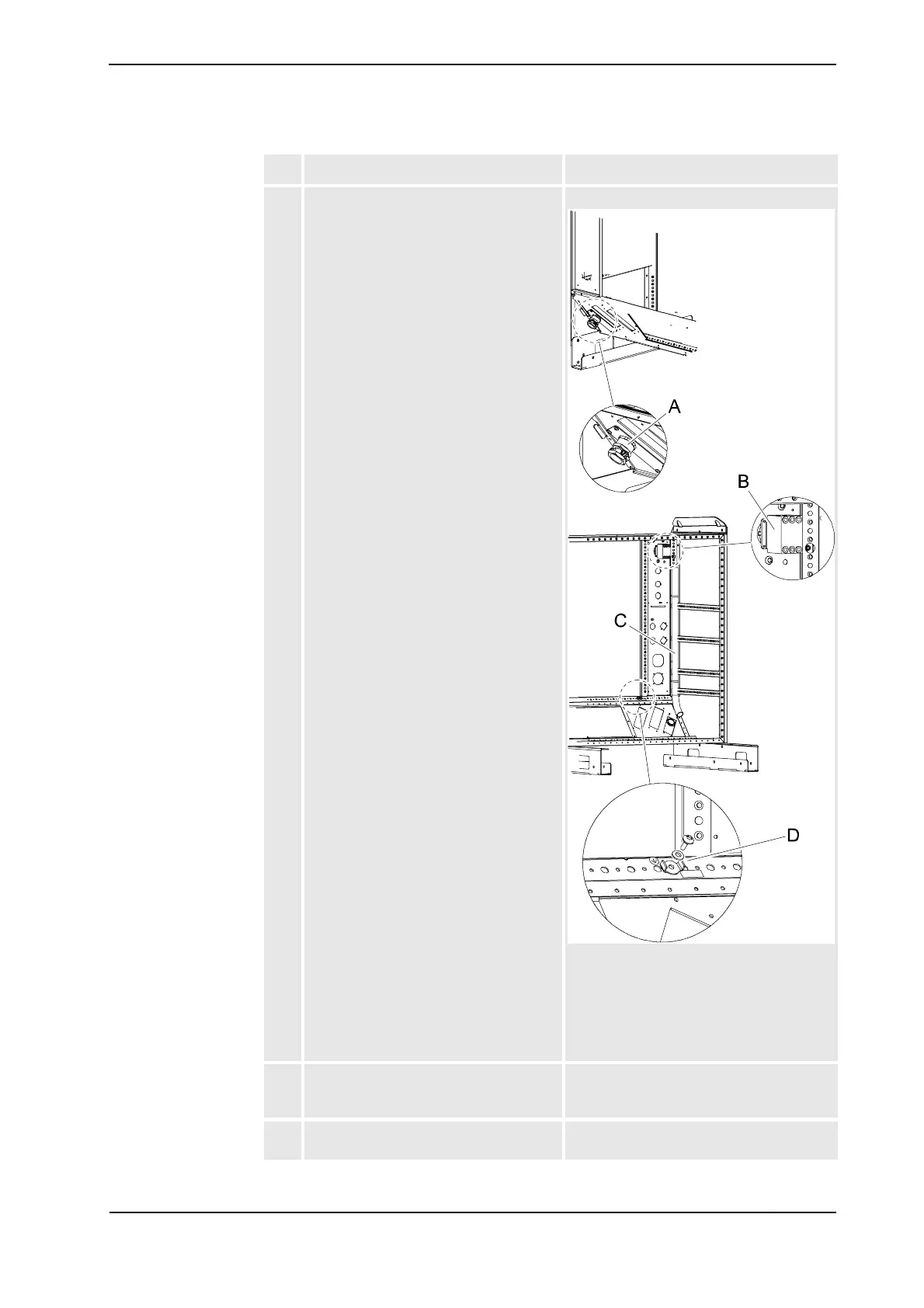

xx0500001870

Parts:

• A: cable gland

• B: rotary switch

• C: cable pipe

• D: grounding point

3. Strip the insulation on the power supply

cable long enough to reach the rotary

switch.

4. Connect the ground cable at the

grounding point.

See illustration above. Tightening torque,

4.5Nm.

Action Note/Illustration

Continued

Continues on next page
