6-10 Pneumatic Subsystem
Pneumatic Subsystem Components 5DX Series 3

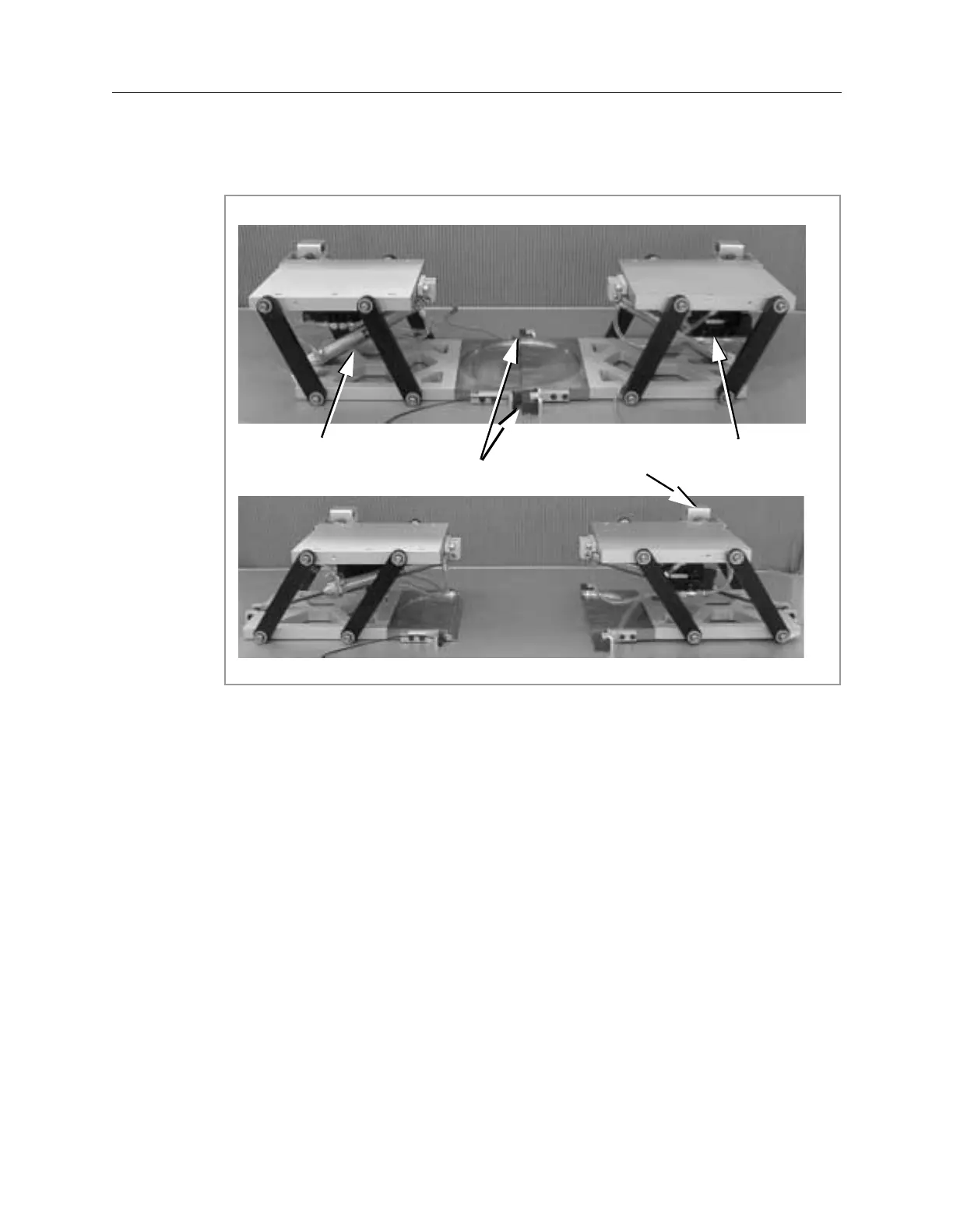

Shown in Figure 6-6 are the inner barrier assemblies (photo) and their various
components.
Figure 6-6: Inner Barrier Assemblies
Dual safety interlocks are used to ensure safety. There are two contact blocks and
two pin blocks on either barrier assembly The contact blocks are placed on the left
half of the inner barrier. The pin blocks are placed on the right half of the inner
barrier.
The replacement part numbers for the safety interlocks are as follows:
• E7200-07952 — Pin Block - goes on the Right Half of the Inner Barrier.
• E7200-07953 — Contact Block - goes on the Left Half of the Inner Barrier.
$LU9DOYH
(QFRGHU
6DIHW\,QWHUORFNV
3QHXPDWLF&\OLQGHU
