Agilent 5DX Service Guide 8-7
5DX Series 3 Image Acquisition Process

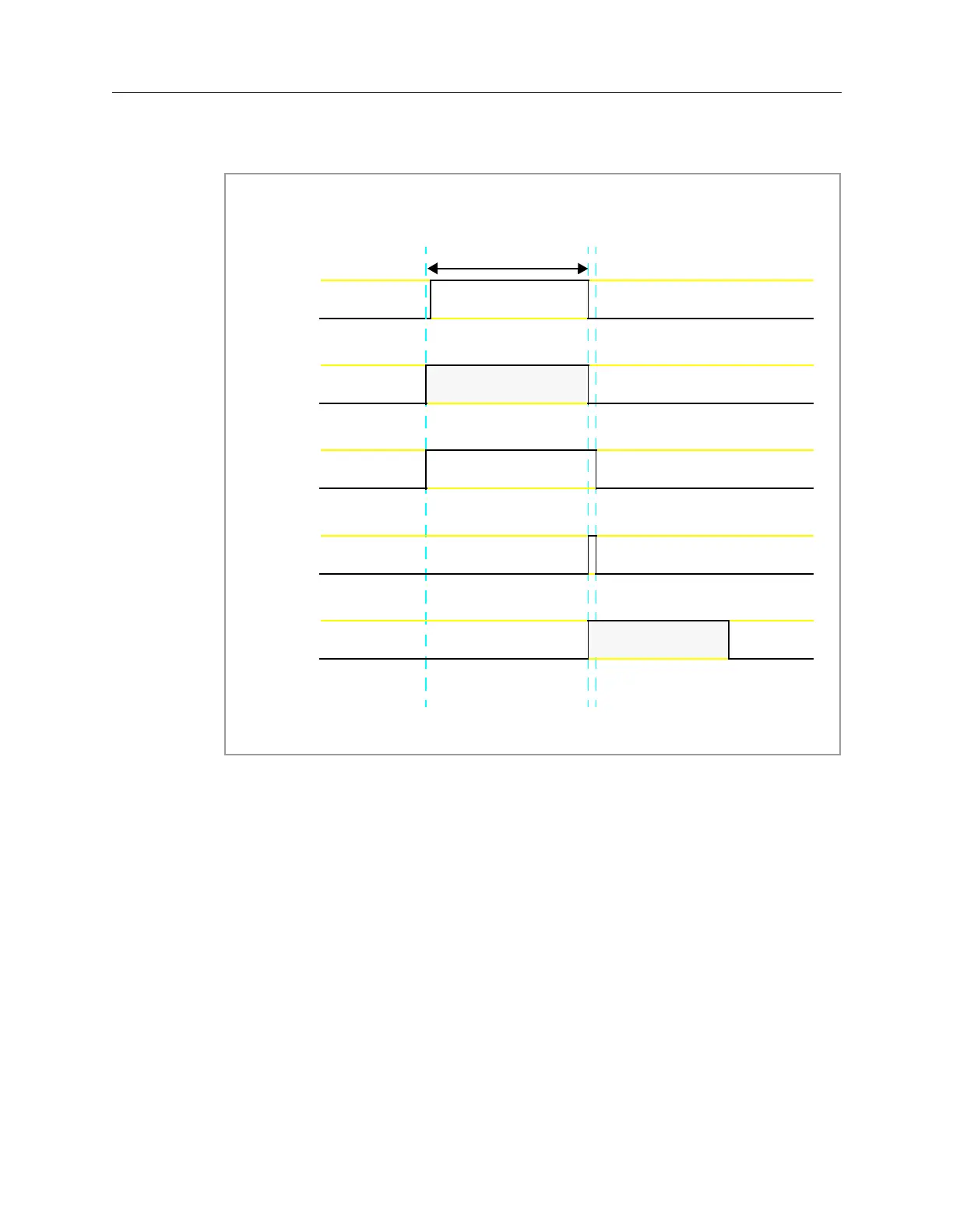

Figure 8-4: Image Acquisition Timing Diagram
A graphical representation of Image Acquisition is shown in Figure 8-4. Before an
image can be acquired, the System Controller arms the Frame Grabbers, refer to
the timing diagram shown in Figure 8-4. The Frame Grabbers are then ready to
start accepting image data from the X-ray Image Camera.
The System Controller then sends a signal to the Interface Card to begin a Frame
Acquisition Cycle. The Interface Card activates the External Trigger Pulse
allowing the X-ray Image Camera to gather an image. The image data gathered by
the X-ray Image Camera is sent to the Frame Grabbers.
80 milliseconds
times the number of
integration cycles
Frame
Grabber
$UPHG
1RW$UPHG
External
Trigger
$FWLYH
1RW$FWLYH
Switch
Banks
5HTXLUHG%DQN
'XPS5LQJ
Interrupt
$FWLYH
1RW$FWLYH
Data Out
'DWD2XW
1R'DWD
&DPHUD$FTXLULQJ
,PDJH
PVIRU[ELQQLQJ
PVIRU[ELQQLQJ
To Next Page
