Agilent 5DX Service Guide 10-21

5DX Series 3 Electronics Bay Maintenance

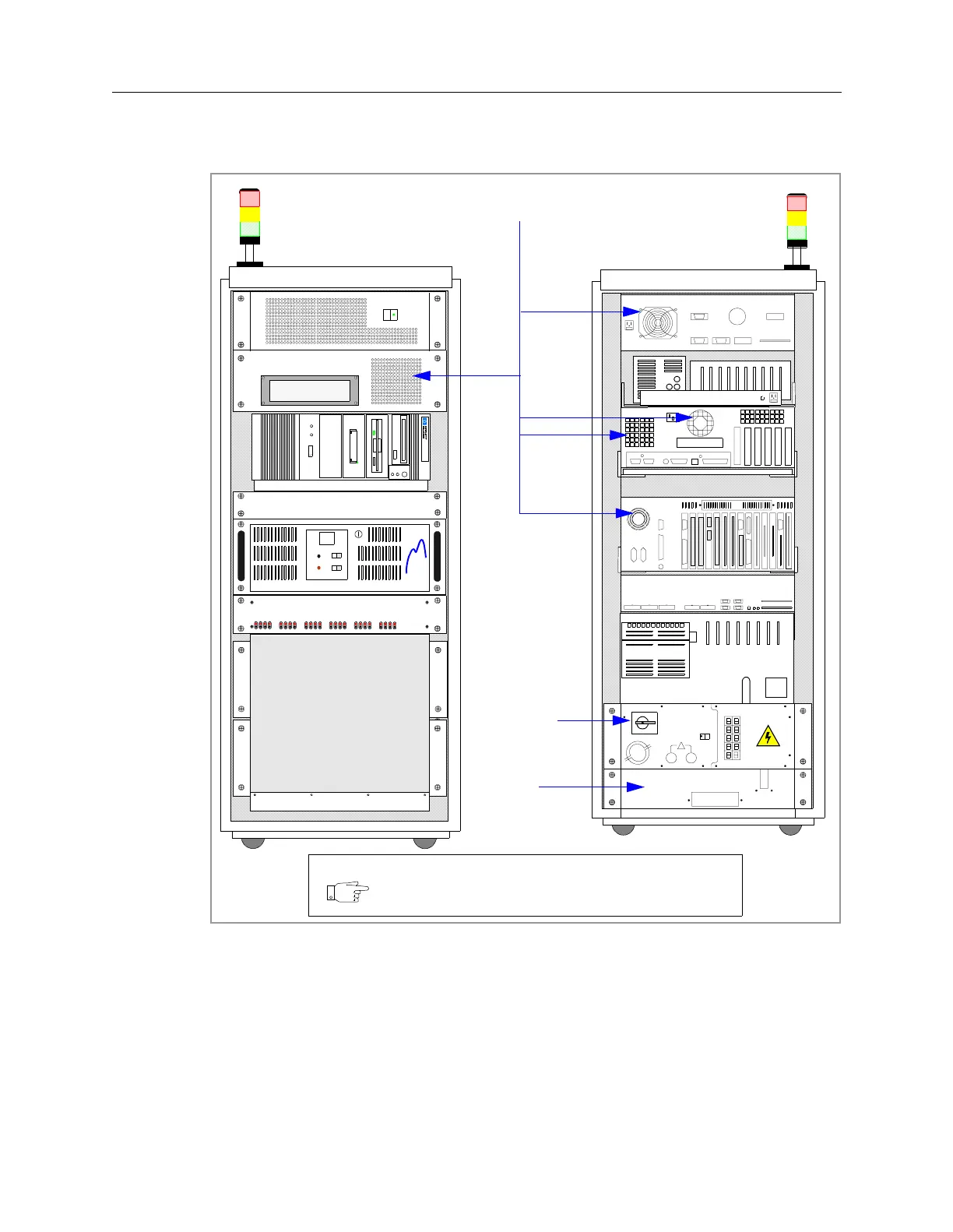

Figure 10-7: Electronics Bay Cooling Assemblies

The Electronics Bay is shown without the

front or rear doors.

127(

Cooling Fans

Front Rear

One fan located

behind the Laser

display unit

Two fans

located behind

the PDU
