Agilent Technologies U2000 Series Guide

1 Power Sensor Remote Operation
28 U2000 Series Programming Guide
Setting Measurement Limits
You can configure the power sensor to detect when a measurement is outside
of a predefined upper and/or lower limit value.
Limits are measurement display line based and can be applied to power
measurement.
Setting Limits
The power sensor can be configured to verify the power being measured
against an upper and/or lower limit value. The range of values that can be set
for lower and upper limits is –150.00 dBm to +230.00 dBm. The default upper
limit is +90.00 dBm and the default lower limit is –90.00 dBm.

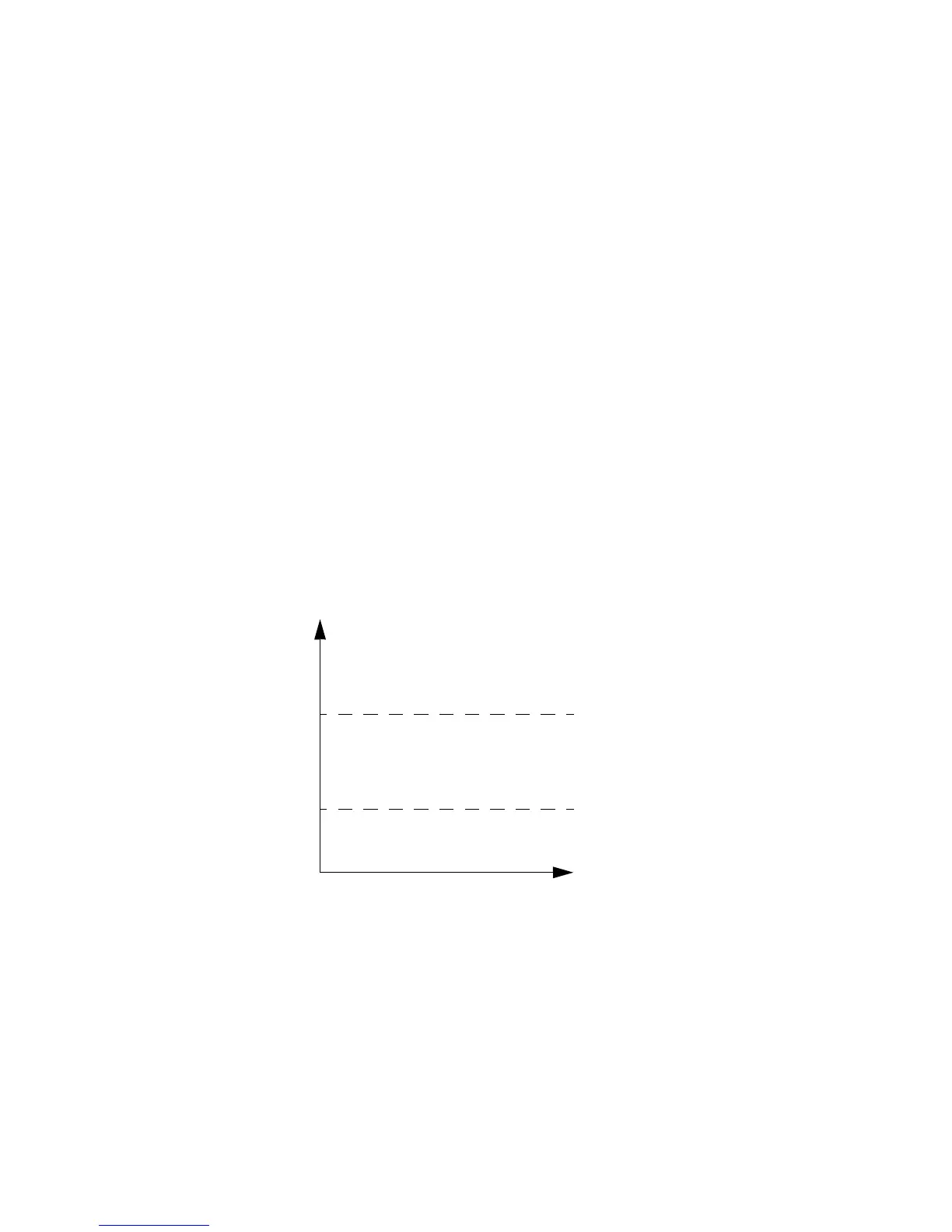

Figure 1-4 Limits Checking Results
+4 dBm
+10 dBm
Amplitude
Frequency
o
o
o
o
o
o
o
Fail
Fail
