7SENSe Subsystem
178 U2000 Series Programming Guide
[SENSe[1]]:CORRection:DCYCle|GAIN3[:INPut][:MAGNitude]
<numeric_value>
This command is used to set the duty cycle for the pulse power measurement
feature of the power sensor. Pulse power measurements average out any
aberrations in the pulse such as overshoot or ringing. The result returned for a
pulse power measurement is a mathematical representation of the pulse
power rather than an actual measurement.
The power sensor measures the average power in the pulsed input signal and
then divides the result by the duty cycle value to obtain a pulse power reading.
Entering a value using this command automatically turns the
[SENSe[1]]:CORRection:DCYCle|GAIN3:STATe command to ON.

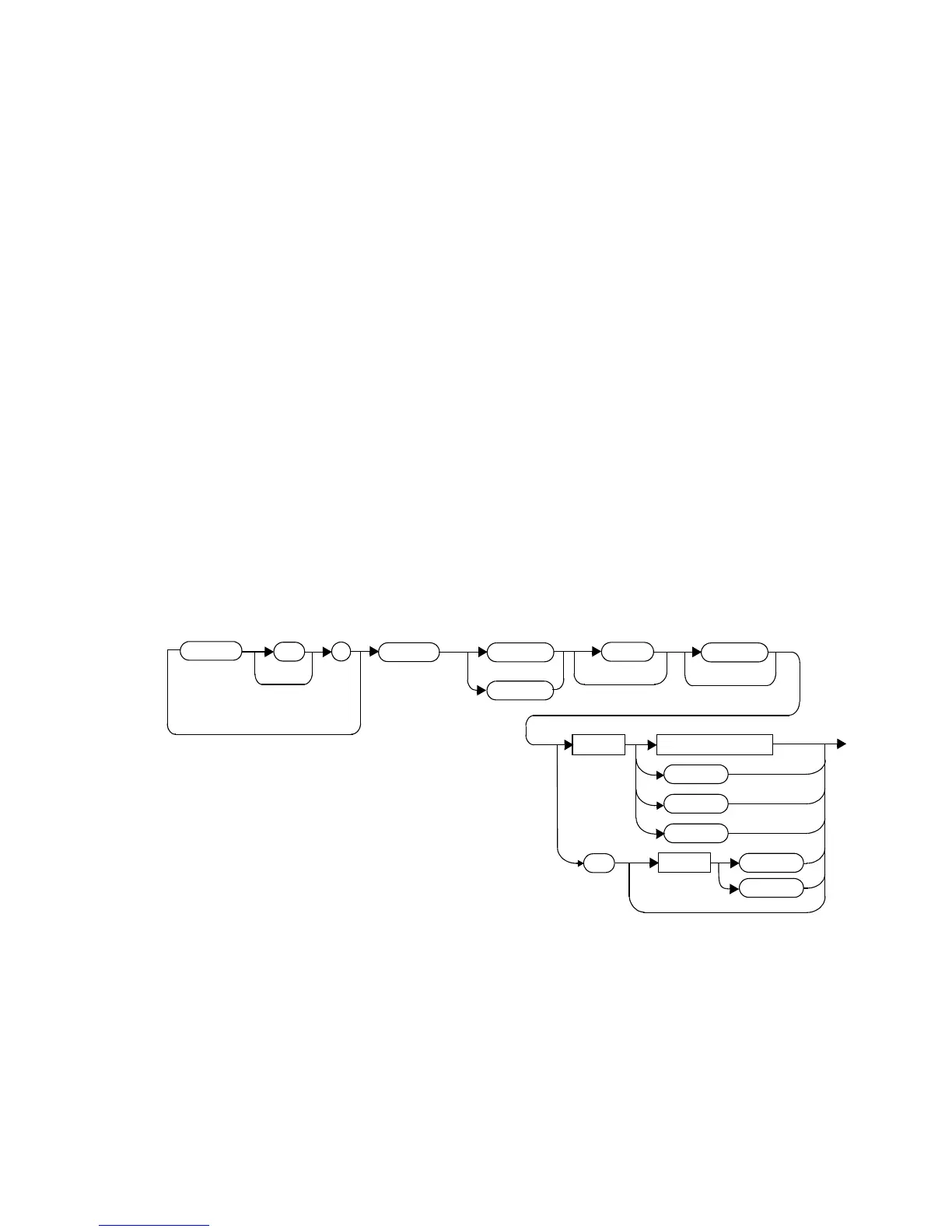

Syntax
