How Measurements are Calculated

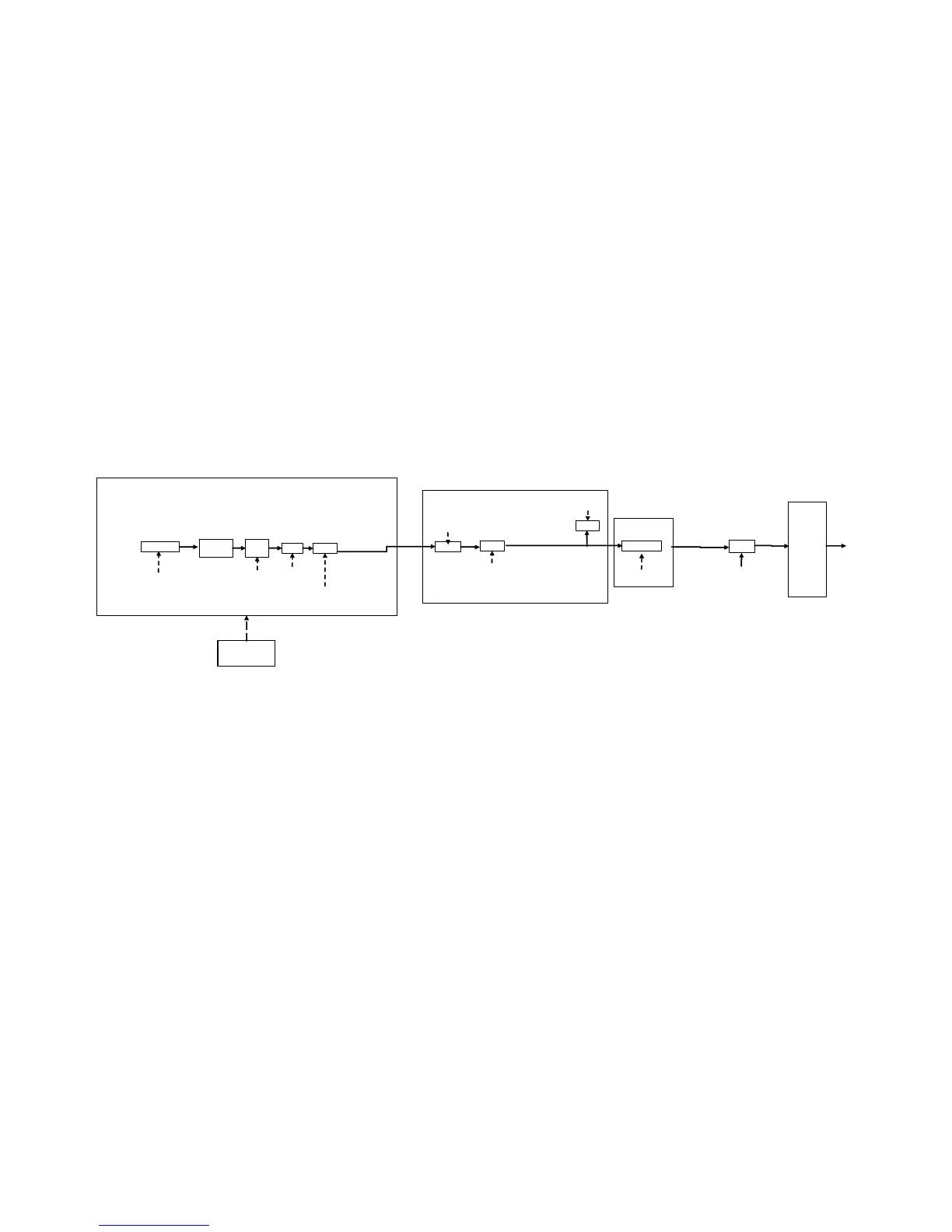

Figure 1- 5 details how measurements are calculated. It shows the order in
which the various power sensor functions are implemented in the
measurement calculation.
Figure 1-5 How Measurement are Calculated
The MEASure commands in this figure can be replaced with the FETCh? and
READ? commands.
TRIGger
UNIT1
Conversion
:POW
CALCulate1
Maths
Limits
:MATH
:LIM
Switch
:FEED
SENSe1
Sensor
Filter
Freq.
Corr.
Offset
:SPEed
:POW:AC:RANG
:POW:AC:RANG:AUTO
:DET:FUNC
:AVER[1]
:FREQ
:CORR:CFAC
:CORR:CSET
:CORR:GAIN2
Data
Selection
FORMat
MEAS?
READ?
FETC?
CONF
Switch
