Mitsubishi Program Port
Mitsubishi MELSEC-A Program Port

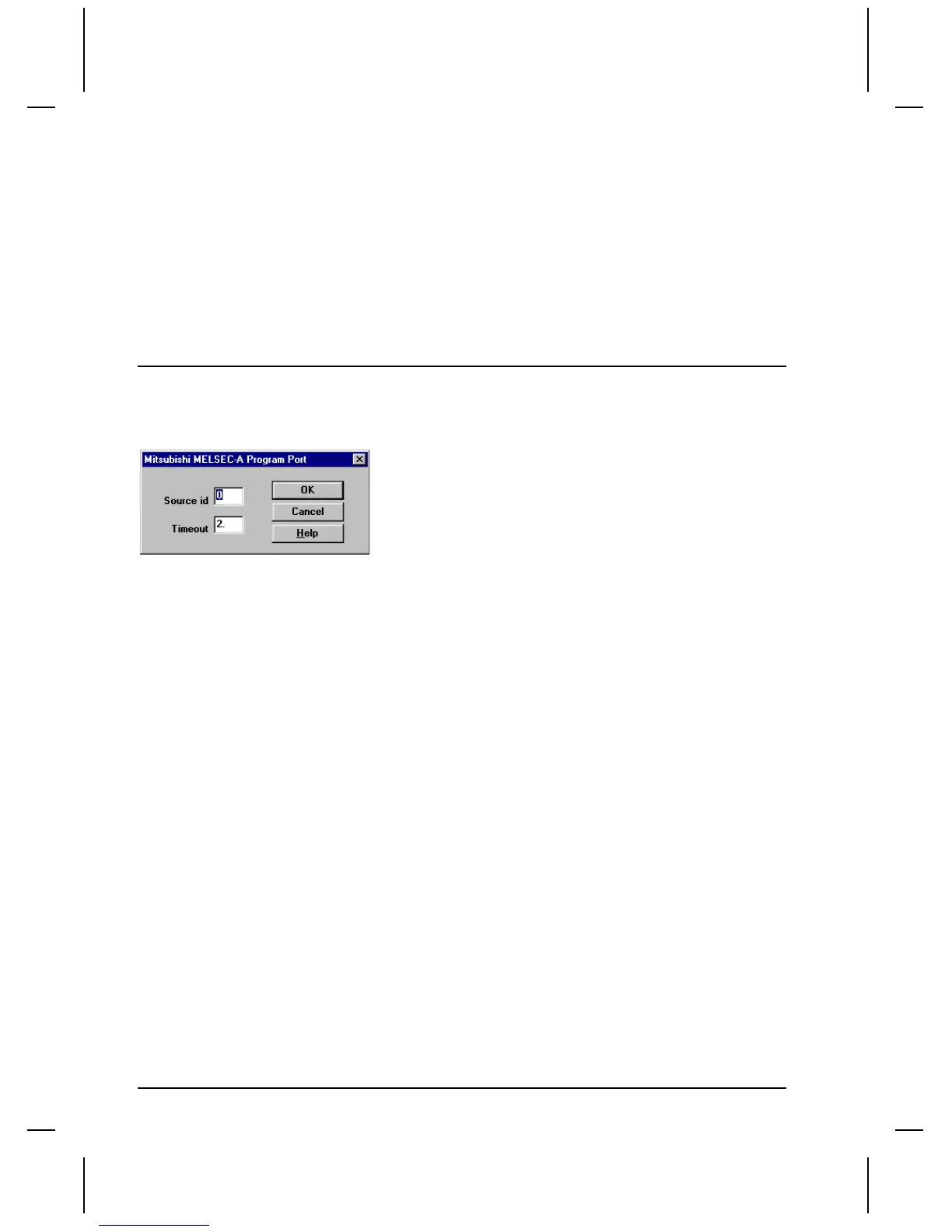

The drawing shows the setup dialog box for Mitsubishi MELSEC-A Program Port. The default setting
for Timeout is correct for most applications.
Serial Port Parameters for the Display
Click the Port button to display the Serial Parameters dialog. The following settings are recommended
for Mitsubishi MELSEC-A Program Port.
Elect. Format RS422/485 Full Duplex
Baud Rate 9600
Data Bits 8
Parity Odd
Stop Bits 1
Handshake None
The Programmable Logic Controller’s (PLC) switches should be set as follows:
03 OFF
04 ON
05 ON
06 OFF ---> 9600
07 ON
08 ON ---> 8 DATA BITS
09 OFF ---> NO PARITY
10 ON
11 OFF ---> 1 STOP
12 ON ---> SET CHKSUM
MODE = 1
HMI-CAB-C91/B Cable
Connect the HMI-CAB-C91 cable between the I/O port on the Quick Panel and the Program Port on
the PLC.
