QUICKDESIGNER GE Fanuc SNP •
••
• 95
Setup for using a GE Fanuc Series 90 PLC
Use the following procedure to ensure your target device is setup properly for the GE Fanuc Series 90
PLC. The procedure is in condensed format. Only the required settings are outlined. For additional
details, see Creating a New Project beginning on page 3.
Project Setup

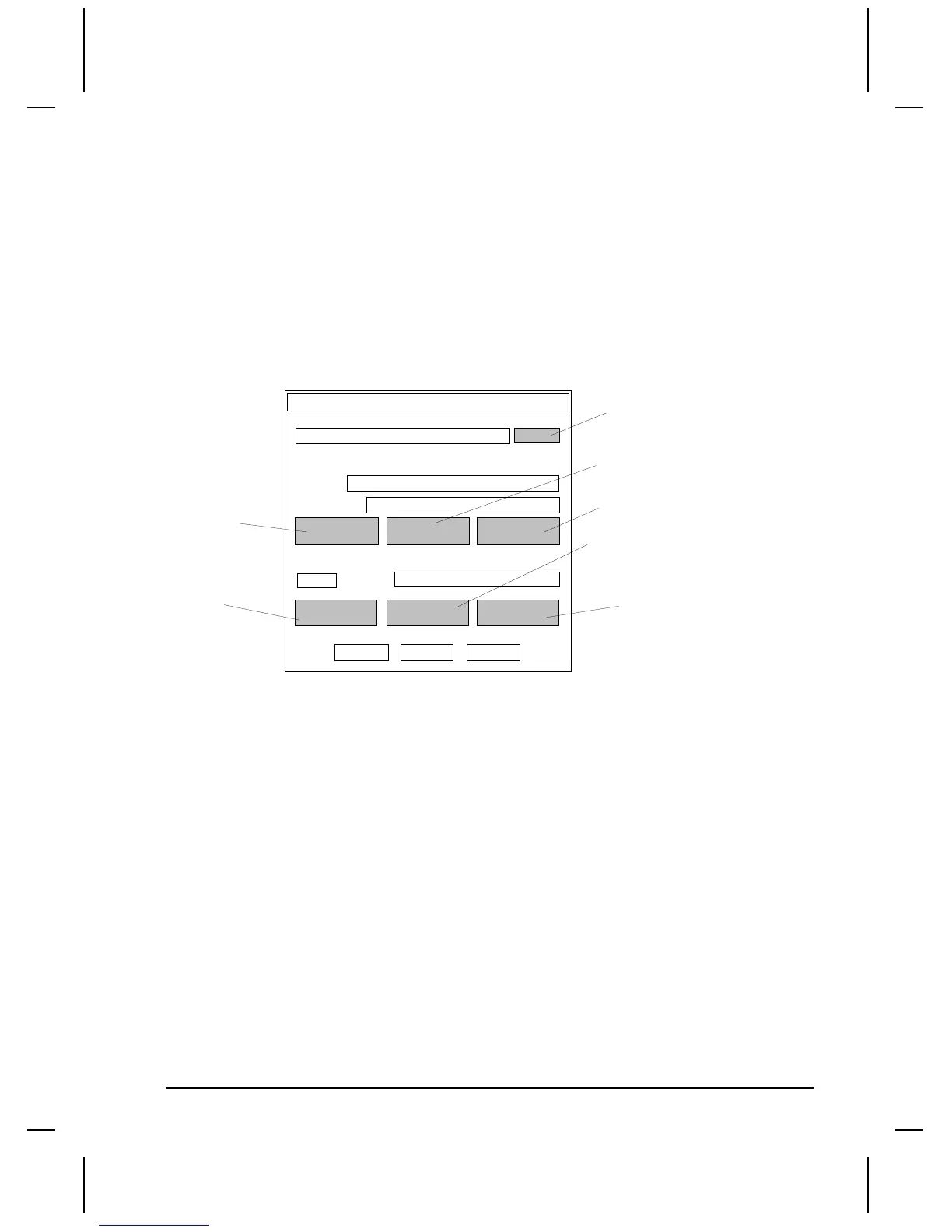

The drawing is a diagram of the Project Setup dialog box. Each button will display an additional dialog
box. Many settings are options and are not required to establish communications. Verify the Project
name and Display Device Model are correct. Leave the Initial Screen name blank.
Project name:
Display Device
Model
Initial Screen
Display
Touch
Print
More
PLC & Protocols
CN1
PLC Type
PLC Protocol name appears here
Port Protocol System
OK Cancel Help
Project Setup
Default Panel Name
Screen Saver Timeout
Panel Trigger Tag
Watchdog Tag
Watchdog timeout
PLC Protocol setup
Disable Beeper
Electrical Format
Serial Parameters
Project name appears in this field
Model description appears in this field
Project Notes
Print (Inactive)
PLC Type
Select the PLC type from the list box. (GE SNP). See PLC Type on page 5.
Port Button
Click the Port button to display the Serial Parameters dialog. The port values are automatically set to
standard default values. See Serial Parameters on page 6. The following settings are recommended for
GE SNP
Elect. Format RS422/485 Full Duplex (HMI-CAB-C82 or HMI-CAB-C93 Cable)
or RS232 (HMI-CAB-C53 Cable)
Baud Rate 19200
Data Bits 8
Parity Odd
Stop Bits 1
Handshake None
The Port Button for GE SNP has different settings if you are using a State Logic CPU. Change the
Parity setting from ODD for the Standard Logic CPU to NONE for the State Logic CPU. Make sure the
format is set to RS422/485.
