QUICKDESIGNER Siemens •
••
• 223
SIMATIC 3964R
This section describes the operation of the target display with a SIMATIC S5 RK 512 Computer Link
Module which uses the 3964R transmission procedure.

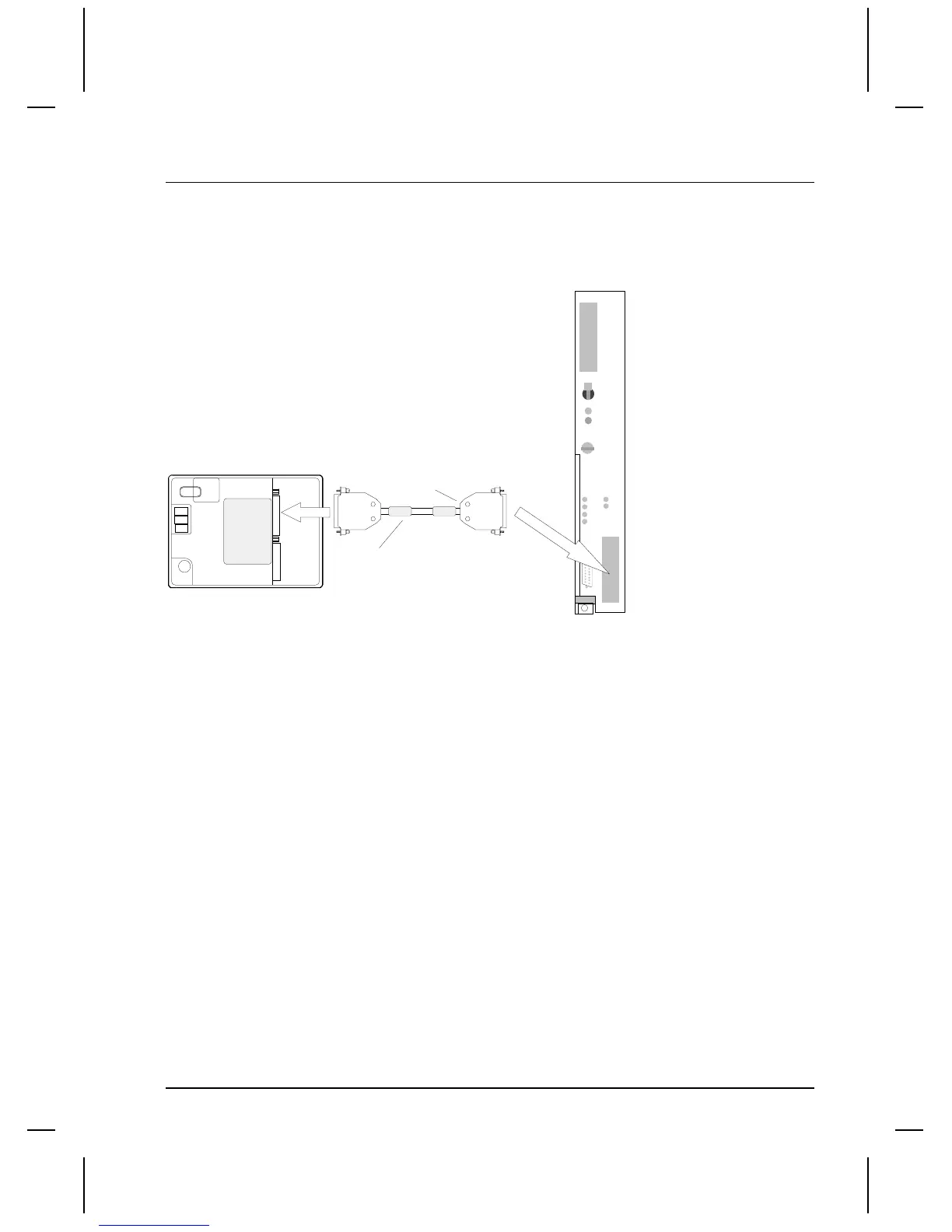

The following drawing shows a QuickPanel jr. connected to the interface submodule.
QUICKPANEL jr.
TO SUBMODULE
TO TCP DEVICE
HMI-CAB-C104
RUN
STOP
RUN
STOP
RESET
OVERALL
RESET
QVZ
ADF
ZYK
BASP
SI1
SI2
SI2
SI1
CPU928B
HMI-CAB-C104 Cable
This cable is used to connect a target display to a SIMATIC S5 RK 512 Computer Link Module.
This cable contains a circuit board which converts RS232 into current loop. Since this cable cannot be
made in the field, no cable diagrams are provided.
Setup for using Simatic S5 RK 512 Computer Link
Use the following procedure to ensure your target device is setup properly for the Simatic S5 RK 512
Computer Link. The procedure is in condensed format. Only the required settings are outlined. For
additional details, see Creating a New Project beginning on page 3.
