• Allen-Bradley QUICKDESIGNER
Allen-Bradley PLC5

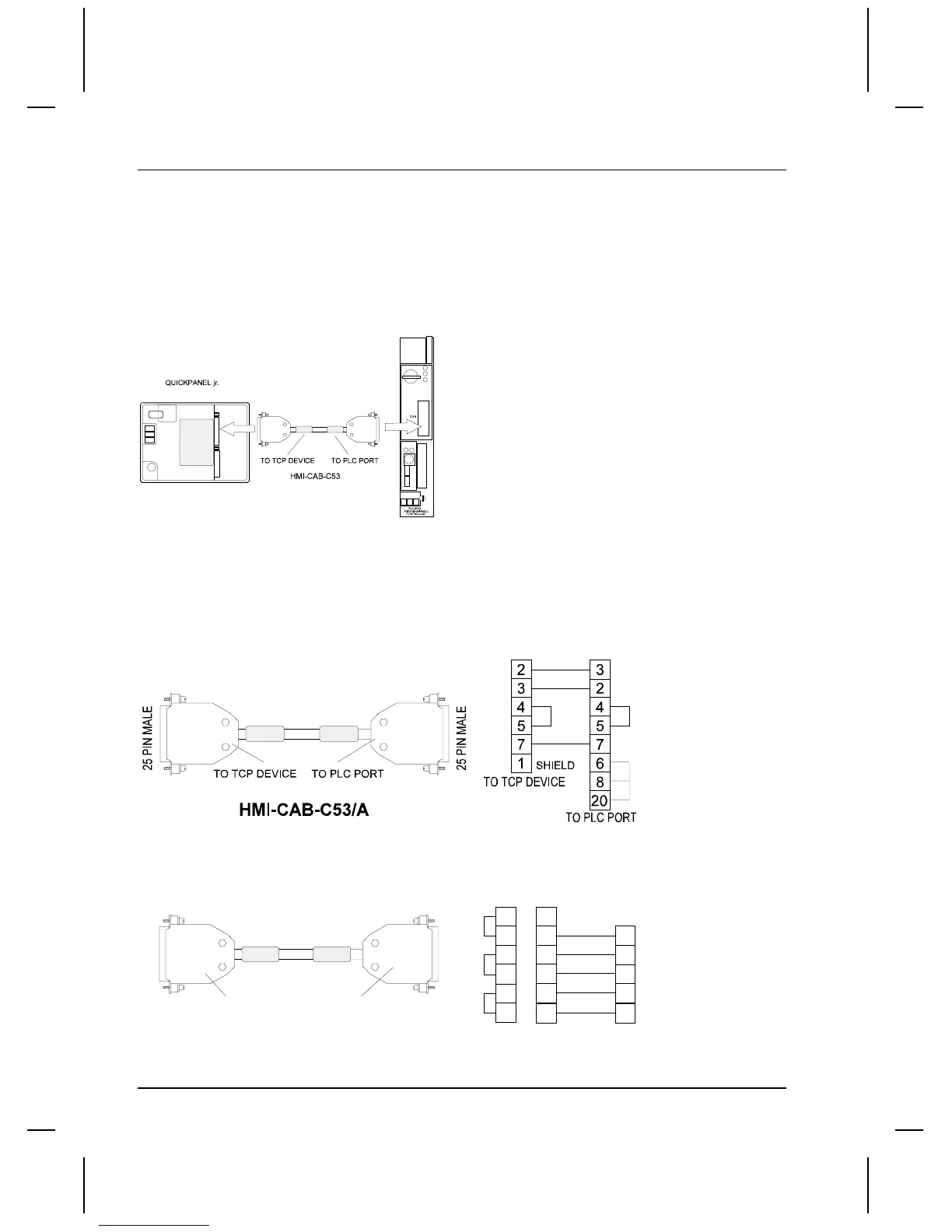

PLC-5 DF1 Single Point Connection
A single point connection is simply one target display connected directly to the Channel 0 port of a
single PLC 5.
To connect a target display to a PLC-5/30 Channel 0, use an HMI-CAB-C53 RS232 cable, connected
as shown below.
HMI-CAB-C53/A RS232 Cable
This cable is used to connect the target display to Channel 0 on an Allen-Bradley PLC-5/30 PLC.
A label is placed on each end of the cable to indicate which device should be connected to that end.
One of the labels will also indicate the cable part number so you can quickly verify you are using the
right cable for your application. You can make your own cable using the following wiring diagram.
HMI-CAB-C107 RS422 Cable
Use the following cable for RS422 connections to Channel 0.
HMI-CAB-C107/A
TO TCP DEVICE
TO PLC PORT
SHIELD
1
16
4
5
7
2
3
7
25 PIN MALE
TO PLC PORTTO TCP DEVICE
15
25 PIN MALE
10 14
11 16
18
19
21
22
TXD OUT -
TXD OUT+
RXD IN -
RXD IN +
GND
