• CANopen QUICKDESIGNER
A byte is 8 bits, therefore the addressing method is to use a period as the bit delimiter in the addressing
format. For example, I0.0 is bit 0 of Word 0, and I0.7 is bit 7 of Word 0.
Setup Network

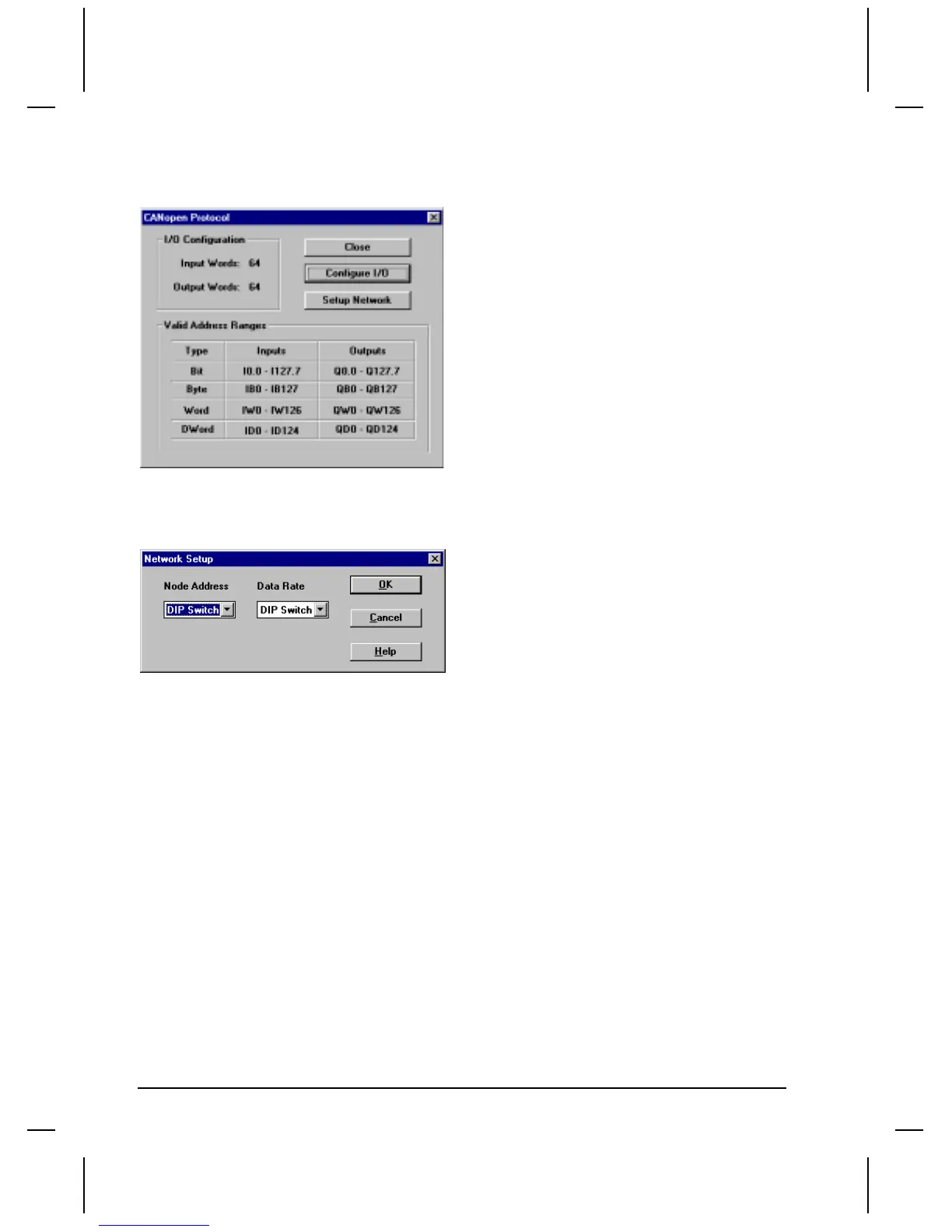

Click the Setup Network button to display the following dialog.
Select the Node Address from the list box. You can choose the Switch(s) on the CANopen module or
an address from the list. The switches are labeled Address Lo and Address High.
Select the Data Rate from the list box. You can choose to use the Switch on the CANopen module or
force the data rate to one of the selections in the list.
