182 •
••
• PLC Direct QUICKDESIGNER
DL450 Cable
The DL450 has a 6P6C Phone Jack supporting DirectNET. The DL450 also has a 25-pin DirectNET
connection that can be set to Master or Slave protocol. Make sure the communication parameters for
the DirectNET port are the same as the QuickPanel.
If you decide to use the 25-pin DirectNET connection, it must be configured as a DeviceNET Slave

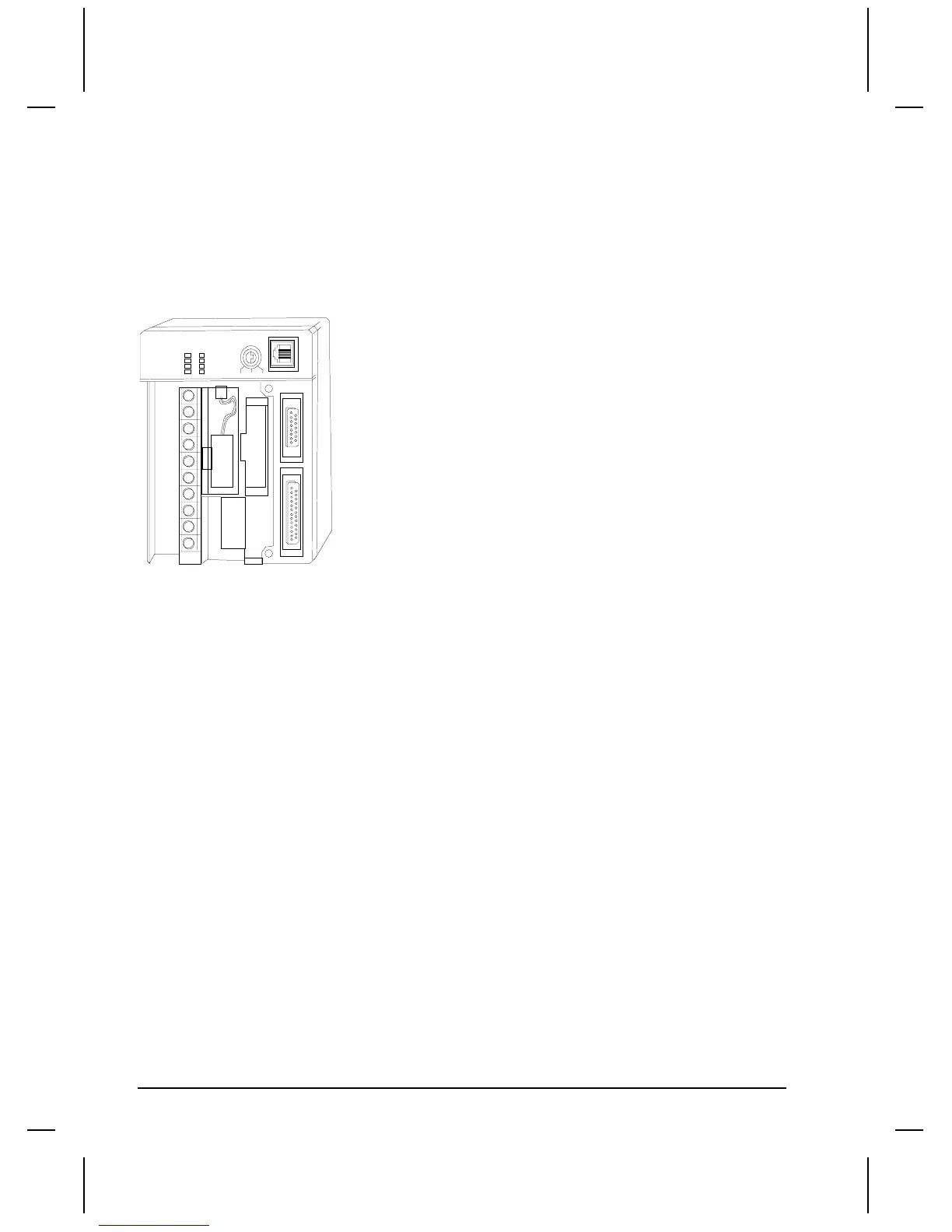

port. The DL450 is shown below.
PWR
CPU
DIAG
TXD
RUN
BATT
I/O
RXD
Koyo
Direct
LOGIC
405
D4-450 CPU
110/220VAC
RUN TERM STOP
Use the HMI-CAB-C53 Cable for connecting a QuickPanel to a Direct Logic DL450 bottom port (25-
pin logical Port A). (See the drawing in a previous section).

Allen-Bradley SLC 500 Specifications

General

Programming Software	RSLogix 500
Communication Ports	RS-232, DH-485, DH+
Power Supply	120/240V AC or 24V DC
Programming Languages	Ladder Logic
Operating Temperature	0°C to 60°C (32°F to 140°F)
Relative Humidity	5% to 95% (non-condensing)
Memory	4K to 64K words (depending on the processor)
