Connection to Data Highway Plus

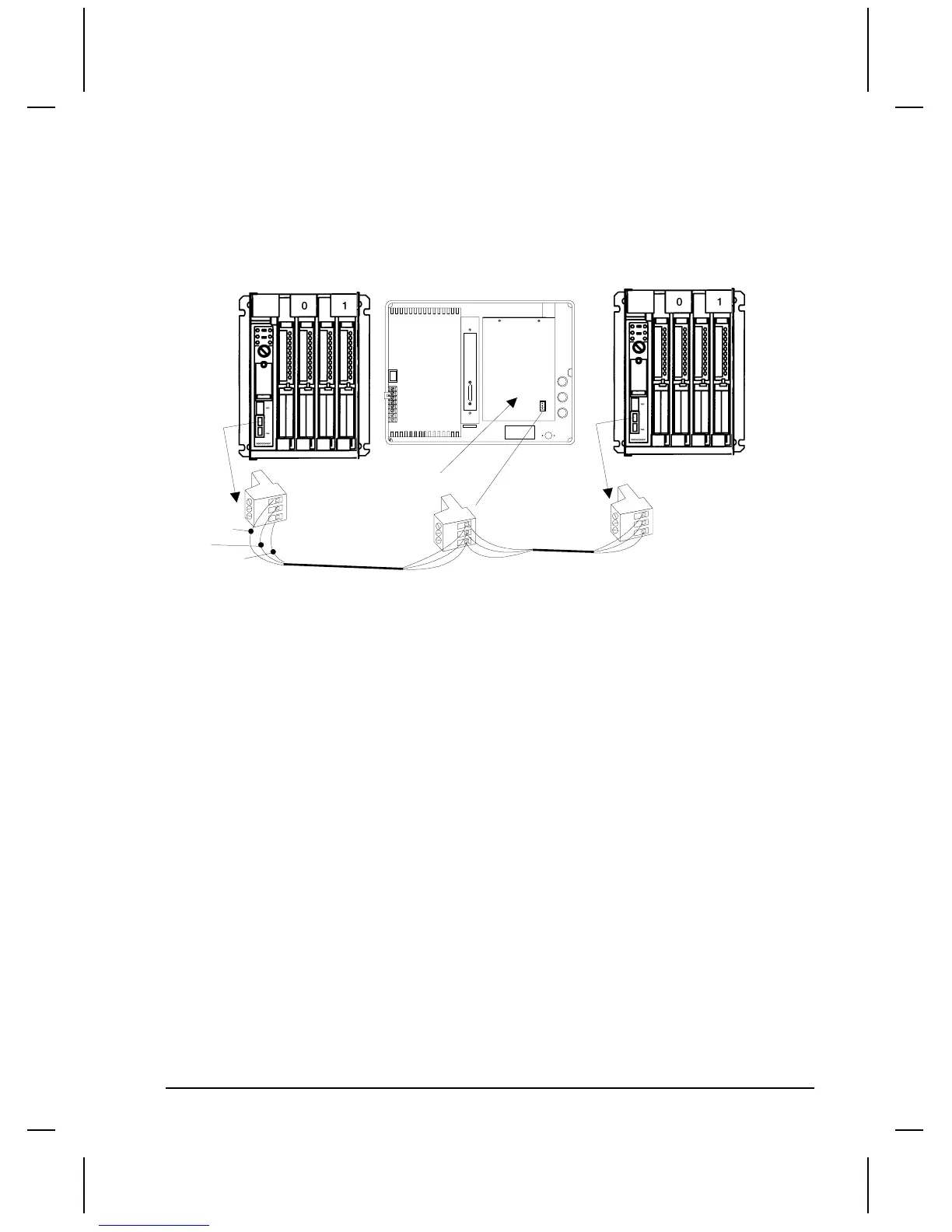

The following drawing shows a QUICKPANEL connected to two PLC-5 processors on a Data Highway
Plus network.
PROCESSOR 1
LINE 2 BLUE
LINE 1 CLEAR
SHIELD
PROCESSOR 2
CN1
QUICKPANEL
DATA
HIGHWAY
PLUS
MODULE
